Hardware Overview
The following sections provide illustrations and a brief overview of the Cisco 7401ASR router:
•
•
•
•
•

Front View

Figure 1-1
1
2
3
4
5
6
7
The Cisco 7401ASR router supports:
•
•
•
•
Cisco 7401ASR Installation and Configuration Guide
1-2
Front View, page 1-2
LEDs, page 1-3
Rear View, page 1-4
System Board, page 1-4
System Management Functions, page 1-5

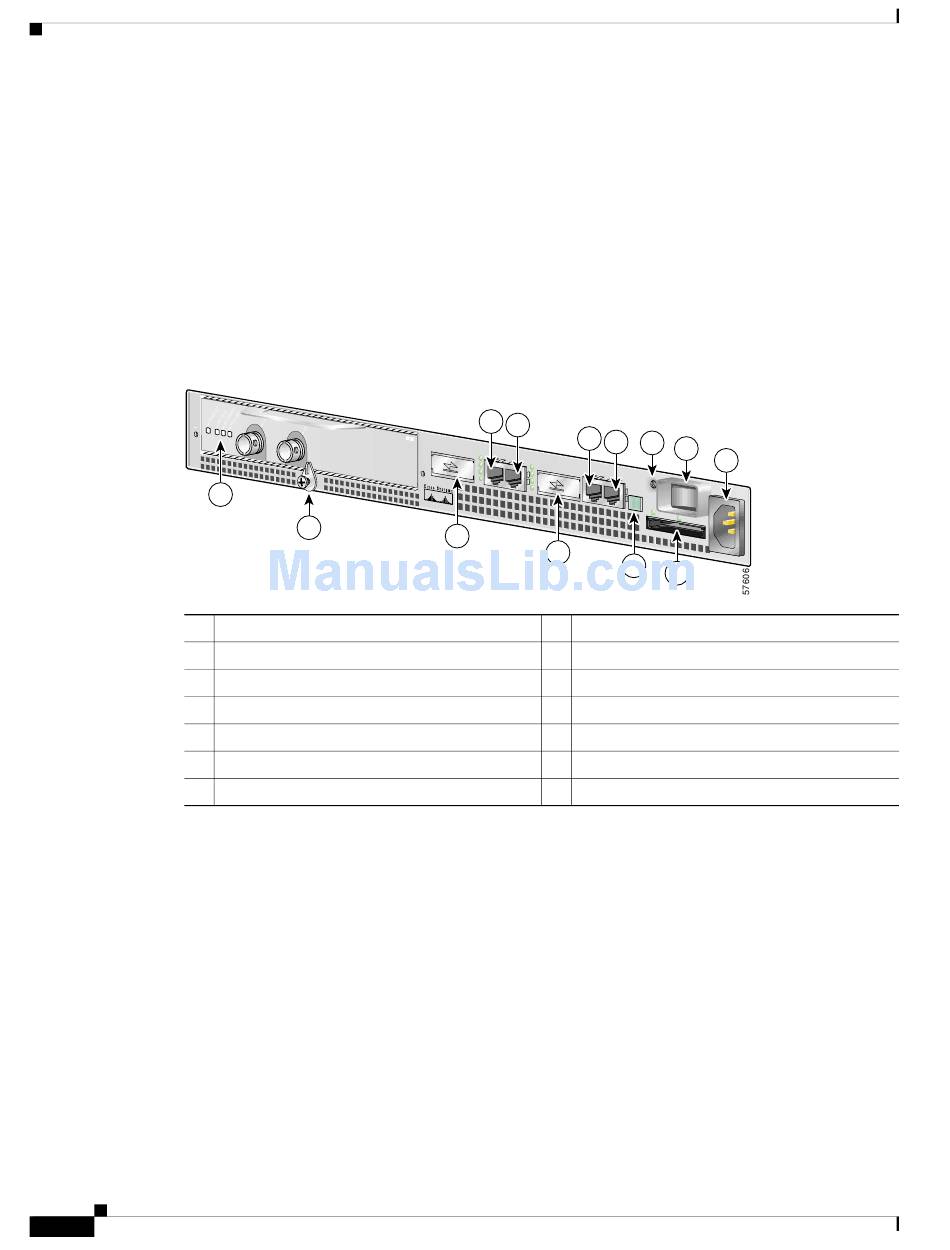

Cisco 7401ASR Router—Front View
EN HA NC ED
1
2
Port adapter slot (with installed port adapter) 8
Port adapter latch
GBIC port 0
FE port 0
FE port 1
GBIC port 1
Auxiliary port
Two native Ethernet interfaces—Each interface has two physical ports, a Gigabit Ethernet
(1000-Mbps) port that uses a Gigabit Interface Converter (GBIC) and a Fast Ethernet/Ethernet
(10/100-Mbps) port with an RJ-45 connector. Any two of the four ports are available at any one time.
Both 25-MHz and 50-MHz port adapter operation.
A 64- or 128-MB CompactFlash Disk.
A single power supply that is available in four options: AC, single –24V DC, single –48V DC, and
dual –48V DC.
4
5
AT M
3
6
Console port
9
Alarm port
10 Ground for ESD wrist strap banana jack
11 Power switch
12 CompactFlash Disk slot
13 Power connector
Chapter 1

Overview and Parts Installation

7
8
10
11
13
9
12
