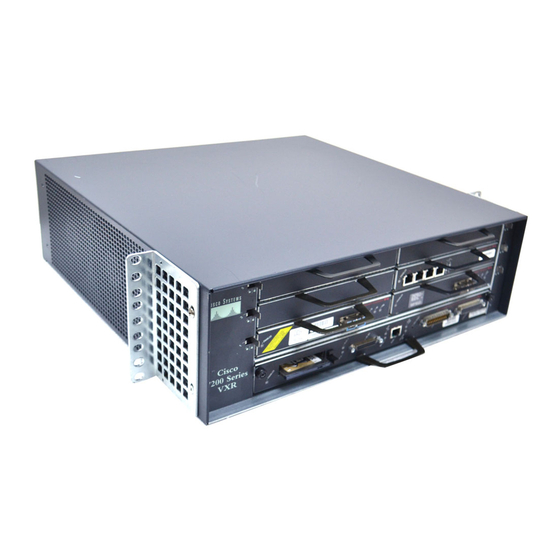

Cisco 7206VXR - VPN Bundle Router Supplementary Manual

7200 series port adapter hardware configuration guidelines
Hide thumbs Also See for 7206VXR - VPN Bundle Router:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Configuration Manual, Installation Manual
Cisco 7200 Series Port Adapter Hardware
Configuration Guidelines
Bandwidth Points Documentation
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
http://www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 527-0883
Text Part Number: OL-3875-10

Advertisement

Table of Contents
loading

Related Manuals for Cisco 7206VXR - VPN Bundle Router

Summary of Contents for Cisco 7206VXR - VPN Bundle Router

  • Page 1 Cisco 7200 Series Port Adapter Hardware Configuration Guidelines Bandwidth Points Documentation Americas Headquarters Cisco Systems, Inc. 170 West Tasman Drive San Jose, CA 95134-1706 http://www.cisco.com Tel: 408 526-4000 800 553-NETS (6387) Fax: 408 527-0883 Text Part Number: OL-3875-10...
  • Page 2 OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. CCVP, the Cisco logo, and the Cisco Square Bridge logo are trademarks of Cisco Systems, Inc.; Changing the Way We Work, Live, Play, and Learn is a service mark of Cisco Systems, Inc.;...

  • Page 3: Table Of Contents

    NPE-400, NPE-300, NSE-1 1-13 NPE-225, NPE-200, NPE-175, NPE-150 1-14 NPE-100 1-14 Bandwidth Table 1-14 Bandwidth Calculation Table 1-22 Messages for One Port Use of Specific Port Adapters and an I/O Controller 1-22 Cisco 7200 Series Port Adapter Hardware Configuration Guidelines OL-3875-11...
  • Page 4 Cisco IOS Software Memory Requirements Determining DRAM or SDRAM Required If the Router Has Only 32 MB of Memory (NPE-100, NPE-150, and NPE-200) SDRAM and DRAM Options for NPEs and the NSE Cisco 7200 Series Port Adapter Hardware Configuration Guidelines OL-3875-11...

  • Page 5: Preface

    This document includes brief explanations of Cisco 7200 series architecture, port adapter bandwidth allocations, port adapter slot numbering, and memory requirements. The Cisco 7206 and the Cisco 7206VXR can be used as router shelves in a Cisco AS5800 Universal Note Access Server.

  • Page 6: Other Documentation

    Obtaining Documentation, Obtaining Support, and Security Guidelines, page vii • Other Documentation Your router and the Cisco IOS software running on it contain extensive features and functionality, which are documented in the following resources: • For Cisco IOS software configuration information and support, refer to the modular configuration and modular command reference publications in the Cisco IOS software configuration documentation set that corresponds to the software release installed on your Cisco hardware.

  • Page 7: Obtaining Documentation, Obtaining Support, And Security Guidelines

    For information on obtaining documentation, obtaining support, providing documentation feedback, security guidelines, and also recommended aliases and general Cisco documents, see the monthly What’s New in Cisco Product Documentation, which also lists all new and revised technical documentation at: http://www.cisco.com/en/US/docs/general/whatsnew/whatsnew.html.
  • Page 8 Preface Obtaining Documentation, Obtaining Support, and Security Guidelines Cisco 7200 Series Port Adapter Hardware Configuration Guidelines viii OL-3875-11...
  • Page 9 Cisco 7200 Series Port Adapter Installation Requirements Cisco 7200 series routers (the 2-slot Cisco 7202, the 4-slot Cisco 7204 and Cisco 7204VXR, and the 6-slot Cisco 7206 and Cisco 7206VXR) support multiprotocol, multimedia routing and bridging with a wide variety of protocols and media types. Network interfaces reside on port adapters that provide a connection between the routers’...

  • Page 10: Chassis Overview-Front View

    – Chassis Overview—Front View The front of Cisco 7200 series routers provides access to an input/output (I/O) controller and up to two, four, or six network interface port adapters. The I/O controller has a local console port for connecting a data terminal (or data terminal equipment [DTE]) and an auxiliary port for connecting a modem (or other data communications equipment [DCE]) or other devices for configuring and managing the router;...

  • Page 11: C H A P T E R 1 Cisco 7200 Series Port Adapter Installation Requirements

    The port adapters installed in Cisco 7200 series routers are of the same type as those installed in other Cisco 7000 family routers. Cisco 7200 series routers support the online insertion and removal (OIR) of installed port adapters.

  • Page 12: Configuration Guidelines And Requirements

    PCI buses (left and right) dedicated to the port adapters. The Port Adapter Jacket Card, for use in the Cisco 7200 VXR routers and only with the NPE-G1 or NPE-G2, installs in the I/O controller slot on PCI bus mb0. Because the Port Adapter Jacket Card accepts only one port adapter, and the PCI bus provides another 600 bandwidth points, this bus cannot be oversubscribed because no port adapter is assigned more than 600 bandwidth points.

  • Page 13: Port Adapter Slot Numbering

    Figure 1-4 shows the port adapter slot numbering for the Cisco 7200 VXR routers with the Port Adapter Jacket Card installed. For the Cisco 7202, Cisco 7204, and Cisco 7206 routers, port adapters in odd-numbered slots connect to PCI bus mb1 (left bus). Port adapters in even-numbered slots connect to PCI bus mb2 (right bus). The I/O controller connects to PCI bus mb0 (left bus), port adapter slot 0.

  • Page 14: Guidelines For Installation

    The Port Adapter Jacket Card installs into the I/O controller slot on the third PCI bus, mb0. The Port Adapter Jacket Card is designated slot 0, and the port adapter installed in it is designated port adapter slot 7 on the Cisco 7206 VXR router, and slot 5 on the Cisco 7204 VXR router. Guidelines for Installation Cisco 7200 series routers have a finite data-carrying capacity, referred to as bandwidth, that affects the port adapter distribution in the chassis, as well as the number and types of port adapters you can install.
  • Page 15 Chapter 2, “Memory Requirements.” adapters that can be installed? 1. You can request a Cisco.com login ID. To become a registered user, refer to Registration at http://tools.cisco.com/RPF/register/register.do. Cisco 7200 Series Port Adapter Hardware Configuration Guidelines...

  • Page 16: Installation Requirements Based On The Npe Or Nse Installed

    1-22, to record your requirements. Do not calculate bandwidth points for an I/O controller if it is installed in the Cisco 7200 VXR Note router with an NPE-G1 or NPE-G2. With the NPE-G1 or NPE-G2, I/O controllers do not use bandwidth or bandwidth points.

  • Page 17: Sample Bandwidth Configuration For The Npe-G1 Or Npe-G2

    Sample Bandwidth Configuration for the NPE-G1 or NPE-G2 This sample configuration is for a Cisco 7200 VXR chassis with an NPE-G1 or NPE-G2 installed. The maximum points allowed for each PCI bus is 600 points. When any I/O controller is installed with the NPE-G1 or NPE-G2, no bandwidth points are used.

  • Page 18: Sample Bandwidth Configuration For The Npe-400, Npe-300, And Nse-1

    Dual-width port adapters occupy two horizontally aligned port adapter slots when installed in a Cisco 7200 series router; however, dual-width port adapters do not use both PCI bus mb1 (left bus) and PCI bus mb2 (right bus) when operating in the router.

  • Page 19: Npe-225, Npe-200, Npe-175, Npe-150, And Npe-100 Bandwidth Calculation And Configuration Instructions

    Dual-width port adapters occupy two horizontally aligned port adapter slots when installed in a Cisco 7200 series router; however, dual-width port adapters do not use both PCI bus mb1 (left bus) and PCI bus mb2 (right bus) when operating in the router.

  • Page 20: Sample Bandwidth Configuration For The Npe-225, Npe-200, Npe-175, And Npe-150

    Installation Requirements Based on the NPE or NSE Installed Sample Bandwidth Configuration for the NPE-225, NPE-200, NPE-175, and NPE-150 The following sample configurations are for a Cisco 7200 series router with an I/O controller and NPE-225 installed. The maximum points allowed is 800 points per chassis.

  • Page 21: Bandwidth And Bandwidth Point Requirements

    600 bandwidth points. PCI bus mb0 with a Port Adapter Jacket Card installed is designated as port adapter slot 5 in a Cisco 7204VXR router, or slot 7 in a Cisco 7206VXR router. NPE-G1 or NPE-G2 •...

  • Page 22: Npe-225, Npe-200, Npe-175, Npe-150

    Distribute port adapter bandwidth points evenly across both left and right system slots (buses). • Bandwidth Table Use the table below to determine the bandwidth points for your port adapter and I/O controller. Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-14 OL-3875-11...
  • Page 23 0.15 MB 0.36 MB Connection (ESCON) channel 1-port GB fiber channel interface PA-FC-1G High 3.1 MB — Dynamic Packet Transport Multimode fiber PA-SRP-OC12MM High 150 + 150 0.40 MB — Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-15 OL-3875-11...
  • Page 24 I/O controller 1 port use of C7200-I/O-2FE/E High 0.10 MB — 2-port Fast Ethernet/Ethernet I/O controller 1-port Fast Ethernet I/O C7200-I/O-FE High 0.10 MB — controller (2 connectors: RJ-45 and MII) Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-16 OL-3875-11...
  • Page 25 6.40 MB With 128 interfaces configured for encapsulation 1-port multichannel E1 STM1 PA-MC-STM-1SMI High 10 MB — 1-port multichannel E1 STM1 PA-MC-STM-1MM High 10 MB — Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-17 OL-3875-11...
  • Page 26 Cisco 7200 VXR chassis with an NPE-G1 or NPE-G2 4- and 8-port Basic Rate Interface PA-4B-U 0.40 MB 1.20 MB (BRI) ISDN 8 BRI ISDN PA-8B-T 0.40 MB 1.20 MB Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-18 OL-3875-11...
  • Page 27 Data encryption service adapter SA-Encrypt Medium 0.03 MB — Compression service adapter SA-Comp/1 0.10 MB — SA-Comp/4 Integrated Service Adapter SA-ISA/DES High 3 MB — SA-ISA/3DES High 3 MB — Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-19 OL-3875-11...
  • Page 28 10 MB PA-MCX-8TE1+ 10 MB — Single-port low capacity PA-VXA-1TE1-24+ 2 MB — PA-VXA-1TE1-30+ 2 MB — 2-port moderate capacity PA-VXB-2TE1 2 MB — 2-port high capacity PA-VXC-2TE1 2 MB — Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-20 OL-3875-11...
  • Page 29 Cisco ISA Service Adapter and Cisco ISM service adapter, as well as information on specific behaviors of these products when used with each other, and specific commands to use to enable or disable them.

  • Page 30: Bandwidth Calculation Table

    Cisco IOS releases: Cisco IOS Release 12.3(9), Cisco IOS Release 12.1(24)E, Cisco IOS Release 12.2(25)S, and Cisco IOS Release 12.0(29)S.
  • Page 31 380 bandwidth points. This configuration is within the PCI bus capacity and is supported under the above condition. Please refer to the following document "Cisco 7200 Series Port Adapter Hardware Configuration Guidelines" on Cisco.com <http://www.cisco.com> for c7200 bandwidth points oversubscription and usage guidelines.

  • Page 32: Npe-G1 Or Npe-G2

    400 bandwidth points. This configuration is within the PCI bus capacity and is supported. Please refer to the following document "Cisco 7200 Series Port Adapter Hardware Configuration Guidelines" on Cisco.com <http://www.cisco.com> for c7200 bandwidth points oversubscription and usage guidelines.

  • Page 33: Error Messages

    The system prompts you with error messages if your port adapter configuration exceeds the guidelines in this document. Following are examples of the error messages: For a Cisco 7200 series router or Cisco 7200 VXR router that has an NPE-225, NPE-200, NPE-175, •...
  • Page 34 Chapter 1 Cisco 7200 Series Port Adapter Installation Requirements Error Messages Cisco 7200 Series Port Adapter Hardware Configuration Guidelines 1-26 OL-3875-11...

  • Page 35: Chapter 2 Memory Requirements

    Depending on the circumstances, you might need to determine the amount of main memory (DRAM or SDRAM) required by your Cisco 7200 series router to support a combination of installed port adapter types and a specific Cisco IOS software subset image.

  • Page 36: Determining Port Adapter And System Memory Requirements

    Question Answer What determines the amount of SDRAM or The DRAM or SDRAM required by a Cisco 7200 series router to support a DRAM memory required? combination of installed port adapter types and a Cisco IOS software subset image is influenced by such variables as the features in the software you plan to use and the size of your network.
  • Page 37 1. Specific to Cisco IOS Release 11.1CA. 2. Specific to Cisco IOS Release 12.0T. 3. Specific to Cisco IOS Release 11.1CA, Release 11.1CC, Release 11.2P, Release 11.3T, Release 11.3AA, and Release 12.0 . 4. Additional processor memory required for ISDN functionality.

  • Page 38: Cisco Ios Software Memory Requirements

    (listed under specific Cisco IOS releases) for memory requirements, Cisco IOS Software Memory Requirements Cisco IOS memory requirements are listed in the Cisco IOS Release Notes. The SDRAM column provides processor memory information. Flash memory recommendations are also included. For Cisco IOS Release Notes, see the documentation page for Cisco IOS software configuration.

  • Page 39: Determining Dram Or Sdram Required If The Router

    Cisco 7200 series router has 32 MB of DRAM or SDRAM. If your Cisco 7200 series router has 64 MB or more of DRAM or SDRAM installed, you have enough memory to support any combination of installed port adapter types and Cisco IOS software subset images.

  • Page 40: Sdram And Dram Options For Npes And The Nse

    Step 3 This completes the procedure for determining the minimum amount of DRAM or SDRAM required by a Cisco 7200 series router to support a combination of installed port adapters and the Cisco IOS software subset image. For a sample configuration of a Cisco 7206 router that has an installed NPE-150, an I/O controller with the Fast Ethernet port, and Cisco IOS software subset images for Cisco IOS Release 11.1CA and Cisco...
  • Page 41 256 MB 240 MB 16 MB Table 2-10 SDRAM Options for the NPE-175 SDRAM Options Processor Memory I/O Memory 64 MB 56 MB 8 MB 128 MB 116 MB 12 MB Cisco 7200 Series Port Adapter Hardware Configuration Guidelines OL-3875-11...
  • Page 42 1. The I/O memory for the NPE-150 DRAM options includes 1 MB of packet SRAM. 2. The I/O memory for the NPE-200 DRAM options includes 4 MB of packet SRAM. 3. For Cisco 7206 router shelf memory requirements, refer to the Cisco AS5800 Universal Access Server documentation at http://www.cisco.com/univercd/cc/td/doc/product/access/acs_serv/as5800/index.htm.
