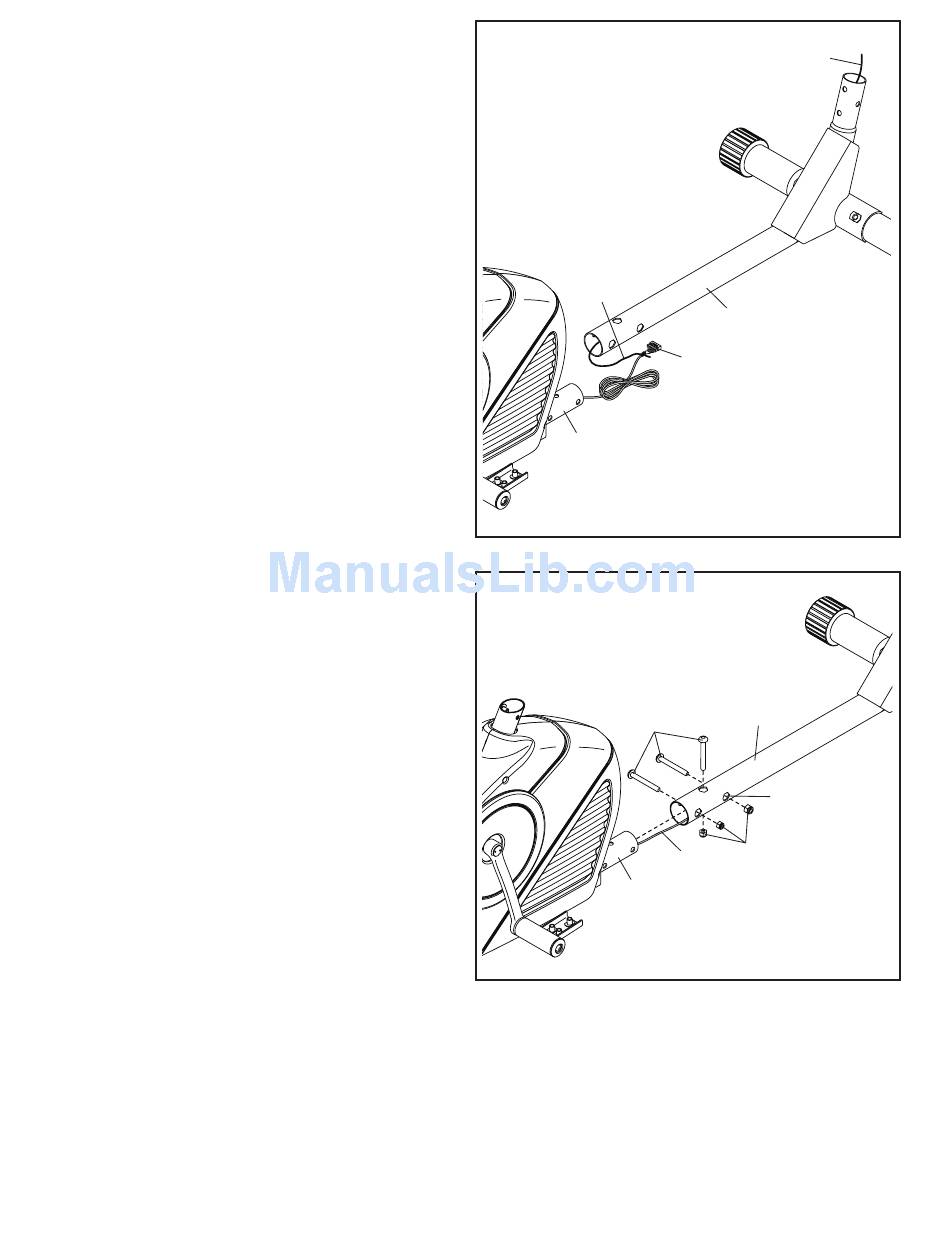

3. Set the Front Frame (23) near the Rear Frame
(1) as shown.
Locate the wire tie in the Front Frame (23). Tie
the wire tie to the Main Wire Harness (45) in the
Rear Frame (1). Then, pull the upper end of the
wire tie until the Main Wire Harness is routed
through the Front Frame.
4. Tip: Avoid pinching the Main Wire Harness
(45). Slide the Front Frame (23) onto the Rear
Frame (1). Attach the Front Frame with three
M10 x 60mm Bolts (61) and three M10 Locknuts
(48); make sure that the Locknuts are in the
hexagonal holes. Do not tighten the Bolts yet.
See steps 1 and 2. Make sure that the ends of
the Rear Stabilizer (6) and the Front Stabilizer
(2) are touching the floor.
Tighten the three M10 x 60mm Bolts (61).
