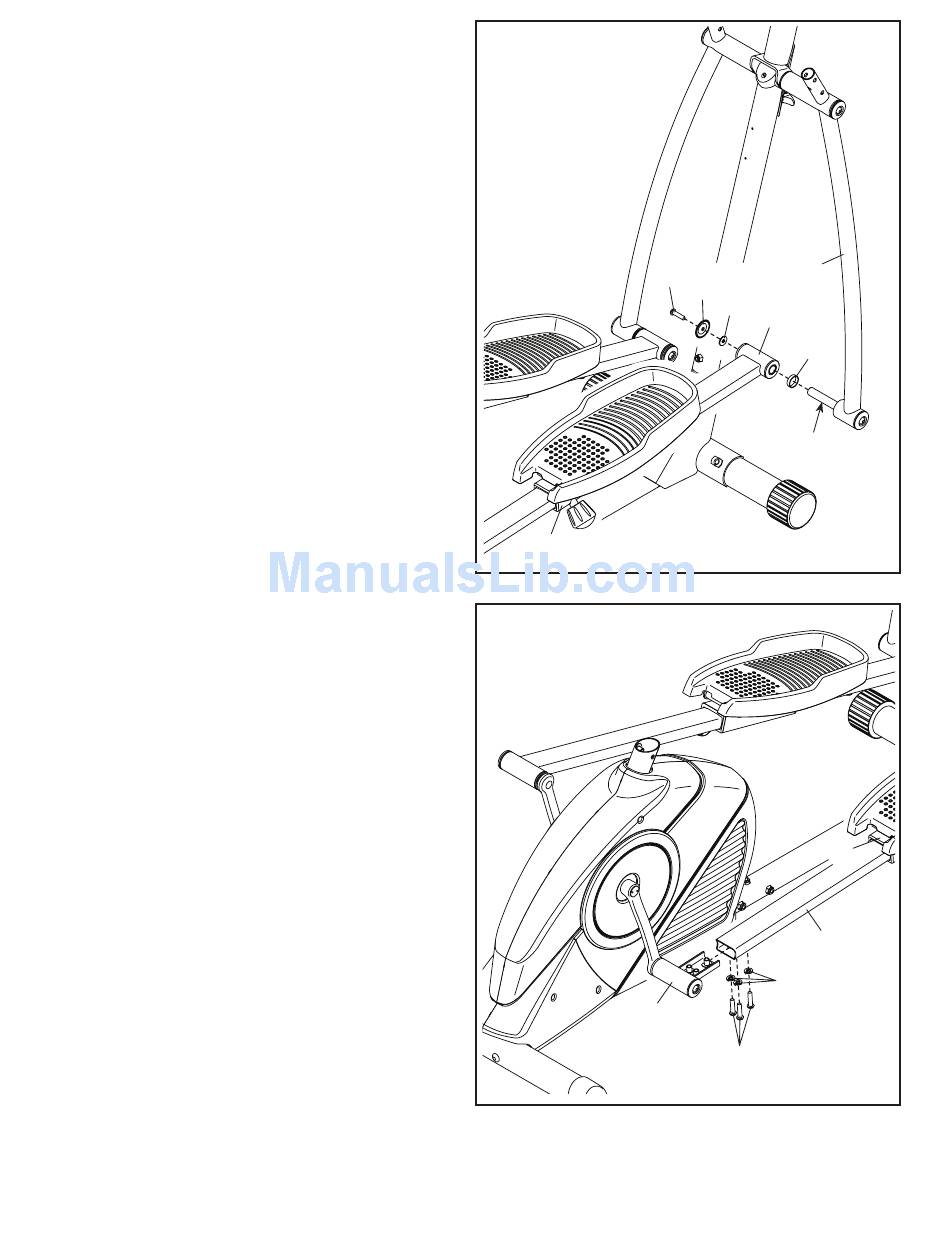

11. Apply a generous amount of grease to the axle
on the Right Upper Body Leg (94).
Next, slide a Spacer (86) and the Right Pedal
Leg (71) with the Right Pedal Carriage (64) onto
the axle.
Then, tighten an M8 x 20mm Screw (34), a Pivot
Cover (90), and an M8 Large Washer (54) into
the axle.
Repeat this step on the other side of the
hybrid trainer.
12. Slide the Right Pedal Leg (71) onto the Right
Pedal Leg Bracket (75). Attach the Right Pedal
Leg with three M8 x 20mm Screws (34) and
three M8 Split Washers (42). Start all three
Screws, and then tighten them.
Repeat this step on the other side of the
hybrid trainer.
See step 6. Tighten the three M10 x 60mm
Bolts (61).
11
64
12
75
11
94
34
90
54
71
86
Grease
64
71
42
34
