Operation

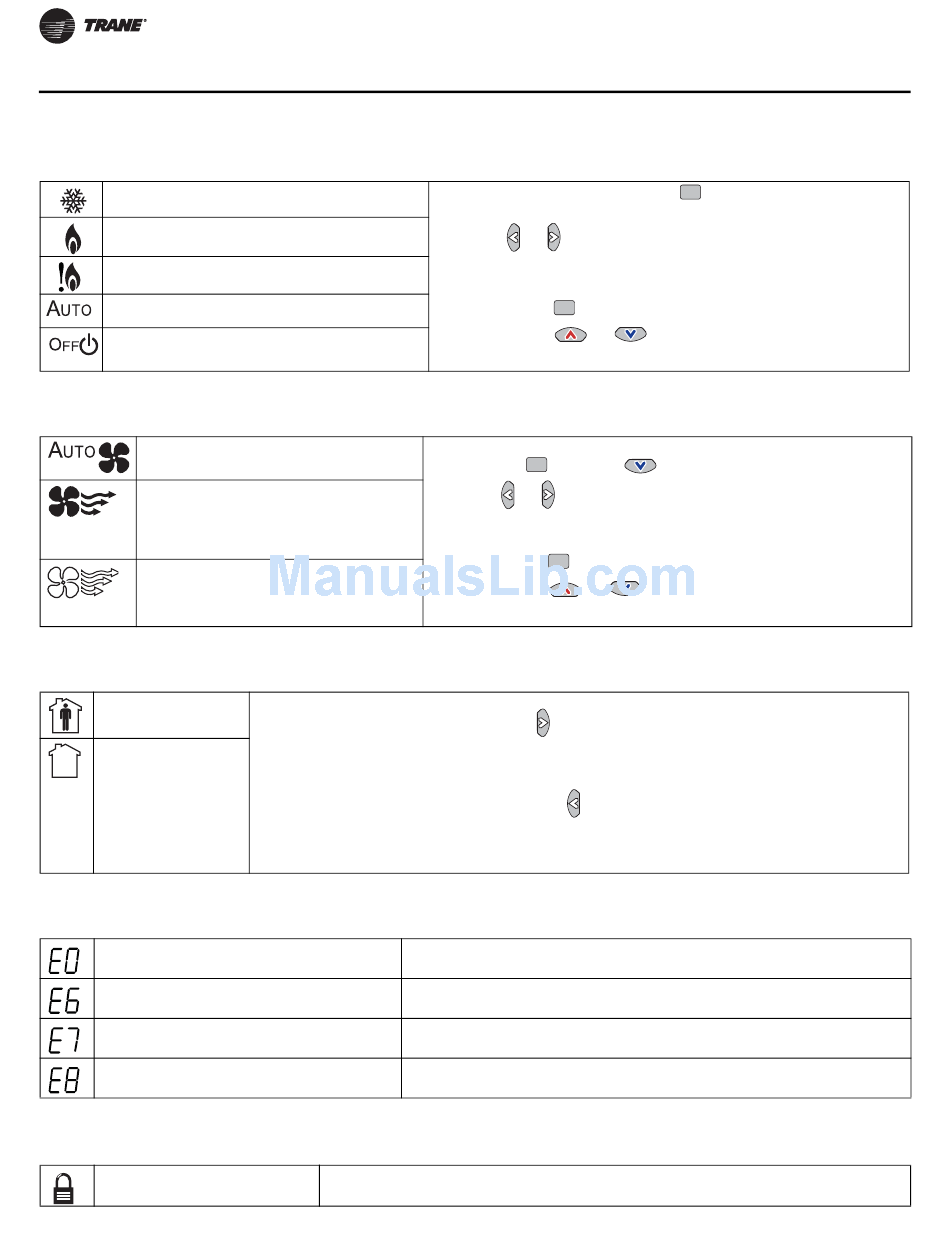

Changing System Settings

Indicates that the system is in cooling mode.
Indicates that the system is in heating mode.
Indicates emergency heat. It is used by facility
operators or service technicians only.
Indicates that the system automatically switches
between heating and cooling as needed.
Indicates that the system is Off.

Changing Fan Settings

Indicates that the fan will operate as needed
to reach the selected temperature.
Indicates that the fan setting is On. The
number of arrows indicates fan speed
(3: high, 2: medium, 1: low).
The example shown indicates a fan on high
speed. Not all systems offer all three speeds.
Indicates fan is Off.

Requesting Temporary Occupancy

Select to request
occupancy
Select to cancel
occupancy

Error codes

Main processor error
Software version conflict
Communication error
Temperature input outside valid operating range
(32ºF–122ºF [0ºC–50ºC])

Lock Symbol

Indicates that the keypad is locked
28
1. From the home screen, press
2. Press
3. When the symbol for the desired setting appears, confirm
1. From the home screen, activate the fan setting menu by
2. Press
3. When the symbol for the desired setting appears, confirm your
• If you need heating or cooling after normal business hours, you can "request"
temporary occupancy by pressing
symbol remains on the screen and the unoccupied symbol disappears. After 30
seconds, the unoccupied symbol will re-appear. The system will remain in occupied
mode for a pre-determined period.
• To cancel temporary occupancy, press
symbol will remain on the screen and the occupied symbol will disappear. After 30
seconds the occupied symbol will re-appear. (Cancellation can be made at any time
during the temporary occupancy period.)
Replace sensor.
Replace sensor.
Replace sensor.
Replace sensor if space temperature is within valid range.
The lock symbol appears if you try to adjust a setting that cannot be changed.
appears.
or to choose the desired system setting.
your choice by
• Pressing (the home screen will appear), or
• Pressing or
• Waiting 5 seconds.
pressing and then
or to choose the desired fan setting.
choice by
• Pressing (the home screen will appear), or
• Pressing or
• Waiting 5 seconds.
and holding it for 2 seconds. The occupied
and hold for 2 seconds. The unoccupied
. The system setting menu
(the next menu will appear), or
.
(the next menu will appear), or
BAS-SVX10C-EN
