Pro-Form XP200 User Manual page 11

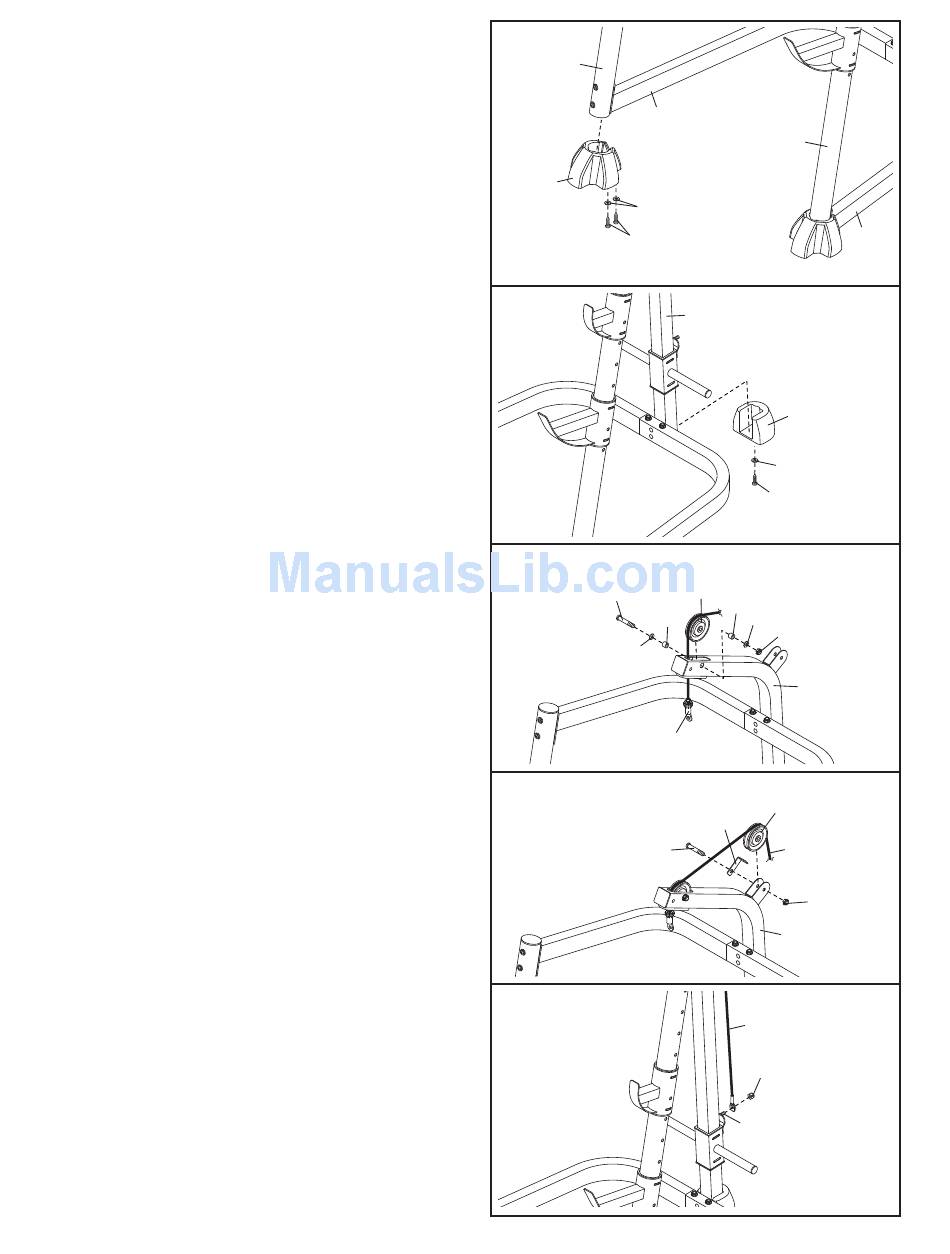

19. Slide an Upright Foot (16) onto the Right Upright
(55) and Right Base (47). Attach the Foot to the
Base with two M4 x 25mm Self-tapping Screws
(42) and two M5 Washers (39).
Repeat this step with the Left Upright (4) and
the Left Base (46).
20. Attach the Rear Foot (17) to the Rear Upright
(33) with an M4 x 12mm Self-tapping Screw (76)
and an M5 Washer (39).
21. Route the Cable (64) up through the Rear Upright
(33) and over a Pulley (60). Attach the Pulley
inside the Upright with an M10 x 68mm Bolt (63),
two M10 Washers (71), two 16mm x 13mm
Spacers (59), and an M10 Nylon Locknut (74).
22. Route the Cable (64) over a Pulley (60). Attach
the Pulley and a Cable Trap (75) to the Rear
Upright (33) with an M10 x 49mm Bolt (65) and
an M10 Nylon Locknut (74). Make sure that the
Cable Trap is oriented to hold the Cable in the
groove of the Pulley.
23. Attach the Cable (64) to the M10 x 20mm Bolt
(66) with an M10 Nylon Locknut (74).
24. Make sure that all parts are properly tightened.
The use of the remaining parts will be explained
in ADJUSTMENTS starting on the next page.
19
55
16
39
42
20
21
63
71
22
23
11
47
4
33
17
39
76
60
59
71
59
74
33
64
60
75
64
65
74
33
64
74
66
46
