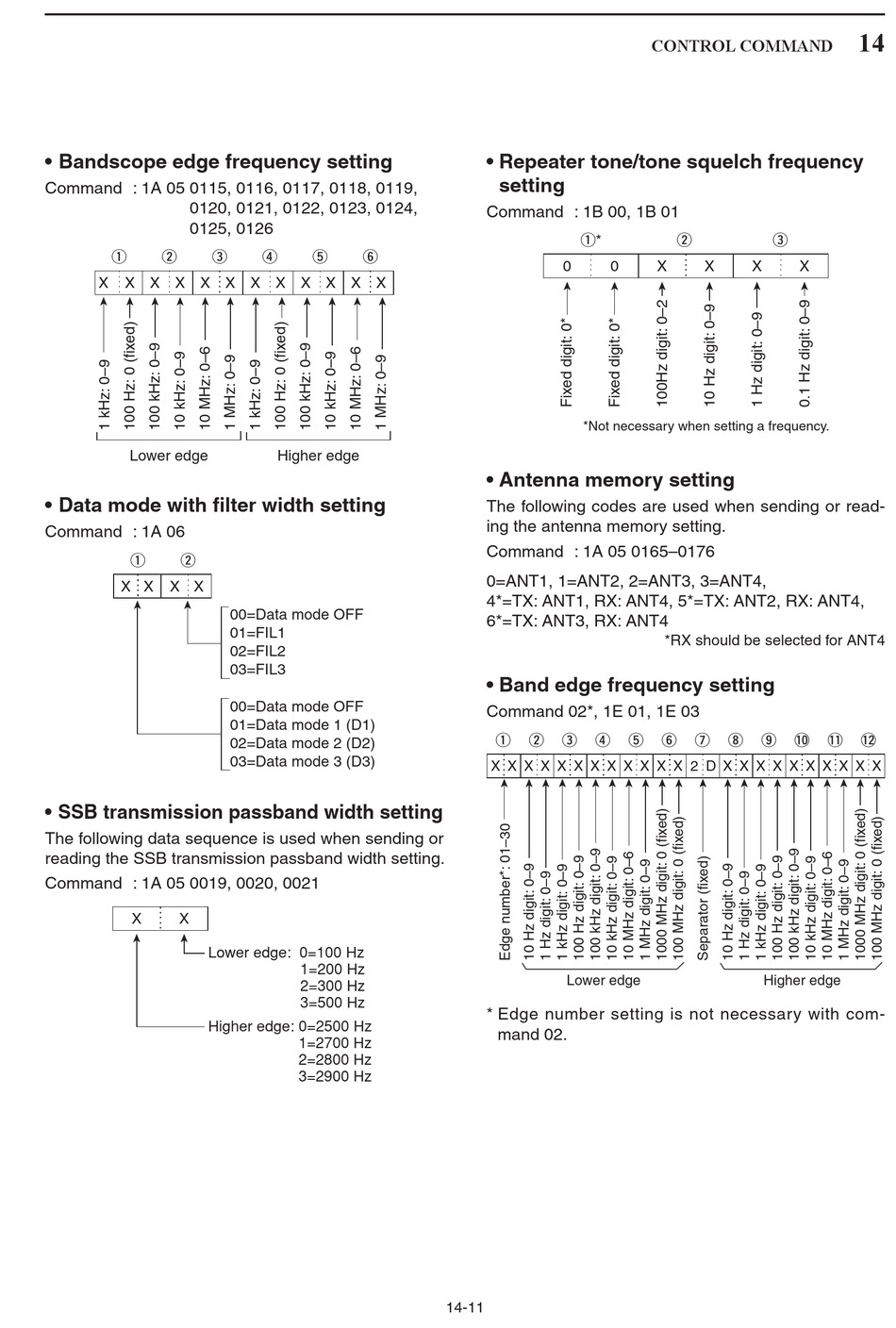

Icom IC-7700 Instruction Manual page 199

• Bandscope edge frequency setting
Command : 1A 05 0115, 0116, 0117, 0118, 0119,
0120, 0121, 0122, 0123, 0124,
0125, 0126
q w e
X X X X X X X X X X X X
Lower edge
• Data mode with filter width setting
Command : 1A 06
q w
X X X X
• SSB transmission passband width setting
The following data sequence is used when sending or
reading the SSB transmission passband width setting.
Command : 1A 05 0019, 0020, 0021
X X
Lower edge: 0=100 Hz
Higher edge: 0=2500 Hz
r t y
Higher edge
00=Data mode OFF
01=FIL1
02=FIL2
03=FIL3
00=Data mode OFF
01=Data mode 1 (D1)
02=Data mode 2 (D2)
03=Data mode 3 (D3)
1=200 Hz
2=300 Hz
3=500 Hz
1=2700 Hz
2=2800 Hz
3=2900 Hz
• Repeater tone/tone squelch frequency
setting
Command : 1B 00, 1B 01
q*
0 0
*Not necessary when setting a frequency.
• Antenna memory setting
The following codes are used when sending or read-
ing the antenna memory setting.
Command : 1A 05 0165–0176
0=ANT1, 1=ANT2, 2=ANT3, 3=ANT4,
4*=TX: ANT1, RX: ANT4, 5*=TX: ANT2, RX: ANT4,
6*=TX: ANT3, RX: ANT4
• Band edge frequency setting
Command 02*, 1E 01, 1E 03
q w e r
X X X X X X X X X X X X 2 D X X X X X X X X X X
Lower edge
* Edge number setting is not necessary with com-
mand 02.
14-11
CONTROL COMMAND
w e
X X X
*RX should be selected for ANT4
t y u i o !0
Higher edge
14
X
!1 !2
