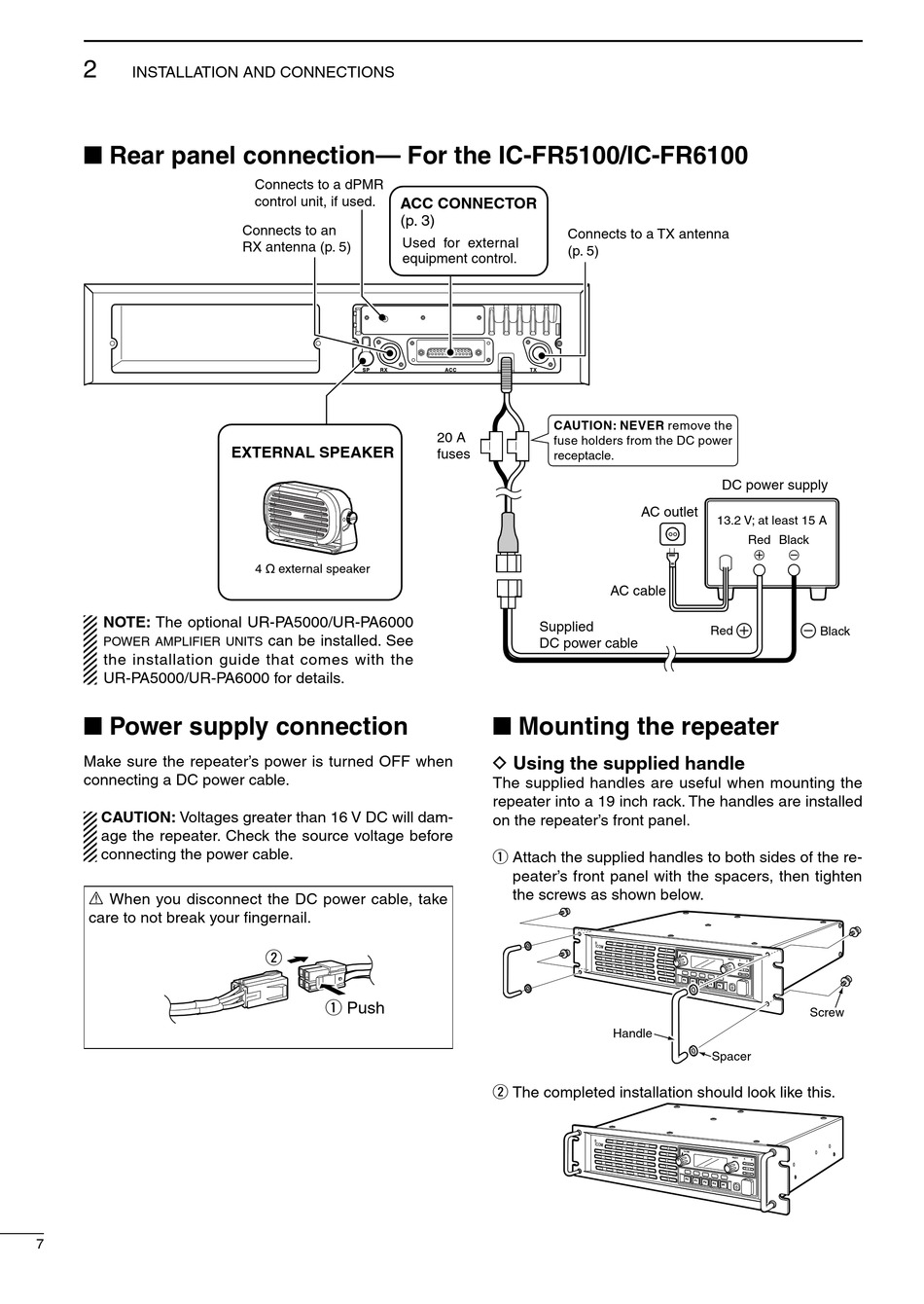

INSTALLATION AND CONNECTIONS
■ Rear panel connection— For the IC-FR5100/IC-FR6100
NOTE: The optional UR-PA5000/UR-PA6000
power amplifier units
the installation guide that comes with the
UR-PA5000/UR-PA6000 for details.

■ Power supply connection

Make sure the repeater's power is turned OFF when
connecting a DC power cable.
CAUTION: Voltages greater than 16 V DC will dam-
age the repeater. Check the source voltage before
connecting the power cable.
R When you disconnect the DC power cable, take
care to not break your fingernail.
7
Connects to a dPMR
control unit, if used.
ACC CONNECTOR
(p. 3)
Connects to an
Used for external
RX antenna (p. 5)
equipment control.
EXTERNAL SPEAKER
4 ˘ external speaker
can be installed. See
w
q Push
Connects to a TX antenna
(p. 5)
CAUTION: NEVER remove the
20 A
fuse holders from the DC power
fuses
receptacle.
AC cable
Supplied
DC power cable

■ Mounting the repeater

D Using the supplied handle

The supplied handles are useful when mounting the
repeater into a 19 inch rack. The handles are installed
on the repeater's front panel.
q Attach the supplied handles to both sides of the re-
peater's front panel with the spacers, then tighten
the screws as shown below.
w The completed installation should look like this.
DC power supply
AC outlet
13.2 V; at least 15 A
Red Black
+
Red
P 0
P 1
P 2
P 3
P 4
Handle
Spacer
P 0
P 1
P 2
P 3
P 4
_
Black
Screw
