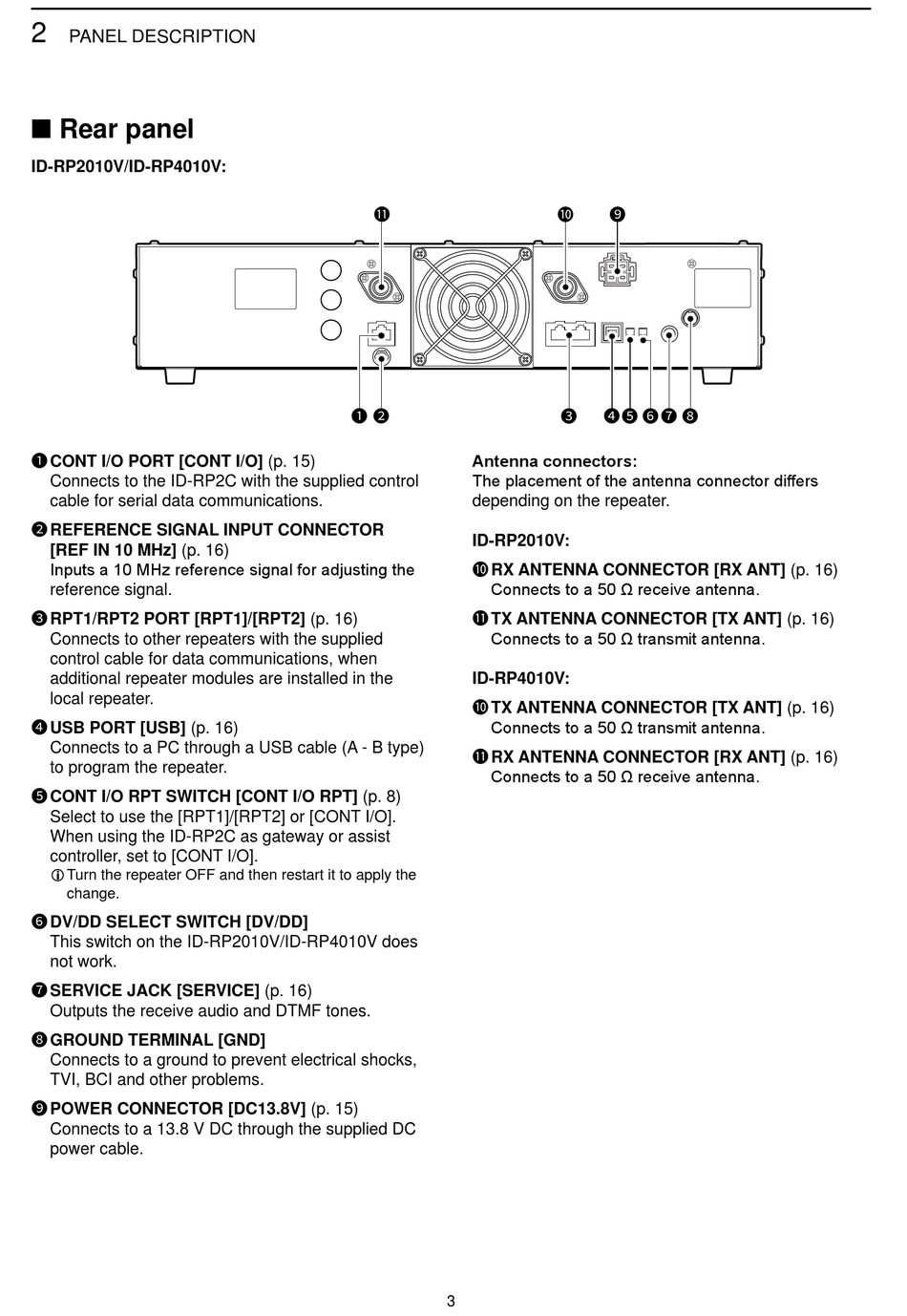

PANEL DESCRIPTION
■ Rear panel
ID-RP2010V/ID-RP4010V:
1 CONT I/O PORT [CONT I/O] (p. 15)
Connects to the ID-RP2C with the supplied control
cable for serial data communications.
2 REFERENCE SIGNAL INPUT CONNECTOR
[REF IN 10 MHz] (p. 16)
Inputs a 10 MHz reference signal for adjusting the
reference signal.
3 RPT1/RPT2 PORT [RPT1]/[RPT2] (p. 16)
Connects to other repeaters with the supplied
control cable for data communications, when
additional repeater modules are installed in the
local repeater.
4 USB PORT [USB] (p. 16)
Connects to a PC through a USB cable (A - B type)
to program the repeater.
5 CONT I/O RPT SWITCH [CONT I/O RPT] (p. 8)
Select to use the [RPT1]/[RPT2] or [CONT I/O].
When using the ID-RP2C as gateway or assist
controller, set to [CONT I/O].
L Turn the repeater OFF and then restart it to apply the
change.
6 DV/DD SELECT SWITCH [DV/DD]
This switch on the ID-RP2010V/ID-RP4010V does
not work.
7 SERVICE JACK [SERVICE] (p. 16)
Outputs the receive audio and DTMF tones.
8 GROUND TERMINAL [GND]
Connects to a ground to prevent electrical shocks,
TVI, BCI and other problems.
9 POWER CONNECTOR [DC13.8V] (p. 15)
Connects to a 13.8 V DC through the supplied DC
power cable.
11
1
2
Antenna connectors:
The placement of the antenna connector differs
depending on the repeater.
ID-RP2010V:
10 RX ANTENNA CONNECTOR [RX ANT] (p. 16)
Connects to a 50 Ω receive antenna.
11 TX ANTENNA CONNECTOR [TX ANT] (p. 16)
Connects to a 50 Ω transmit antenna.
ID-RP4010V:
10 TX ANTENNA CONNECTOR [TX ANT] (p. 16)
Connects to a 50 Ω transmit antenna.
11 RX ANTENNA CONNECTOR [RX ANT] (p. 16)
Connects to a 50 Ω receive antenna.
3
10
9
3
4
5
6
7
8
