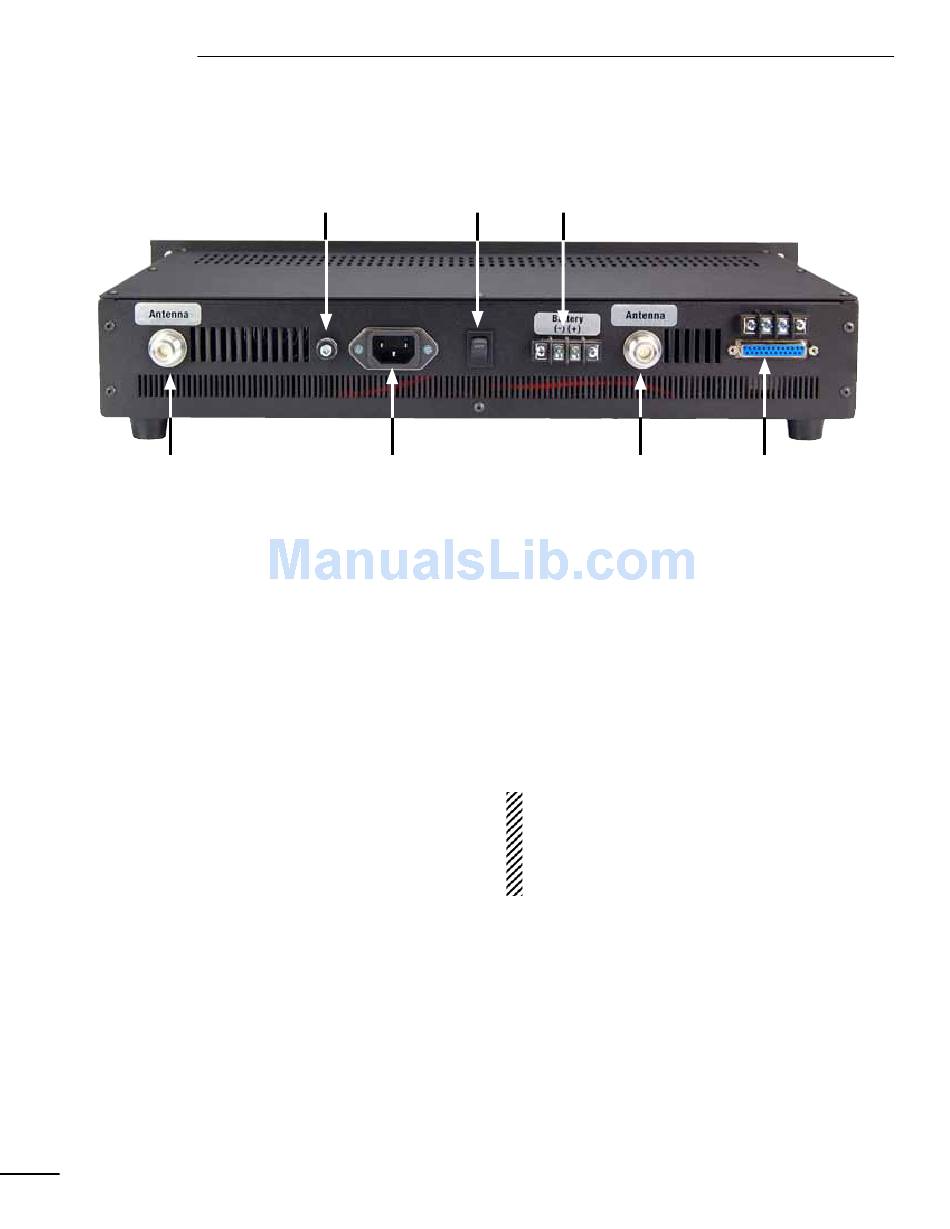

■ Rear Panel

➌
AC POWER SOCKET [AC]
➊
Connects the supplied AC power cable to a
domestic AC outlet.
POWER SWITCH [POWER]
➋
Toggles to turn the repeater power ON
or OFF. Located on the back panel of
the repeater.
RIGHT Radio ANTENNA CONNECTOR
➌
➥ Connect the correct band antenna
(impedance: 50 Ω).
LEFT Radio ANTENNA CONNECTOR
➍
➥Connect the correct band antenna
(impedance: 50 Ω).

GROUND TERMINAL [GND]

➎
Ground the repeater through this terminal
to prevent electric shocks, TVI, BCI and other
problems.
3
➎
➊
➏
➋
➍
DC POWER INPUT TERMINALS [BATTERY]
➏
Connects the 12 V storage battery for the
repeater backup when the AC power is
interrupted. These terminals are also used for
DC power operation.
ACCESSORY CONNECTOR [ACC]
➐
DB25 connects to the remote controller.
•
See pgs. 3, 4 for accessory connector
information.
CAUTION: NEVER short the (+) line of the
DC power cable to repeater's chassis, when
connecting DC power cable to the [BATTERY]
terminals. Otherwise, there is danger of
electric shock and/or equipment damage.
PANEL DESCRIPTION 1
