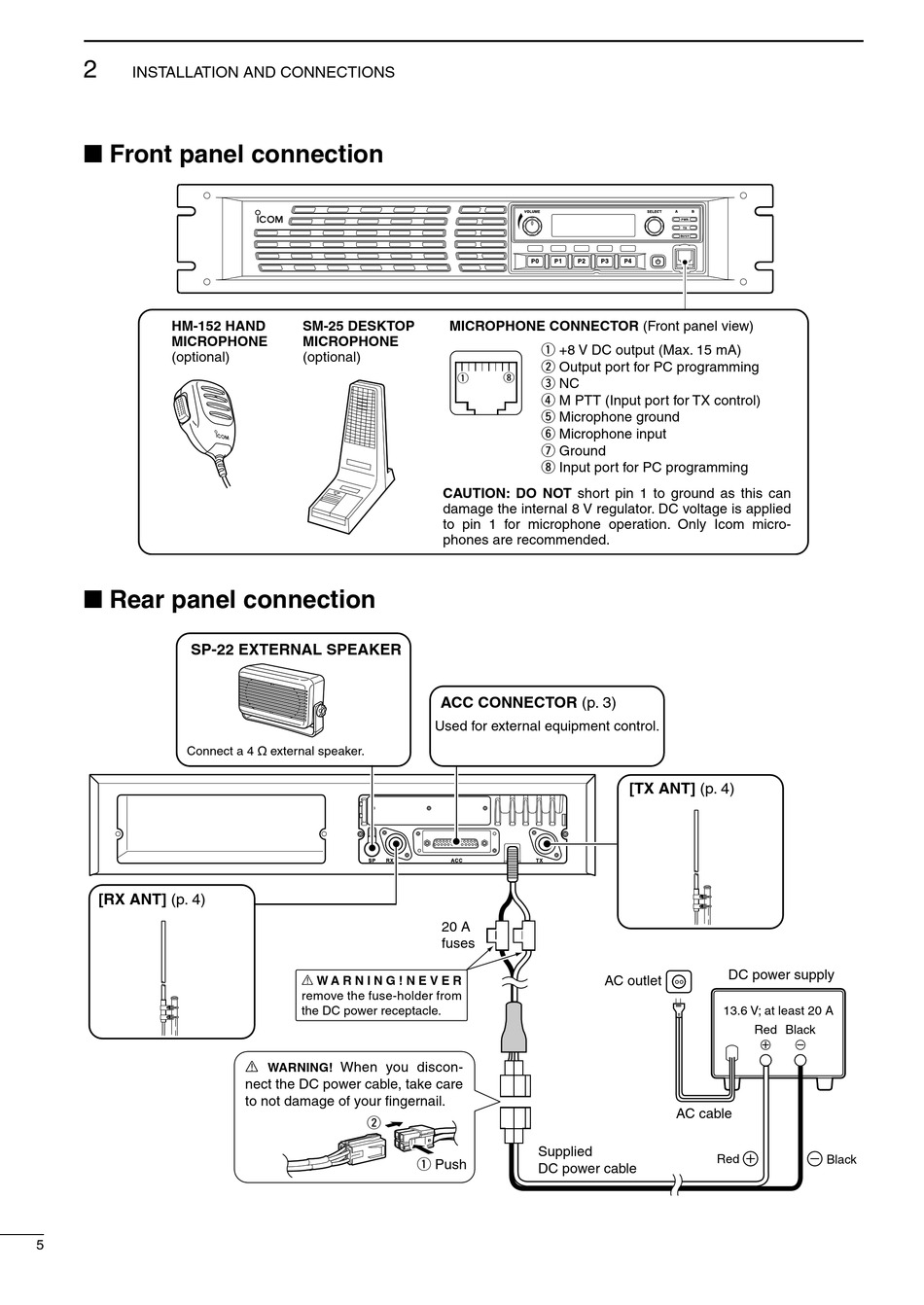

INSTALLATION AND CONNECTIONS

■ Front panel connection

HM-152 HAND
MICROPHONE
(optional)

■ Rear panel connection

SP-22 EXTERNAL SPEAKER
Connect a 4 ˘ external speaker.
[RX ANT] (p. 4)
5
SM-25 DESKTOP
MICROPHONE
(optional)
R W A R N I N G ! N E V E R
remove the fuse-holder from
the DC power receptacle.
When you discon-
R WARNING!
nect the DC power cable, take care
to not damage of your fingernail.
w
q Push
P 0 P 1 P 2 P 3
MICROPHONE CONNECTOR (Front panel view)
q +8 V DC output (Max. 15 mA)
w Output port for PC programming
q i
e NC
r M PTT (Input port for TX control)
t Microphone ground
y Microphone input
u Ground
i Input port for PC programming
CAUTION: DO NOT short pin 1 to ground as this can
damage the internal 8 V regulator. DC voltage is applied
to pin 1 for microphone operation. Only Icom micro-
phones are recommended.
ACC CONNECTOR (p. 3)
Used for external equipment control.
20 A
fuses
AC outlet
Supplied
DC power cable
P 4
[TX ANT] (p. 4)
DC power supply
13.6 V; at least 20 A
Red Black
+ _
AC cable
Red Black
