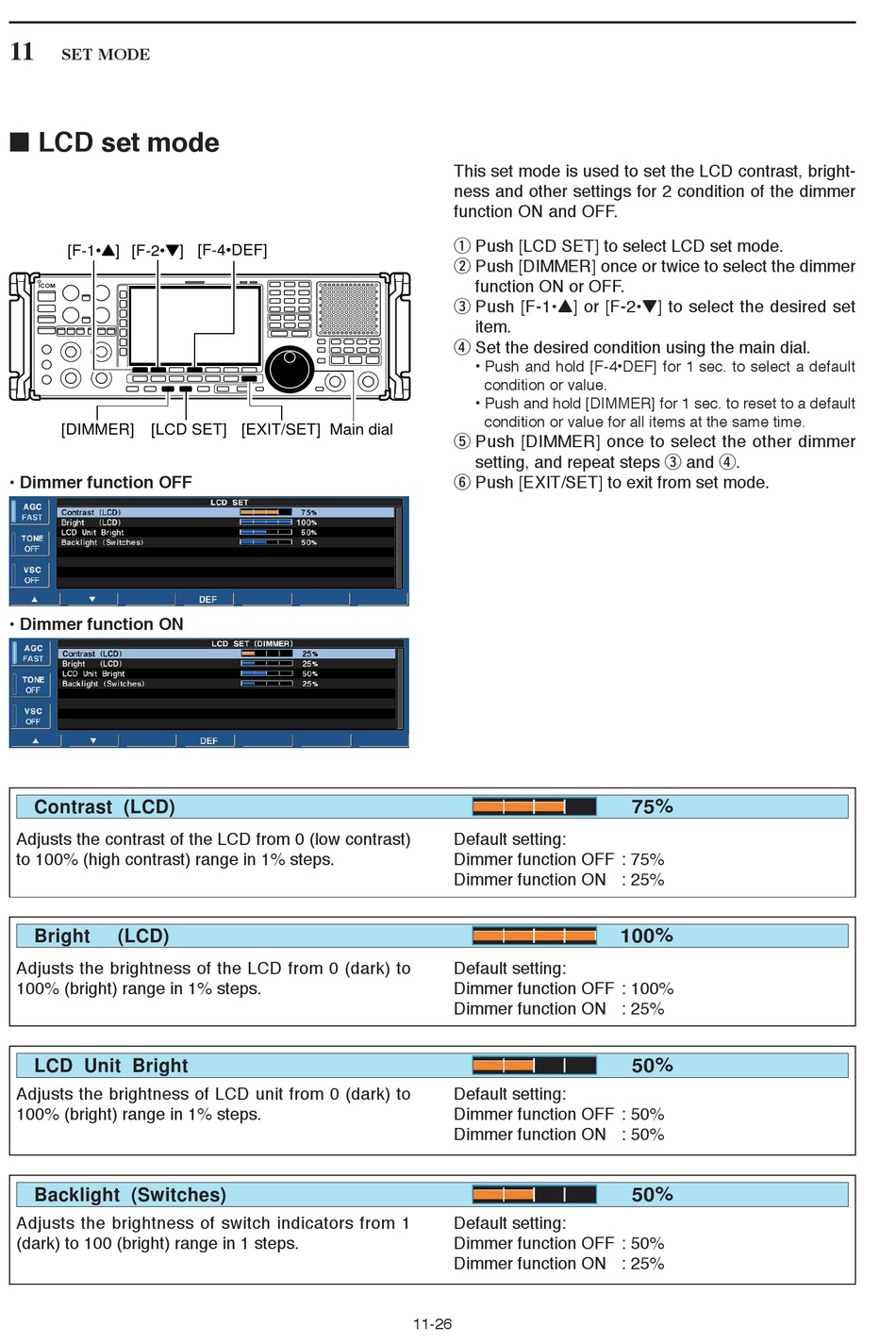

SET MODE

■ LCD set mode

[F-1•Y] [F-2•Z] [F-4•DEF]
[DIMMER] [LCD SET]
• Dimmer function OFF
• Dimmer function ON
Contrast (LCD)
Adjusts the contrast of the LCD from 0 (low contrast)
to 100% (high contrast) range in 1% steps.
Bright (LCD)
Adjusts the brightness of the LCD from 0 (dark) to
100% (bright) range in 1% steps.
LCD Unit Bright
Adjusts the brightness of LCD unit from 0 (dark) to
100% (bright) range in 1% steps.
Backlight (Switches)
Adjusts the brightness of switch indicators from 1
(dark) to 100 (bright) range in 1 steps.
[EXIT/SET] Main dial
This set mode is used to set the LCD contrast, bright-
ness and other settings for 2 condition of the dimmer
function ON and OFF.
q Push [LCD SET] to select LCD set mode.
w Push [DIMMER] once or twice to select the dimmer
function ON or OFF.
e Push [F-1•Y] or [F-2•Z] to select the desired set
item.
r Set the desired condition using the main dial.
• Push and hold [F-4•DEF] for 1 sec. to select a default
condition or value.
• Push and hold [DIMMER] for 1 sec. to reset to a default
condition or value for all items at the same time.
t Push [DIMMER] once to select the other dimmer
setting, and repeat steps e and r.
y Push [EXIT/SET] to exit from set mode.
Default setting:
Dimmer function OFF : 75%
Dimmer function ON : 25%
Default setting:
Dimmer function OFF : 100%
Dimmer function ON : 25%
Default setting:
Dimmer function OFF : 50%
Dimmer function ON : 50%
Default setting:
Dimmer function OFF : 50%
Dimmer function ON : 25%
