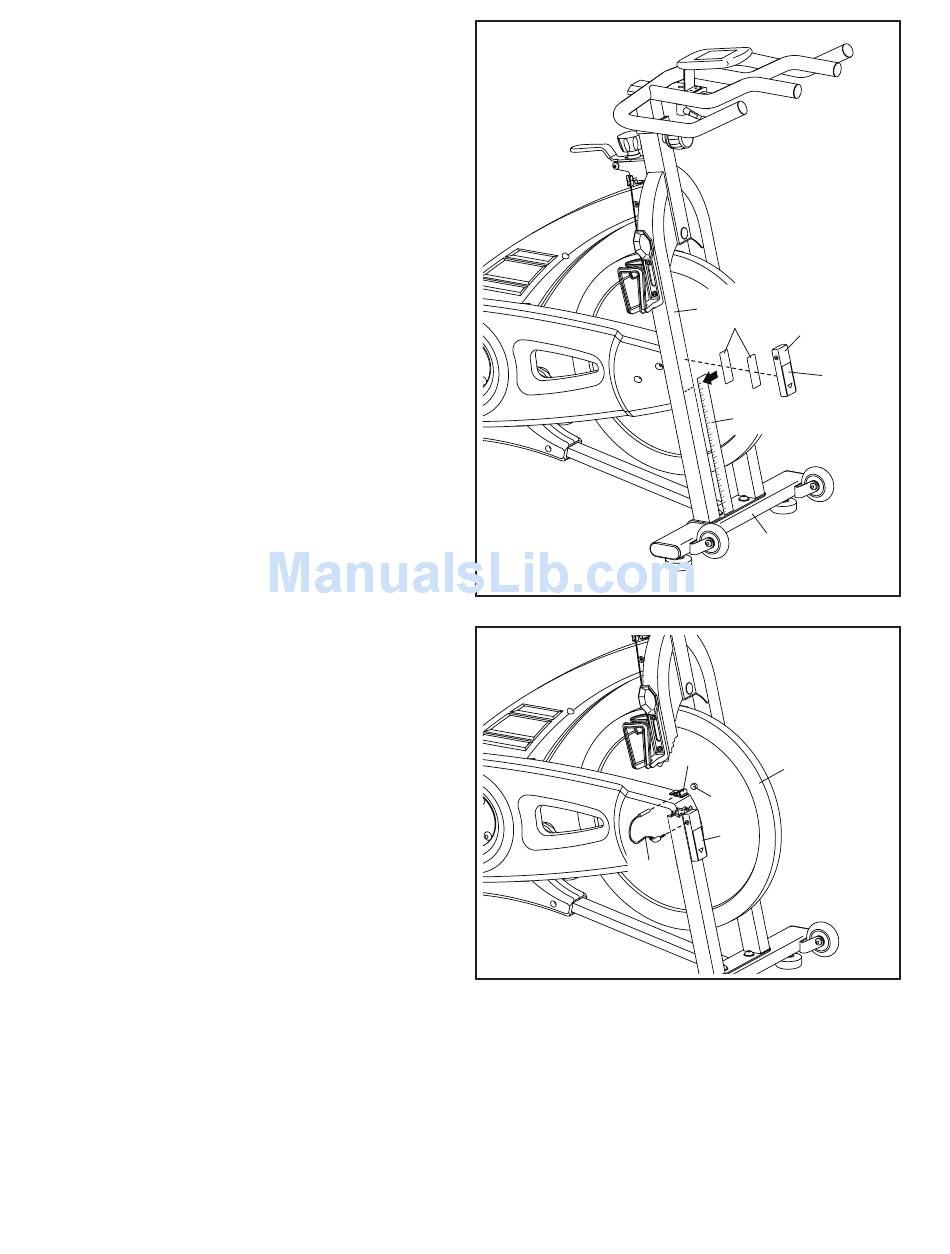

13. The Transmitter (81) requires two AAA bat-
teries (not included); alkaline batteries are
recommended.
Remove the battery cover from the front of the
Transmitter (81), and insert batteries into the bat-
tery compartment. Make sure that the batteries
are oriented as shown by the diagrams inside
the battery compartment. Then, reattach the
battery cover.
IMPORTANT: From the top of the stabilizer,
measure 11 1/2 in. (29 cm) along the Frame
(1) as shown. The Transmitter (81) must be
attached in this location.
Remove the adhesive backing from the Hook
and Loop Fasteners (79). Press a Fastener onto
the Frame (1) in the indicated location.
Orient the Transmitter (81) as shown. Press
the other Fastener (79) onto the back of the
Transmitter.
Attach the Transmitter (81) to the Frame (1)
using the Hook and Loop Fasteners (79).
14. Plug the Reed Switch (80) into the
Transmitter (81).
Insert the other end of the Reed Switch (80) into
the Clamp (82).
Rotate the Flywheel (36) until the Magnet (84) is
aligned with the end of the Reed Switch (80).
Move the Reed Switch (80) so that the gap
between the Reed Switch and the Magnet (84) is
about 1/8 in. (3 mm).
15. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it
functions properly. Make sure that all parts are properly tightened before you use the exercise bike.
Note: Extra parts may be included. Place a mat beneath the exercise bike to protect the floor.
13
14
80
11
1
79
81
Battery
Cover
11.5”" (29 cm)
Stabilizer
82
36
84
81
