ASSEMBLY

•• To hire an authorized service technician to
assemble the elliptical, call 1-800-445-2480.
•• Assembly requires two persons.
•• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
•• To identify small parts, see page 5.

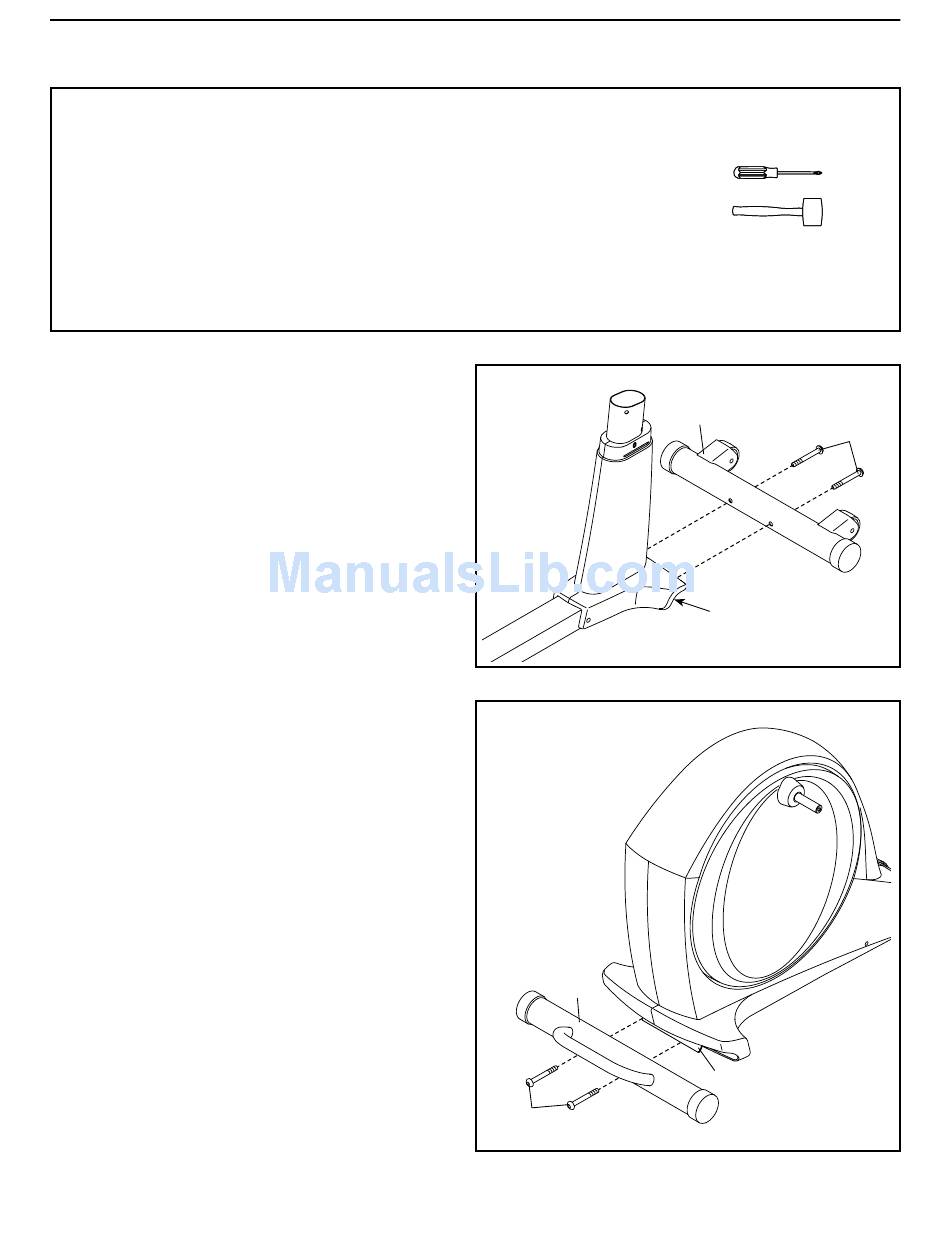

1. Orient the Front Stabilizer (3) as shown.
While another person lifts the Frame (1), attach
the Front Stabilizer (3) to the Frame with two
M10 x 80mm Screws (100).
2. Orient the Rear Stabilizer (4) as shown.
While another person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 80mm Screws (100).
•• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a socket set
or a set of ratchet wrenches. To avoid damaging
parts, do not use power tools.
1
2
4
100
6
3
100
1
2
