MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
Most console problems are the result of low batteries.
See assembly step 11 on page 11 for replacement
instructions.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 18.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.

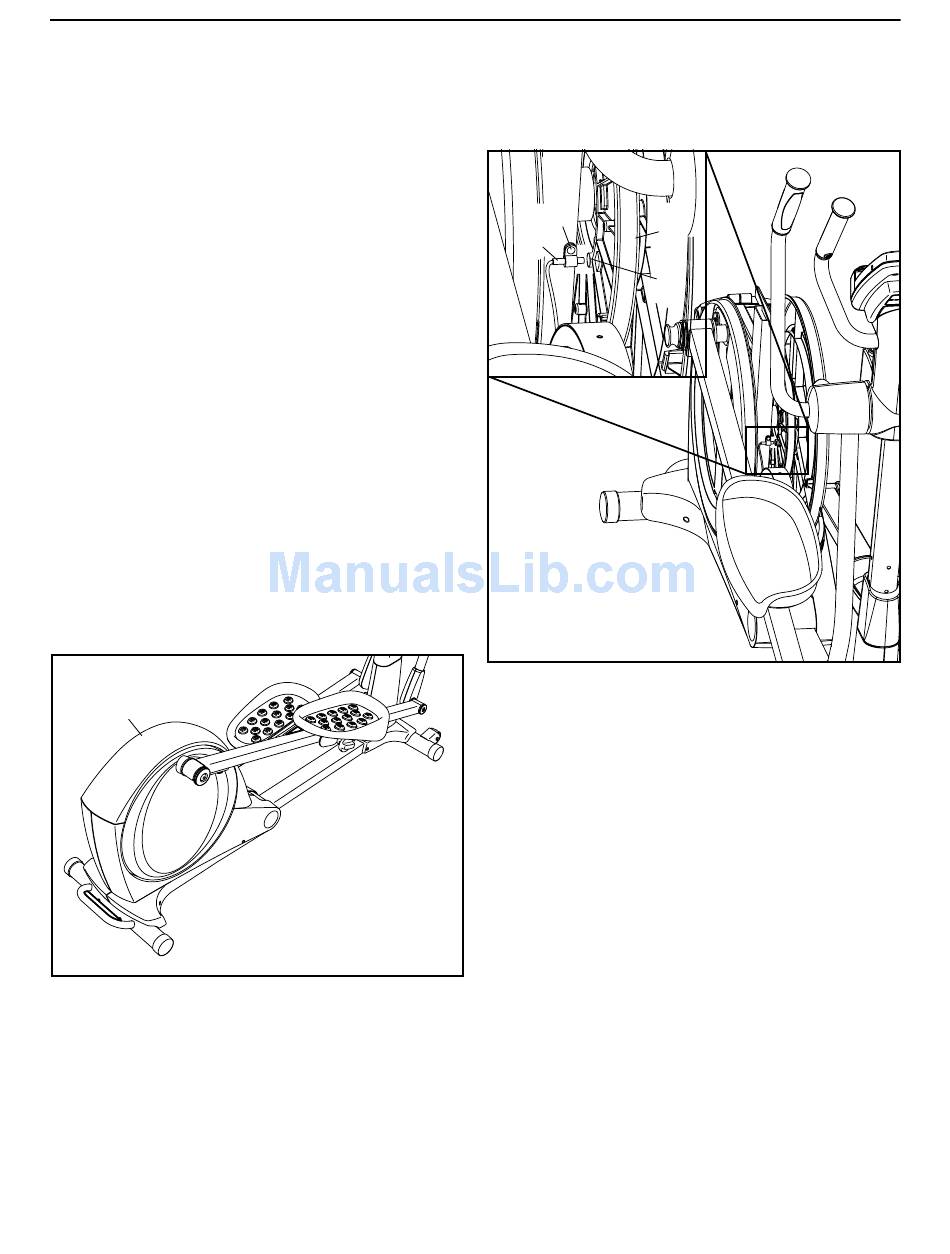

To adjust the reed switch, you must first remove the
Top Shield (20). Using a flat screwdriver, release the
tabs on the front and rear of the Top Shield and then
remove the Top Shield.
20
Next, locate the Reed Switch (69). Loosen, but do not
remove, the M4 x 16mm Screw (93).
93
69
Next, rotate the Large Pulley (74) until a Magnet (75)
is aligned with the Reed Switch (69). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (93).
Rotate the Large Pulley (74) for a moment. Repeat
these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the top shield.
23
74
75
