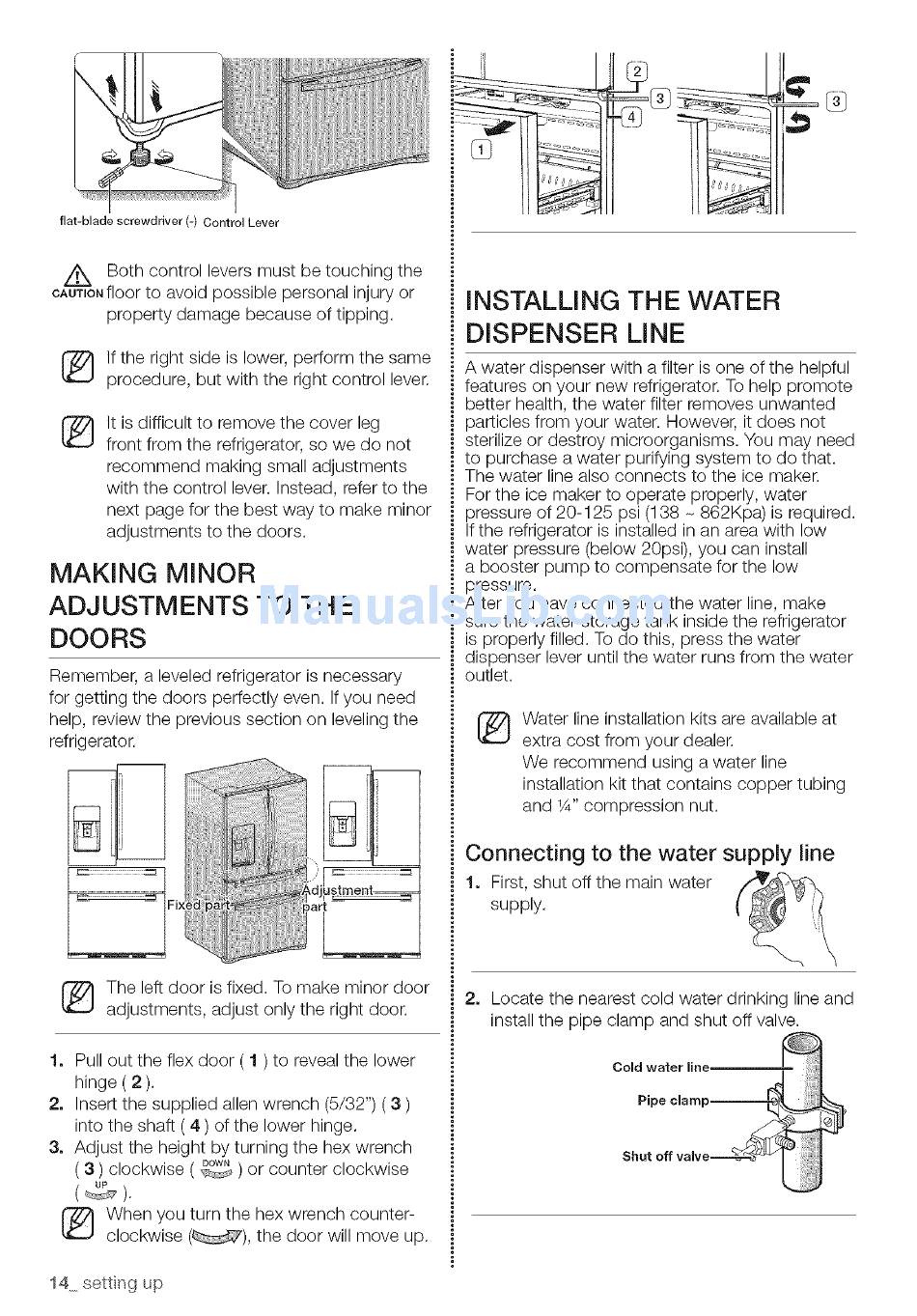

Installing The Water Dispenser Line - Samsung RF24FSEDBSR/AA User Manual

\
flat-blade screwdriver (-) Control Lever
Both control levers must be touching the
CAUT,ON floor to avoid possible personal injury or
property damage because of tipping.
If the right side is lower, perform the same
procedure, but with the right control lever.
®
It is difficult to remove the cover leg
front from the refrigerator, so we do not
recommend making small adjustments
with the control lever. Instead, refer to the
next page for the best way to make minor
adjustments to the doors.
MAKING MINOR
ADJUSTMENTS TO THE
DOORS
Remember, a leveled refrigerator is necessary
for getting the doors perfectly even. If you need
help, review the previous section on leveling the
refrigerator.
Fixed par t_
The left door is fixed. To make minor door
adjustments, adjust only the right door.
1. Pull out the flex door ( 1 ) to reveal the lower
hinge ( 2 ).
2. Insert the supplied allen wrench (5/32") (3 )
into the shaft ( 4 ) of the lower hinge.
3. Adjust the height by turning the hex wrench
( 3 ) clockwise ( _-_ ..... ) or counter clockwise
(_ When you turn the hex wrench counter-
clockwise ( ), the door will move up.
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a filter is one of the helpful
features on your new refrigerator. To help promote
better health, the water filter removes unwanted
particles from your water. However, it does not
sterilize or destroy microorganisms. You may need
to purchase a water purifying system to do that.
The water line also connects to the ice maker.
For the ice maker to operate properly, water
pressure of 20-125 psi (138 - 862Kpa)is required.
If the refrigerator is installed in an area with low
water pressure (below 20psi), you can install
a booster pump to compensate for the low
pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator
is properly filled. To do this, press the water
dispenser lever until the water runs from the water
outlet.
(_ ater line installation kits are available at
extra cost from your dealer.
We recommend using a water line
installation kit that contains copper tubing
and 1A" compression nut.
Connecting to the water suppRy line
1. First, shut off the main water
supply.
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut off valve.
Cold water lineal
Pipe clarnp_
Shut off valve_.._ _-_ I
