Summary of Contents for Furman PL-8 II

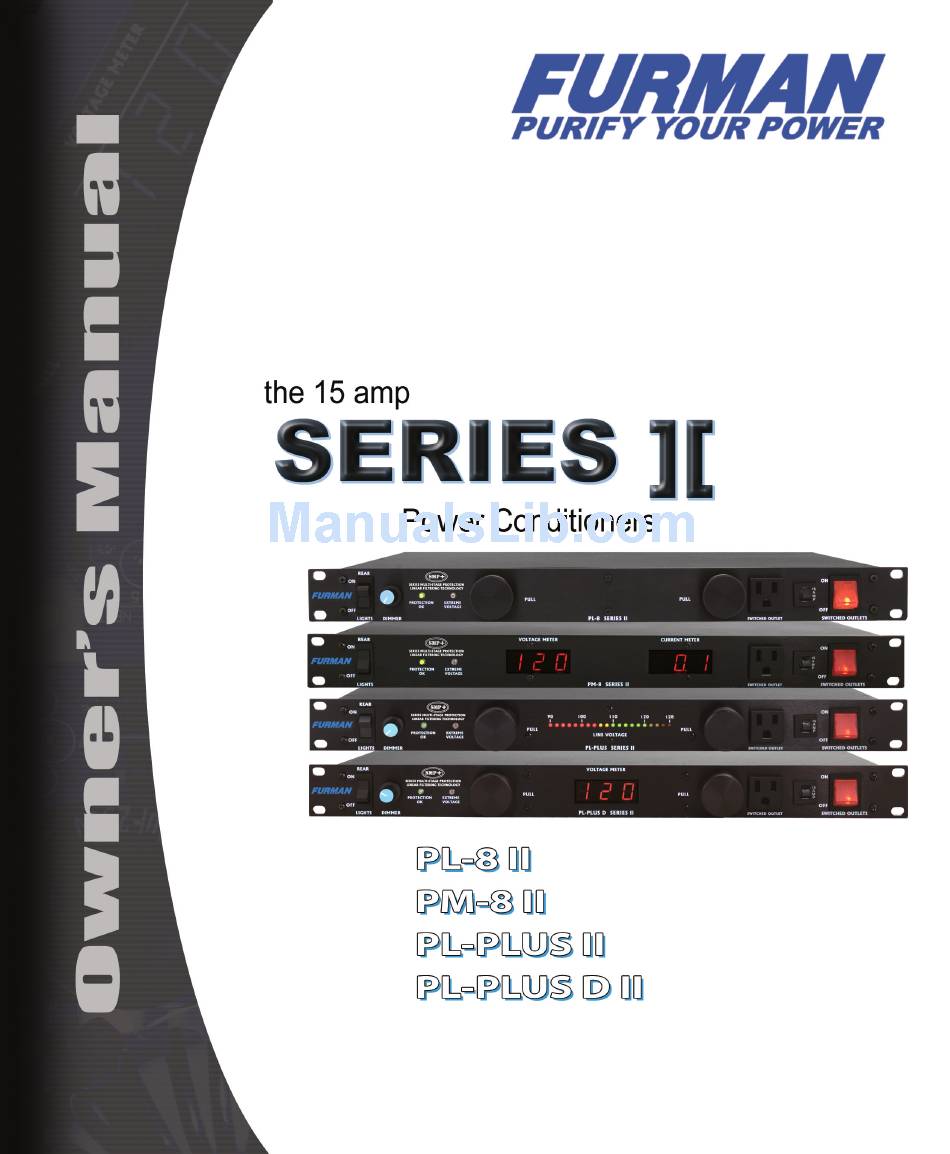

- Page 1 SERIES II 15 AMP PowER CondItIonERS...
- Page 2 SERIES II 15 AMP PowER CondItIonERS Furman Series II Features SMP+ with extreme voltage shutdown • LiFT (Linear Filtering Technology) with zero ground contamination • Eight rear panel outlets and one front panel outlet • 15 amp rating, with circuit breaker •...
- Page 3 SERIES II 15 AMP PowER CondItIonERS I N T R O D U C T I O N Thank you for purchasing a Furman Series II Power Conditioner, and congratulations on your choice. The Series II power conditioners feature Furman’s revolutionary Series Multi- Stage Protection Plus (SMP+) circuit, as well as our exclusive Linear Filtering Technology (LiFT).
- Page 4 4. The PL-8 II, PL-Plus II, PL-Plus D II, and PM- 8 II should only be connected to a 120 VAC, 60Hz, 15 amp grounded electrical outlet. Do not defeat the ground or change polarization of the power plug.
- Page 5 (12VAC 0.5 amp) gooseneck lamp for rear rack illumination. The PL-8 II has a master switch for all outlets that glows red when the power is on. The front- panel circuit breaker can be quickly and easily reset should the unit be overloaded.
- Page 6 O P E R AT I O N Retractable Rack Lights, Rear Panel Lamp and dimmer Control: The PL-8 II, PL-Plus, and PL-Plus D II utilize a dimmer control for the two retractable front panel light tubes. The dimmer knob controls the brightness of both light fixtures.
- Page 7 R.M.S. technology, the current readings are accurate regardless of load conditions (capacitive, inductive or resistive). notE: The PL-8 II, PL-Plus II, PL-Plus D II, and PM-8 II do not compensate for high or low line voltage. If you frequently move your...
- Page 8 SERIES II 15 AMP PowER CondItIonERS voltage rating will be compromised. The unit must be returned to Furman Sound, or an authorized Furman Service center for repair. notE: If the mains power is above the high cutoff voltage and has caused the unit to...
- Page 9 THREE YEAR LIMITED WARRANTY Furman Sound, LLC., having its principal place of business at 1997 South McDowell Blvd., Petaluma, CA 94954 (“Manufacturer”) warrants its 15 amp Series II Power Conditioners (the “Product”) as follows:...
-
Page 10: Specifications
Weight: 11 lbs (5 kg). Construction: Steel chassis, .125” brushed and black anodized aluminum front panel; glass epoxy printed circuit boards Power Consumption: PL-8 II, 6 watts PL-PLUS II, 12 watts PL-PLUS D II, 12 watts PM-8 II, 12 watts Safety Agency Listings:... - Page 11 SERIES II 15 AMP PowER CondItIonERS PL-8 Series II Light Switch Dimmer Control PL-PLUS Series II Light Switch Dimmer Control PL-PLUS d Series II Light Switch Dimmer Control PM-8 Series II Light Switch Rear of all 8 Switched Outlets Additional Switched Outlet Lights LED Rack Voltmeter...
- Page 12 SERIES II 15 AMP PowER CondItIonERS Furman Sound, LLC. 1997 South McDowell Blvd. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 Web: www.furmansound.com 111804-C E-mail: info@furmansound.com...
