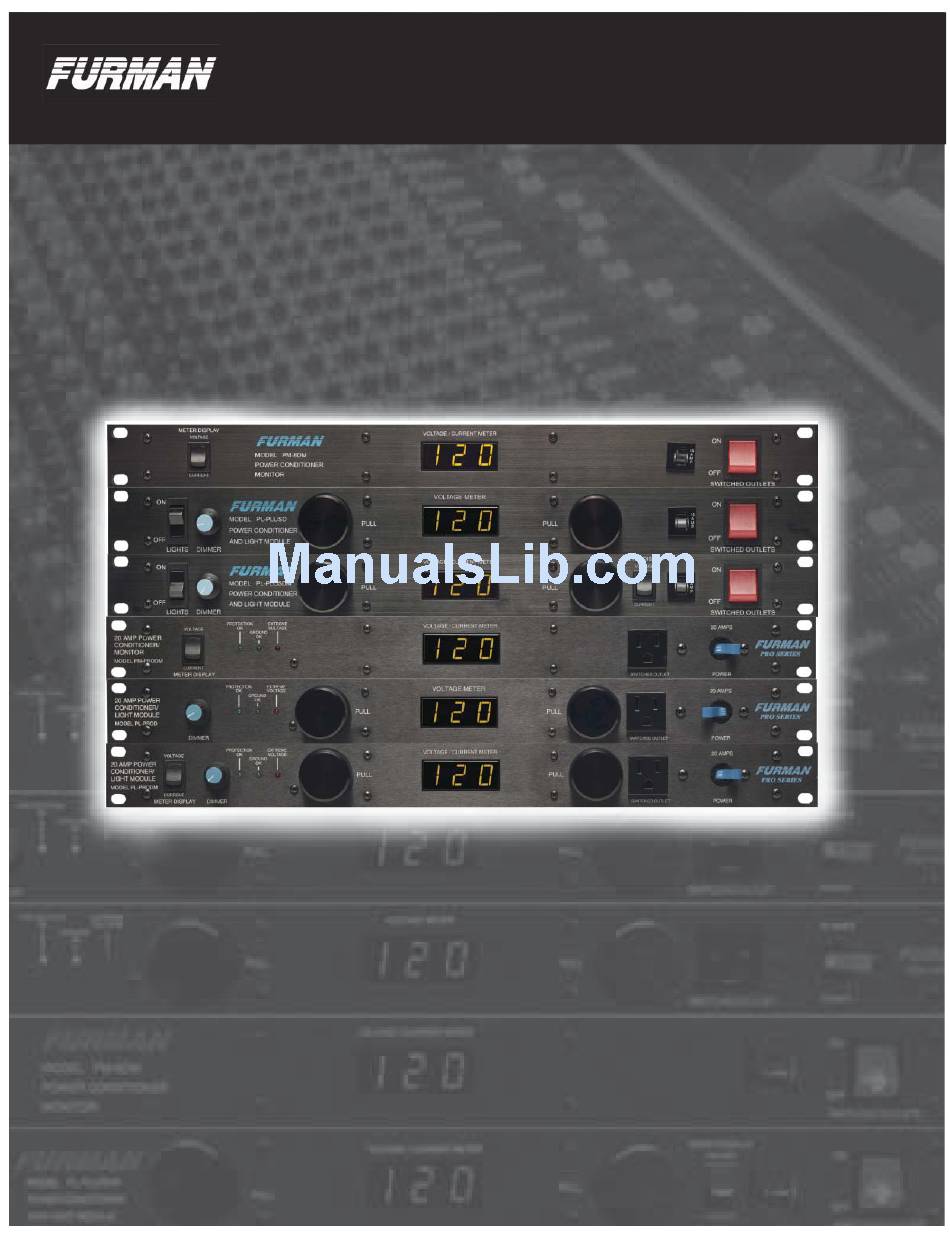

- Page 1 Metered Six Series Owner’s Manual...
- Page 2 I N T R O D U C T I O N Thank you for your purchase of a Furman Metered Six Power Conditioner, and congratulations on your choice. The Metered Six line of Power Conditioners offer many of the same features that have made Furman Power products preeminent within the music, broadcast, and contractor industries for decades.
-
Page 3: Safety Information
S A F E T Y I N F O R M A T I O N To obtain best results from your Furman Metered Six Power Conditioner, please be sure to read this manual carefully before using. W A R N I N G To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. -
Page 4: Operation
Light Tubes and Bulb Replacement: The PL-PLUSD and PL-PLUSDM feature the familiar slide-out rack lights pioneered by Furman. These units’ lamps come supplied with five-watt night light bulbs. Replacements are available at most hardware stores, and may be purchased from Furman Sound service as well. - Page 5 Furman’s AC Line Voltage Regulators. Retractable Rack Lights/...
- Page 6 These light tubes automatically turn off when fully pushed into the front panel (a feature exclusive to Furman). The dimmer knob controls the brightness of both light fixtures. Turn it clockwise to increase brightness; turn it counterclockwise to decrease brightness.
- Page 7 bulb, place your index finger across the hole on the underside of the tube and in contact with the bulb. Use the ball of your finger to rotate the bulb out of its socket. Then remove the bulb from the front of the light tube.
- Page 8 If this LED is not lit when the power switch is on, full protection is not functioning. Spike protection may still exist, but will have a reduced capacity to absorb current. If this LED is not lit, please contact the Furman Service Department. Ground OK Indicator: This LED is normally on when the power to the PL-PROD, PL-PRODM, or PM-PRODM’s outlets are switched on.
-
Page 9: Specifications
S P E C I F I C A T I O N S Current rating: 15 amps, 1800 watts at 120 VAC Input Voltage: 0 to 135 VAC without damage Meter Accuracy: Voltmeter: +/- 1VAC; Ammeter: +/- 0.1 amps Spike Protection Modes: Line to Neutral, Neutral to Ground, Clamping Voltage, all modes:... -
Page 10: Warranty
Any Metered Six unit known to have taken a direct lightning hit should be checked by a qualified technician or the Furman factory to determine whether the MOV’s need replacement. (If the PROTECTION OK indicator is not lit, there is definitely some damage. Some spike suppression capability may still be available by MOV Bank #2, but there is no guarantee of this.) - Page 11 This warranty may be cancelled by Furman Sound Inc. at its sole discretion, if the unit has been subjected to physical abuse or has been modified in any way without written authorization from Furman Sound. Furman Sound’s liability under this warranty is limited to repair of the defective unit.
- Page 12 Furman Sound, Inc. 1997 South McDowell Blvd. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 Web: www.furmansound.com E-mail: info@furmansound.com Designed and engineered in the U.S.A. - Manufactured in China.
