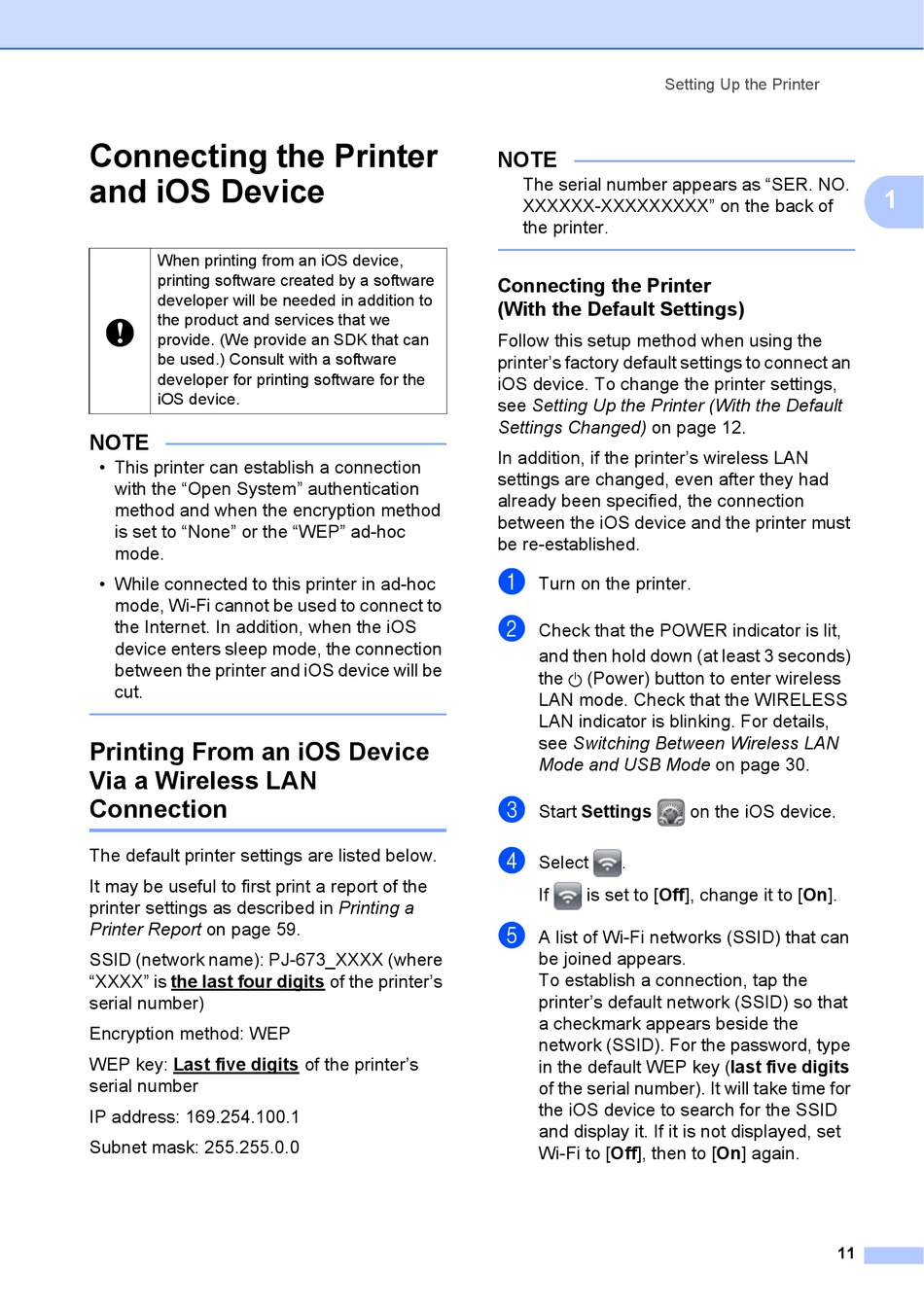

Connecting the Printer
and iOS Device
When printing from an iOS device,
printing software created by a software
developer will be needed in addition to
the product and services that we
provide. (We provide an SDK that can
be used.) Consult with a software
developer for printing software for the
iOS device.
NOTE
• This printer can establish a connection
with the "Open System" authentication
method and when the encryption method
is set to "None" or the "WEP" ad-hoc
mode.
• While connected to this printer in ad-hoc
mode, Wi-Fi cannot be used to connect to
the Internet. In addition, when the iOS
device enters sleep mode, the connection
between the printer and iOS device will be
cut.
Printing From an iOS Device
Via a Wireless LAN
Connection
The default printer settings are listed below.
It may be useful to first print a report of the
printer settings as described in Printing a
Printer Report on page 59.
SSID (network name): PJ-673_XXXX (where
"XXXX" is the last four digits of the printer's
serial number)
Encryption method: WEP
WEP key: Last five digits of the printer's
serial number
IP address: 169.254.100.1
Subnet mask: 255.255.0.0
NOTE
The serial number appears as "SER. NO.
XXXXXX-XXXXXXXXX" on the back of
1
the printer.
Connecting the Printer
(With the Default Settings)
Follow this setup method when using the
printer's factory default settings to connect an
iOS device. To change the printer settings,
see Setting Up the Printer (With the Default
Settings Changed) on page 12.
In addition, if the printer's wireless LAN
settings are changed, even after they had
already been specified, the connection
between the iOS device and the printer must
be re-established.
a
Turn on the printer.
b
Check that the POWER indicator is lit,
and then hold down (at least 3 seconds)
the (Power) button to enter wireless
LAN mode. Check that the WIRELESS
LAN indicator is blinking. For details,
see Switching Between Wireless LAN
Mode and USB Mode on page 30.
c
Start Settings
1
d
Select
If is set to [Off], change it to [On].
e
A list of Wi-Fi networks (SSID) that can
be joined appears.
To establish a connection, tap the
printer's default network (SSID) so that
a checkmark appears beside the
network (SSID). For the password, type
in the default WEP key (last five digits
of the serial number). It will take time for
the iOS device to search for the SSID
and display it. If it is not displayed, set
Wi-Fi to [Off], then to [On] again.
Setting Up the Printer
on the iOS device.
.
1
1
11
