Adjusting Line Length (Adjust Length)

Adjusting Line Length (Adjust Length) Adjusting Line Length (Adjust Length)
To ensure that lines in CAD drawings are printed at exactly the right length, use Adjust Length to adjust the amount
that paper is advanced.
There are two options in Adjust Length : AdjustmentPrint and Change Settings.
• AdjustmentPrint
After a test pattern is printed, you will measure the discrepancy based on the results of printing.
• Change Settings
No test pattern is printed. Instead, you will measure a document already printed to determine the discrepancy.
Additionally, two modes are available in both AdjustmentPrint and Change Settings : A:High or B:Standard/Draft.
Choose the mode that suits your particular printing application.
• A:High
This setting is applied when Highest or High is selected in Print Quality in the printer driver.
• B:Standard/Draft
This setting is applied when Standard or Fast is selected in Print Quality in the printer driver.
•
Always check the Adj. Priority values before using Adjust Length. (See "Selecting a Feed Amount Adjustment Method (Feed
Priority).")
Note
•
Use paper of the same type and size for adjustment as you will use for printing.
Paper to Prepare
When Using Rolls
When Using Sheets
Perform adjustment as follows.
1
Load the paper.
• Attaching the Roll Holder to Rolls
• Loading Rolls in the Printer
• Loading Sheets in the Printer
Important
2

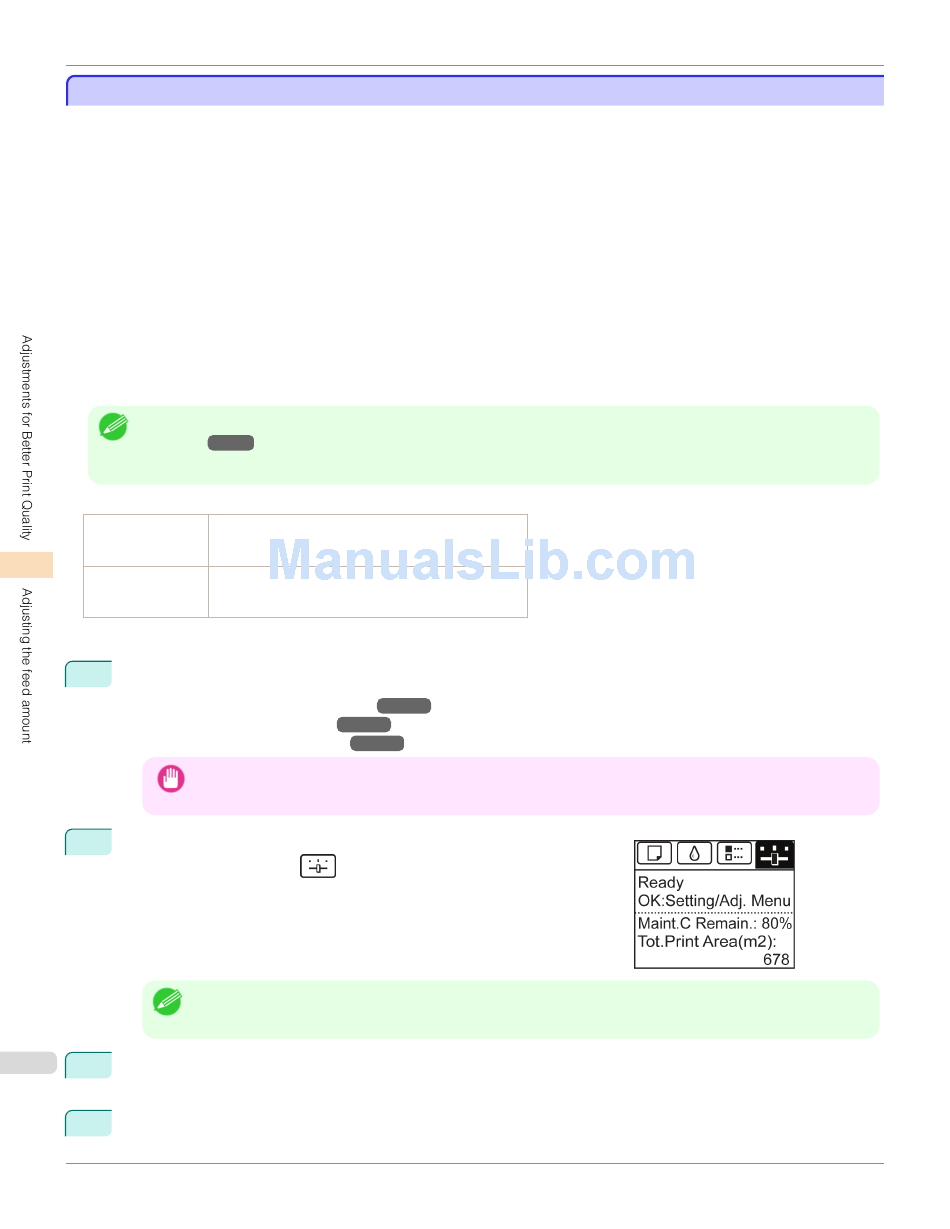

On the Tab Selection screen of the Control Panel, press ◀ or ▶ to se-
lect the Settings/Adj. tab (
•
Note
564 3
Press the OK button.
The Set./Adj. Menu is displayed.
4
Press ▲ or ▼ to select Adjust Printer, and then press the OK button.
→P.559
•
An unused roll at least 10 inches wide
•
High-precision ruler
•
One sheet of unused paper of at least A4/Letter size
•
High-precision ruler
→P.442
→P.461
•
Always make sure the loaded paper matches the type of paper specified. Adjustment cannot be completed correctly
unless the loaded paper matches the settings.
).
If the Tab Selection screen is not displayed, press the Menu button.
→P.439
