4.

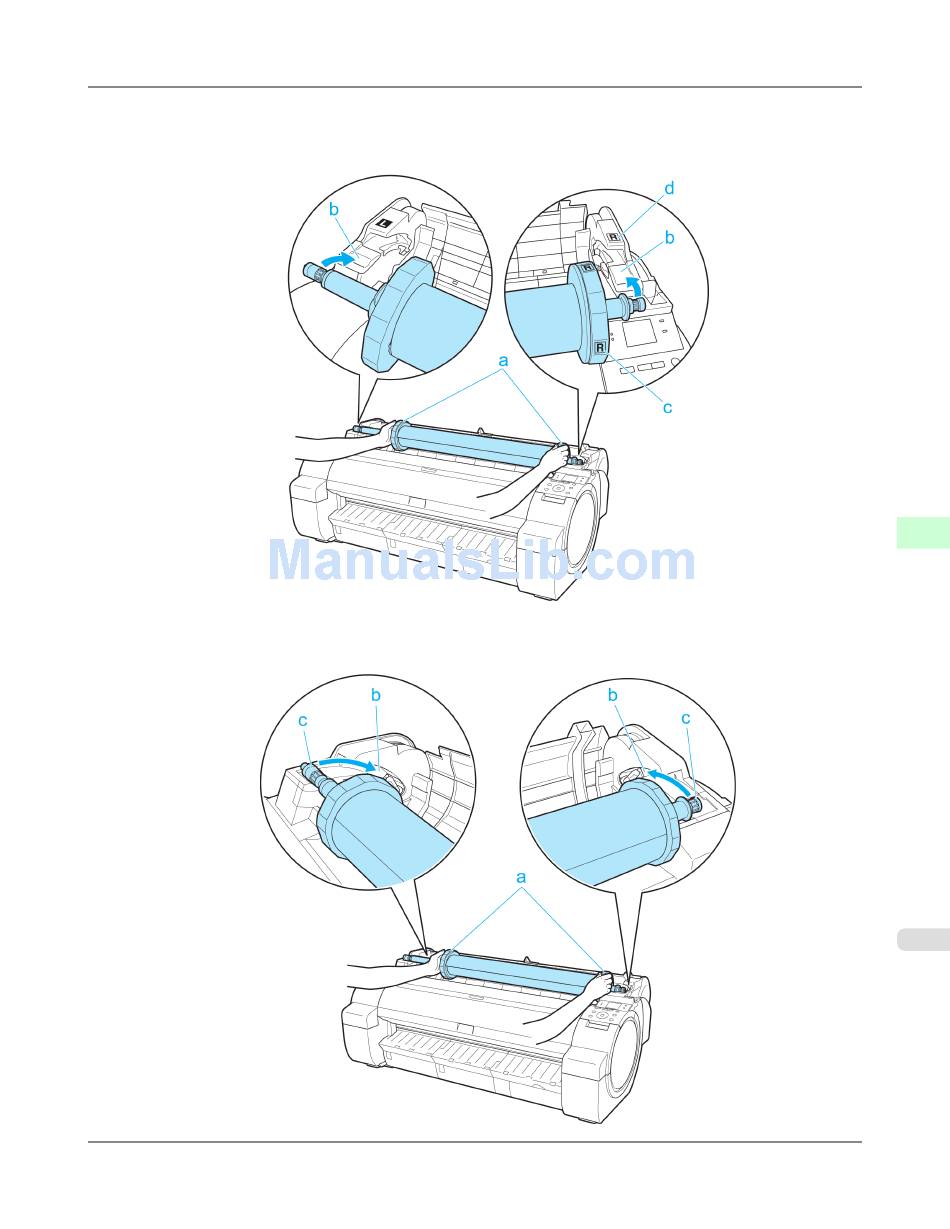

Holding the Roll Holder flange (a), rest the Roll Holder shaft on the Roll Ledge (b).
At this time, position the holder so that the R label (c) on the Roll Holder flange is aligned with the R label (d) on
the printer .
5.
Holding the Roll Holder flange (a), guide the holder along the Roll Loading Slots (b) on both ends, keeping the
holder level as you load it in the Roll Holder Slot.
iPF650
Handling Paper > Handling rolls
Loading Rolls in the Printer
>
