3.

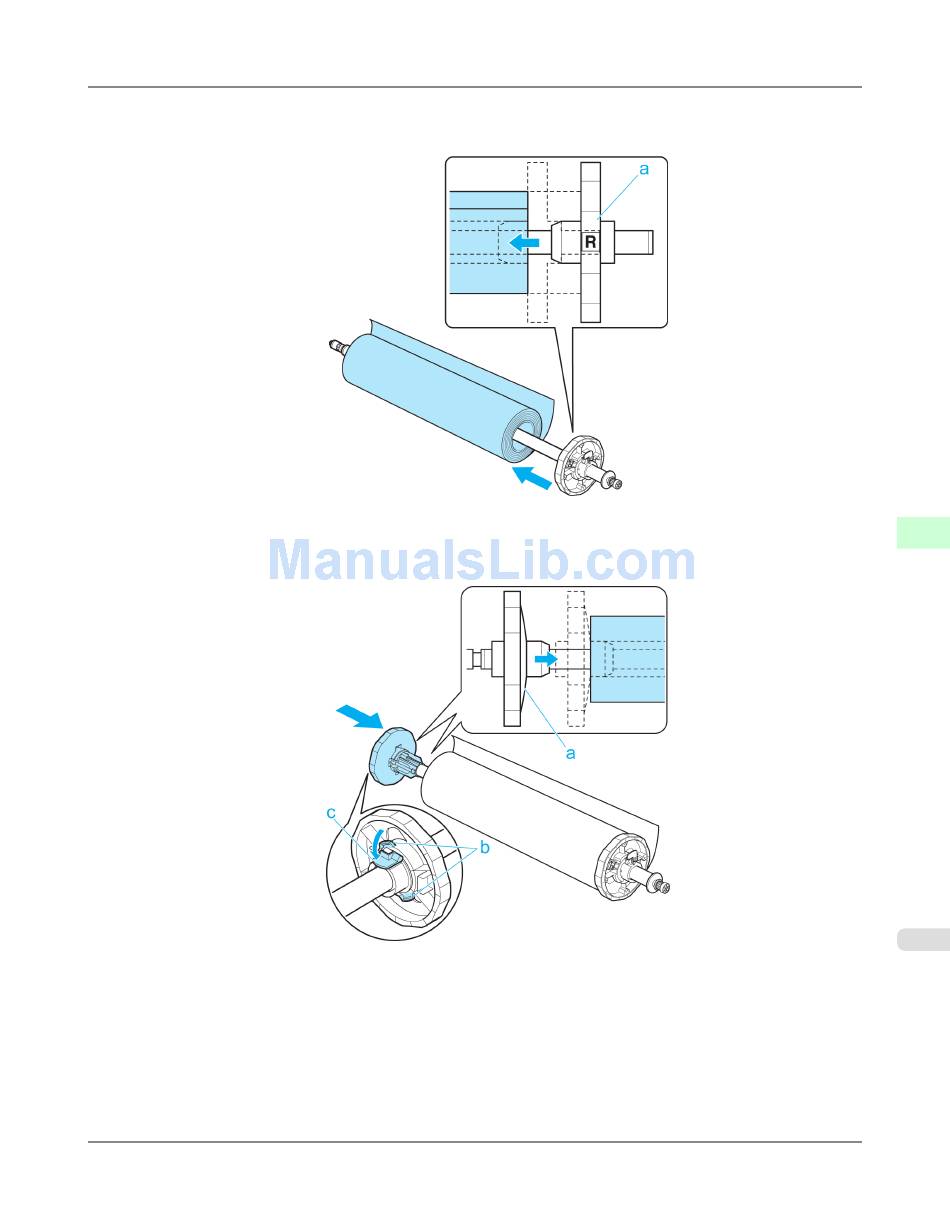

With the edge of the roll paper facing forward as shown, insert the Roll Holder from the right of the roll. Insert it
firmly until the roll touches the flange (a) of the Roll Holder, leaving no gap.
4.
Insert the Holder Stopper from the left in the Roll Holder as shown. Holding it at the position shown (b), push it
firmly in until the flange (a) of the Holder Stopper touches the roll. Lock the Holder Stopper lever (c) by pushing it
down toward the shaft side.
iPF650
Handling Paper > Handling rolls
Attaching the Roll Holder to Rolls
>
