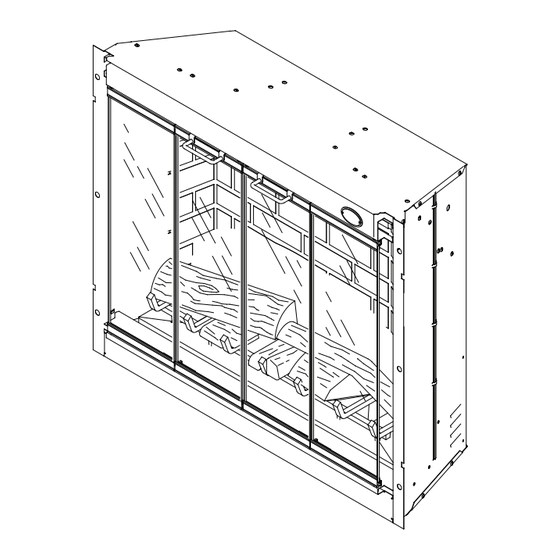

32” purifire fireplace with full feature remote
Hide thumbs Also See for DF3215:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Owner's Manual
Service Manual
32" Purifire Fireplace with Full Feature Remote
Model Numbers:
DF3215
- MOD / to D
Dimplex North America Limited
1367 Industrial Road
Cambridge ON Canada N1R 7G8
1-888-346-7539
www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
REV
PCN
DATE
00
~~~~
Aug 22, 07
01
11540
Jul 28, 09
7400170000rev01

Advertisement

Table of Contents
loading

Related Manuals for Dimplex DF3215

Summary of Contents for Dimplex DF3215

  • Page 1 Service Manual 32” Purifire Fireplace with Full Feature Remote Model Numbers: DF3215 - MOD / to D DATE ~~~~ Aug 22, 07 11540 Jul 28, 09 Dimplex North America Limited 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice.

  • Page 2: Table Of Contents

    Table Of Contents Page 3 Operation Page 6 Exploded Parts Diagram and Parts List Page 7 Wiring Diagram and Schematic Page 8 Light Bulb Replacement Page 9 Purifire™ Filter Replacement Page 9 Mirror Replacement Page 10 Main On/Off Switch Replacement Page 11 Switch Board Replacement Page 11 Flicker Motor/Flicker Rod Replacement Page 12...

  • Page 3: Operation

    Operation CAUTION: If you need to continuously reset the heater, unplug the unit and call Dimplex North America Limited at Electric Fireplace Manual Control 1-888-346-7539 for technical support. The manual controls for the fireplace are located in the upper * Not applicable on DF3215NH model fireplaces. right hand corner (Figure 1).
  • Page 4 2. Set Temperature* Heat function On or press the Purifire™ On/Off button to turn the Purifire™ function ON. 1. Press 17. Flame Heat On/Off button to turn fireplace on. 2. Press 8. Temperature Up to raise thermostat. Frequency Interference 3. Press 7. Temperature Down to lower thermostat. 4. Press both 8. Temperature Up and 7. Temperature If the fireplace does not respond properly to the remote control, the remote operating frequency may have to be Down to change °F to °C.
  • Page 5 17. Flame / Heat On/Off Button* Figure 4 Press the 17. Flame/Heat On/Off button to turn the Flame/ Unlocked Locked Heat function On. When the 2. Set Temperature is higher then the 1. Room Temperature the heat will come on. To turn the heat off, lower the 2. Set Temperature so that it’s setting is lower then the 1. Room Temperature.
  • Page 6 Exploded Parts Diagram Replacement Parts List DF3215 Part Number 6902520159 Replacement Part: 11. Mirror - Silvered 5900160700RP 1. 30” Urethane Log set 0439070100RP 12. Remote Transmitter 3000610100RP 2. Flicker Motor 3000240200KIT 13. Remote Receiver 3000320500RP 3. Heater Assembly 2200490600RP 14. Flicker Rod 5900080700RP 4. Cutout 2300200500RP 15.
  • Page 7 Wiring Diagram...

  • Page 8: Light Bulb Replacement

    Light Bulb Replacement 7. Pull the Flicker Rod to the far right, then bend it carefully to free and lift the left side out of the mounting bracket. Allow at least five (5) minutes for light bulbs to cool before touching bulbs to avoid accidental burning of skin. ! NOTE: When removing the Flicker Rod, damage may Light bulbs need to be replaced when you notice a dark occur if bent excessively.

  • Page 9: Purifire™ Filter Replacement

    3. Remove the light cover for each bulb (one (1) Philips 2. Lay fireplace on its back. screw each). 3. Remove the 10 Philips screws that attach the bottom 4. Unscrew bulbs counter clockwise. panel to the fireplace as shown in Figure 9. There are: two (2) screws along the bottom edge of each side;...

  • Page 10: Main On/Off Switch Replacement

    cover to the rest of the firebox. There are: three (3) Figure 11 screws on each side along the top edge; and two (2) Mirror screws on the back along the top edge (Figure 12). Rubber Extrusions Figure 12 Log Set Support These edges of bracket Bracket...

  • Page 11: Switch Board Replacement

    7. Properly orientate the new switch and push it through 7. Properly orientate the new Switch Board, snap onto the sheet metal from inside the firebox. Push until the the mounting studs and reconnect the ribbon cable as retainer clips on either side of the switch snap into place. before.

  • Page 12: Remote Control Board Replacement

    7. Remove Flicker Rod (replace and reassemble if Flicker are wired to the internal cavity of the fireplace. Motor does not need to be changed at this point). 4. Locate the Remote Control Receiver on the right side of 8. Before removing the Flicker Motor, cut the Flicker Motor the upturned top panel (Figure 16).

  • Page 13: Heater Assembly/Cutout Replacement

    9. Reassemble in the reverse order as above. Heater Assembly and panel in one hand, remove the four (4) heater mounting screws (Figure 18). Heater Assembly/Cutout Replacement Figure 19 If the fireplace was operating prior to servicing allow at least Mounting Brackets (3) 10 minutes for light bulbs and heating element to cool off to avoid accidental burning of skin.

  • Page 14: Power Cord Replacement

    Figure 20 White wire looped from right terminal Black wire from front of motor to upper terminal of element Long white wire terminal of element to P2 from Cutout White wire from Cutout to top middle terminal of element Red wire from motor’s upper left terminal to P1...
