8 – Mixer
5. Press the DATA dial to return to the previous screen where you
can select the next setting that you want to adjust.
NOTE
•
The mixer can be used when the unit is stopped, paused, playing
back, in recording standby and recording.
•
Even when the screen is open, you can use the play (7)
MIXER
button to start playback and the stop (8) [HOME] button to
pause playback.
•
If the item is changed, it will also be changed on the
MS MODE
screen.
REC MODE
•
The cannot be changed when recording.
MS MODE
80
TASCAM DR-60D

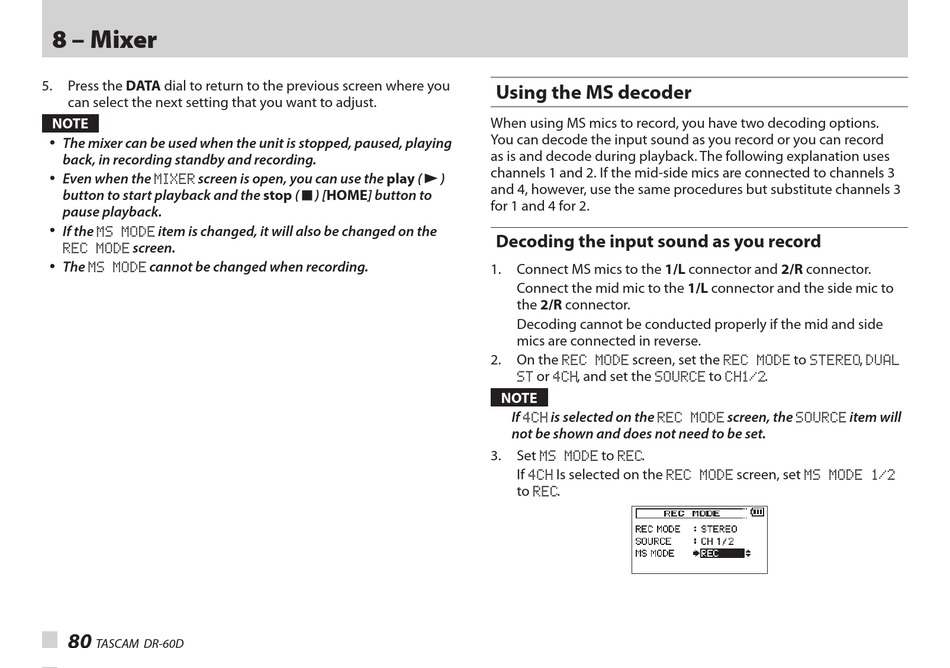

Using the MS decoder

When using MS mics to record, you have two decoding options.
You can decode the input sound as you record or you can record
as is and decode during playback. The following explanation uses
channels 1 and 2. If the mid-side mics are connected to channels 3
and 4, however, use the same procedures but substitute channels 3
for 1 and 4 for 2.

Decoding the input sound as you record

Connect MS mics to the 1/L connector and 2/R connector.
1.
Connect the mid mic to the 1/L connector and the side mic to
the 2/R connector.
Decoding cannot be conducted properly if the mid and side
mics are connected in reverse.
2. On the screen, set the
REC MODE
or , and set the
ST 4CH SOURCE
NOTE
If is selected on the
4CH REC MODE
not be shown and does not need to be set.
3. Set to .
MS MODE REC
If Is selected on the
4CH REC MODE
to .
REC
to ,
REC MODE STEREO DUAL
to .
CH1 /2
screen, the item will
SOURCE
screen, set
MS MODE 1 /2
