F. Media Placement
WARNING! Risk of Explosion! Follow media placement
instructions. Improperly placed media interfere with proper
burner operation.Fireplace will not function properly.
Delayed ignition may occur.
WARNING! Choking Hazard! Keep media out of reach
of children.
• DO NOT place media in pilot opening.
• DO NOT place media in a position that it may fall into
the pilot opening.
• DO NOT use any media other than the media supplied
with this fi replace or listed in Service Parts Section in
this manual.
• DO NOT use more than 14 lb. of media per 8000CMOD-
IPI or 12 lb. per 6000CMOD-IPI fi replace. Note: One bag
of glass contains 7 lbs.
6000CMOD-IPI: Extra 2 lbs. may be saved for future use.
1. Place media evenly on the base pan. Figure 14.9
shows properly placed media.
2. The media can only be placed in the shaded areas as
shown in Figure 14.7 and Figure 14.8.
3. Do not apply media over the pilot opening. See Figure
14.7 and Figure 14.8.
4. The rock fi xture assembly is factory installed in the
appliance. See Figure 14.4 and Figure 14.5.
5. After the media is properly installed, carefully remove
the rock fi xture assembly. Do not allow any media to
fall into the opening. See Figure 14.6.
fi xture assembly under the appliance for future use.

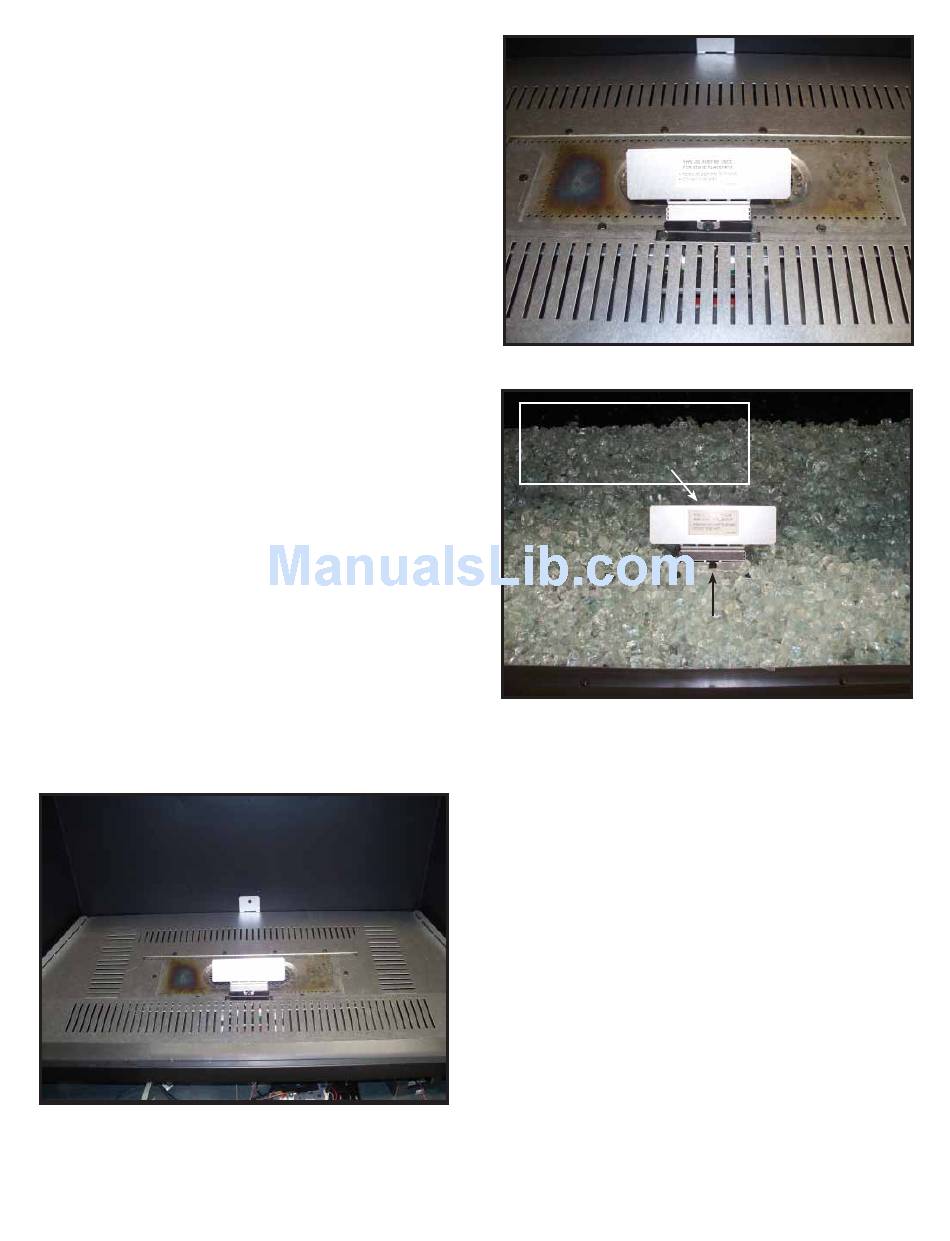

Figure 14.4 Rock Fixture Installed
Store the rock
Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13
Figure 14.5 Rock Fixture Assembly Installed
THIS JIG MUST BE USED FOR THIS JIG MUST BE USED FOR
STONE PLACEMENT STONE PLACEMENT
• REMOVE BEFORE BURNING • REMOVE BEFORE BURNING
• DO NOT DISCARD • DO NOT DISCARD
REMOVE SCREW REMOVE SCREW
Figure 14.6 Remove Rock Fixture Assembly
