10
SCAN OPERATION

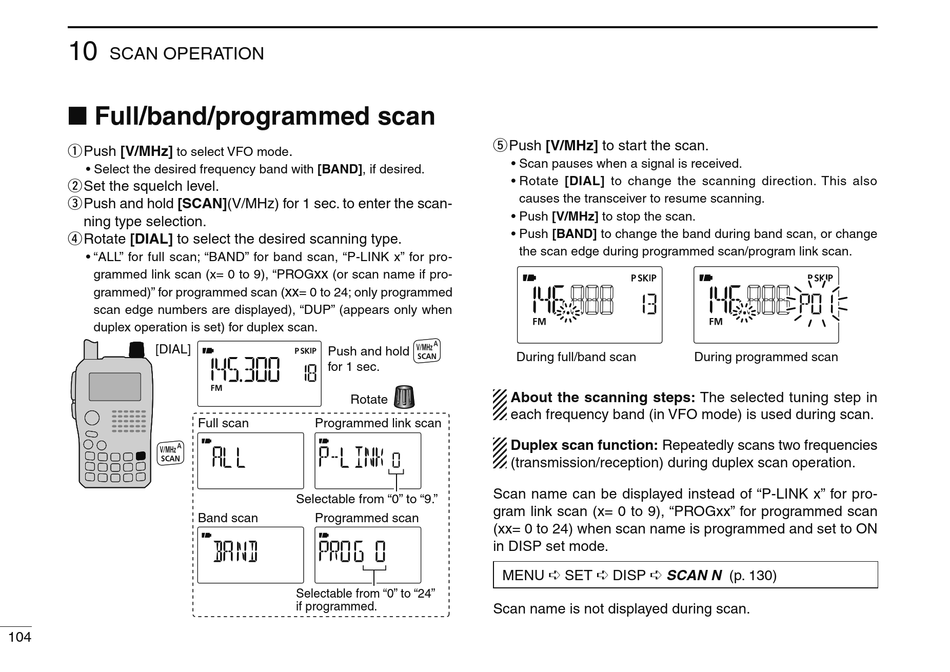

Full/band/programmed scan

q Push [V/MHz]
to select VFO mode
• Select the desired frequency band with [BAND], if desired.
w Set the squelch level.
e Push and hold [SCAN](V/MHz) for 1 sec. to enter the scan-
ning type selection.
r Rotate [DIAL] to select the desired scanning type.
• "ALL" for full scan; "BAND" for band scan, "P-LINK x" for pro-
grammed link scan (x= 0 to 9), "PROG
grammed)" for programmed scan (
scan edge numbers are displayed), "DUP" (appears only when
duplex operation is set) for duplex scan.
[DIAL]
104
.
xx
(or scan name if pro-
xx
= 0 to 24; only programmed
Push and hold
for 1 sec.
Rotate
Full scan Programmed link scan
Selectable from "0" to "9."
Band scan Programmed scan
Selectable from "0" to "24"
if programmed.
t Push [V/MHz] to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction. This also
causes the transceiver to resume scanning.
• Push [V/MHz] to stop the scan.
• Push [BAND] to change the band during band scan, or change
the scan edge during programmed scan/program link scan.
During full/band scan
About the scanning steps: The selected tuning step in
each frequency band (in VFO mode) is used during scan.
Duplex scan function: Repeatedly scans two frequencies
(transmission/reception) during duplex scan operation.
Scan name can be displayed instead of "P-LINK x" for pro-
gram link scan (x= 0 to 9), "PROGxx" for programmed scan
(xx= 0 to 24) when scan name is programmed and set to ON
in DISP set mode.
MENU SET DISP SCAN N (p. 130)
Scan name is not displayed during scan.
During programmed scan
