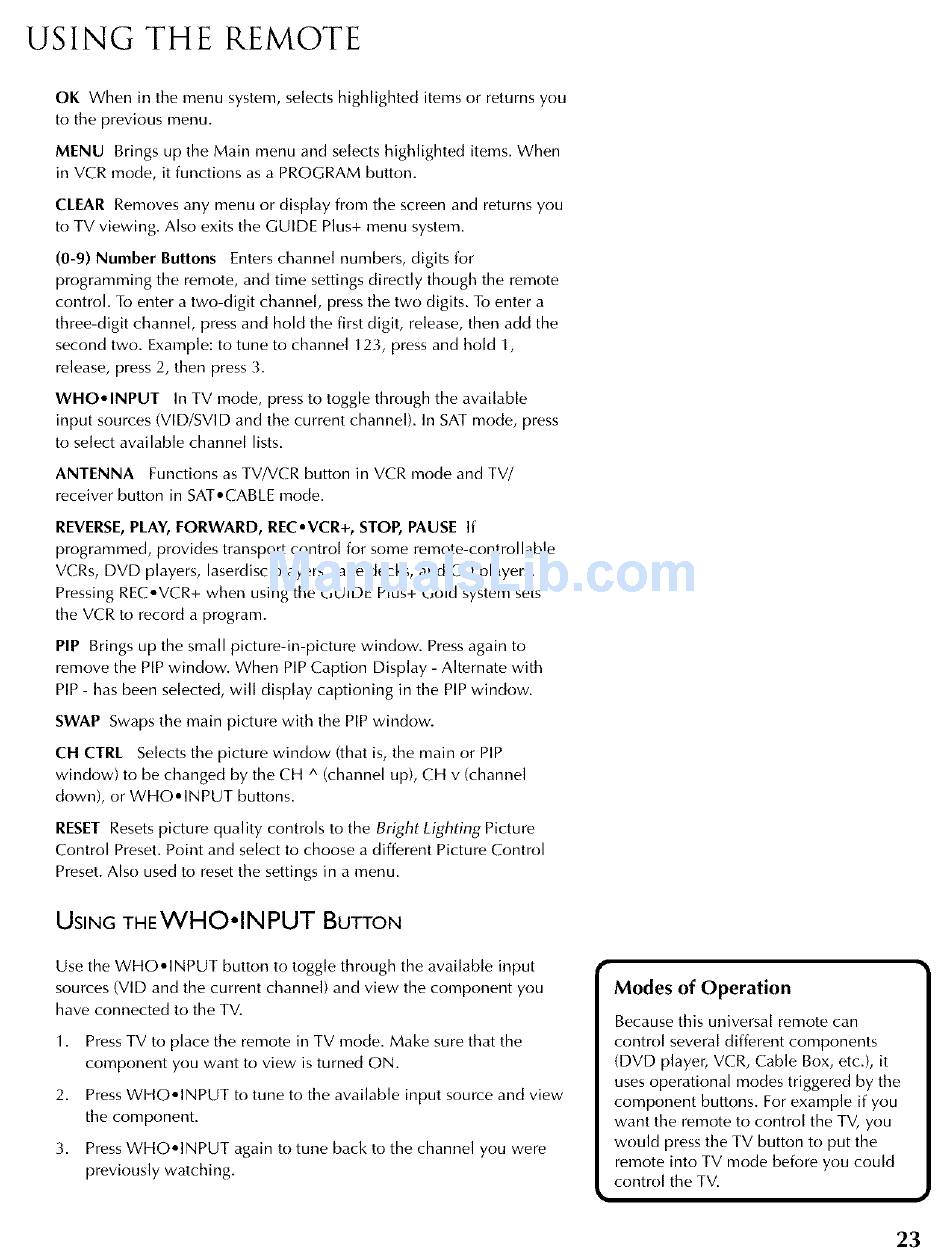

USING
THE REMOTE
OK When in the menu system, selects highlighted items or returns you
to the previous menu.
MENU
Brings up the Main menu and selects highlighted items. When
in VCR mode, it functions as a PROGRAM button.
CLEAR Removes any menu or display from the screen and returns you
to TV viewing. Also exits the GUIDE Plus+ menu system.
(0-9) Number Buttons
Enters channel numbers, digits for
programming the remote, and time settings directly though the r_Tnote
controh To enter a two-digit channel, press the two digits. To enter a
three-digit channel, pr_'ss and hold the first digit, release, then add the
second two. Example: to tune to channel 123, press and hold 1,
release, press 2, then press 3.
WHO-INPUT
In TV mode, press to toggle through the available
input sources (VID/SVID and the current channel). In SAT mode, press
to select available channel lists.
ANTENNA
Functions as TV/VCR button in VCR mode and TV/
receiver button in SAT.CABLE mode.
REVERSE,PLAY,FORWARD, REC,VCR+, STOP, PAUSE If
programmed, provides transport control for some remote-controllable
VCRs, DVD players, laserdisc players, tape decks, and CD players.
Pressing REC°VCR+ when using the GUIDE Plus+ Gold system sets
the VCR to r_'cord a program.
PIP Brings up the small picture-in-picture
window. Press again to
remove the PIP window. When PIP Caption Display - Alternate with
PIP - has been selected, will display captioning in the PIP window.
SWAP Swaps the main picture with the PIP window.
CH CTRL Selects the picture window (that is, the main or PIP
window) to be changed by the CH A (channel up), CH v (channel
down), or WHO.INPUT
buttons.
RESET Resets picture quality controls to the Bright Lighting Picture"
Control Preset. Point and select to choose a different Picture Control
Preset. Also used to reset the settings in a menu.
USING THEWHO°INPUT
BUTTON
Use the WHO°INPUT
button to toggle through the available input
sources (VID and the current channel) and view the component you
have connected to the TV.
1.
2.
3.
Press TV to place the remote in TV mode. Make sure that the
component
you want to view is turned ON.
PressWHO°INPUT
to tune to the available input source and view
the component.
Pr_'ssWHO°INPUT
again to tune back to the channel you were
previously watching.
Modes
of Operation
Because this universal remote can
control several different components
(DVD player, VCR, Cable Box, etc.), it
uses operational modes triggered by the
component buttons. For example if you
want the remote to control the TV, you
would press the TV button to put the
remote into TV mode before you could
control the TV.
23
