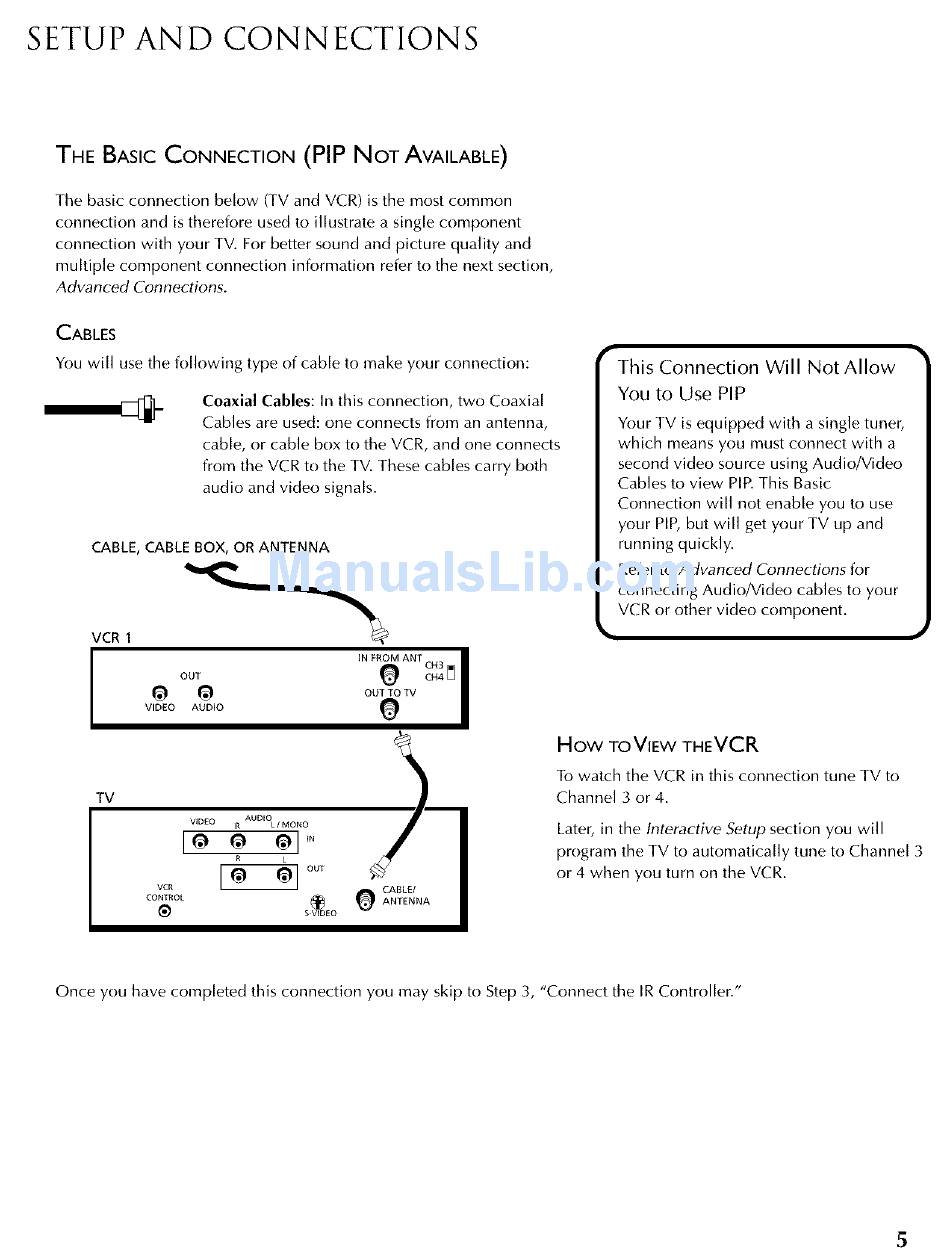

SETUP AND CONNECTIONS
THE BASIC CONNECTION
(PIP
NOT AVAILABLE)
The basic connection
below
(TV and VCR) is the most common
connection
and is therefore
used to illustrate
a single component
connection
with your TV. For better sound and picture
quality
and
multiple
component
connection
information
refer to the next section,
Advanced
Connections.
CABLES
You will use the following type of cable to make your connection:
Coaxial
Cables: In this connection,
two Coaxial
Cables are used: one connects
from an antenna,
cable, or cable box to the VCR, and one connects
from the VCR to the TV. These cables carry both
audio and video signals.
CABLE, CABLE BOX, OR ANTENNA
VCR I
iN FROM ANT CH3
I
ou_
_
c._
I
VIDEO
AUDIO
TV
V_DEO
R AUD[OL / MONO
[_ Q
R
vcR [o
°°'
CABLE/
CONmOL
(_
0
ANTENNA
_
S VIDEO
r
This Connection
Will Not Allow
You to Use PIP
Your TV is equipped with a single tuner,
which means you must connect with a
second video source using Audio/Video
Cables to view PIP. This Basic
Connection will not enable you to use
your PIP, but will get your TV up and
running quickly.
Refer to Advanced Connections for
connecting Audio/Video cables to your
VCR or other vide() component.
How
ToVIEw
THEVCR
To watch the VCR in this connection tune TV to
Channel 3 or 4.
Later, in the Interactive Setup section you will
program the TV to automatically tune to Channel 3
or 4 when you turn on the VCR.
Once you have completed this connection you may skip to Step 3, "Connect the IR Controller."
5
