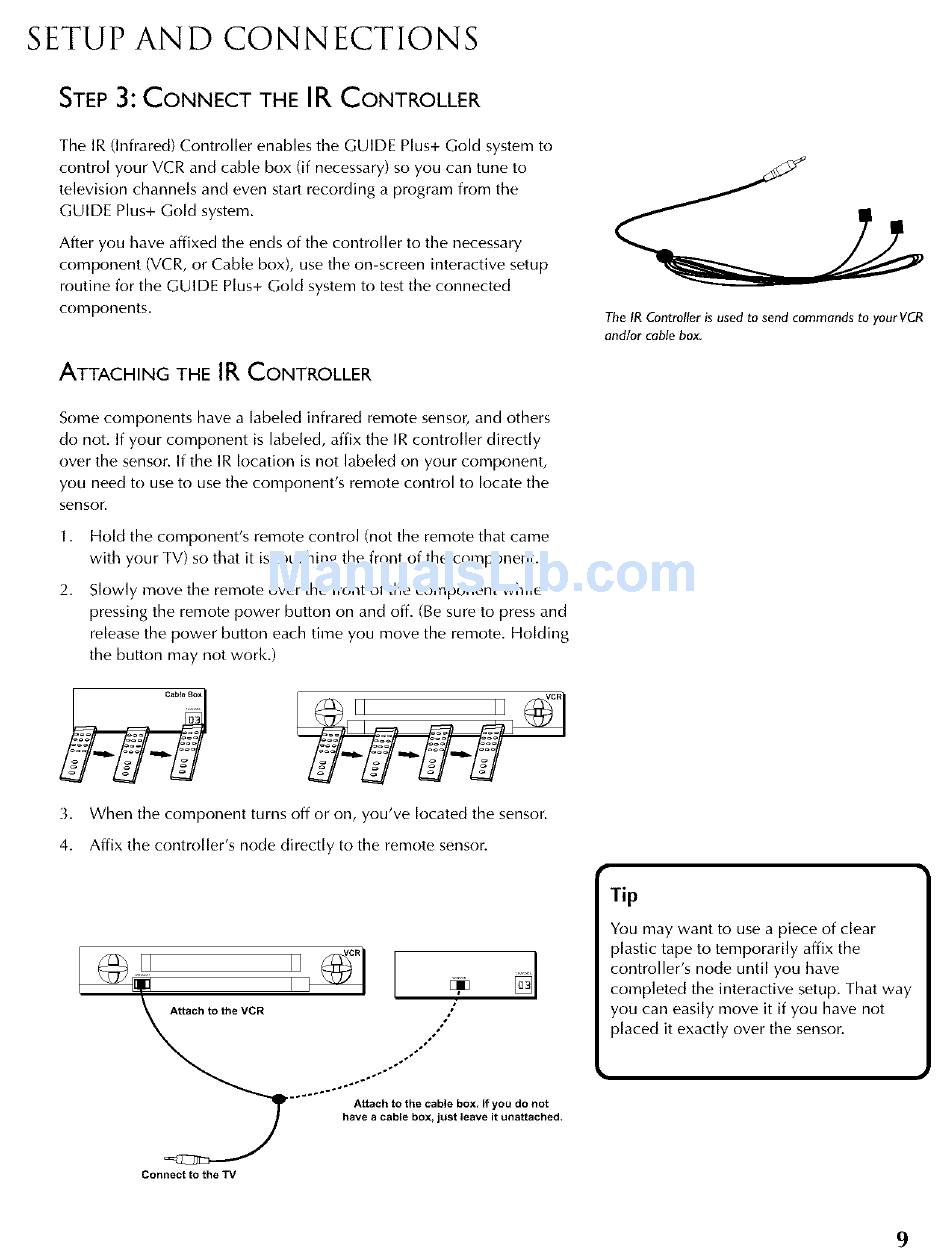

SETUP AND CONNECTIONS
STEP 3:
CONNECT
THE
IR
CONTROLLER
The IR (Infrared) Controller enables the GUIDE Plus+ Gold system to
control your VCR and cable box (if necessary) so you can tune to
television channels and even start recording a program from the
GUIDE Plus+ Gold system.
After you have affixed the ends of the controller to the necessary
component (VCR, or Cable box), use the on-screen interactive setup
routine for the GUIDE Plus+ Gold system to test the connected
components.
ATTACHING
THE
IR
CONTROLLER
The IR Controller is used to send commands to yourVCR
and/or cable box
Some components have a labeled infrared re, m ote sensor, and others
do not. If your component is labeled, affix the IR controller directly
over the sensor. If the IR location is not labeled on your component,
you need to use to use the component's remote control to locate the
sensor.
2.
Hold the component's remote control (not the remote that came
with your TV) so that it is touching the front of the component.
Slowly move the remote over the front of the component while
pressing the remote power button on and off. (Be sure, to press and
release the power button each time you move the remote. Holding
the button may not work.)
3.
4.
I © ii
ii
When the component turns off or on, you've located the sensor.
Affix the controller's node directly to the remote sensor.
ii
...... I
'
[]1
Attach
to the VCR
÷÷÷.°°°7*
'"
Attach
to the cable
box
If you do not
have
a cable
box, just
leave
it unattached,
Connect
to the TV
Tip
You may want to use a piece of clear
plastic tape to temporarily
affix the
controller's
node until you have
completed
the interactive
setup. That way
you can easily move it if you have not
placed it exactly
over the sensor.
