ASSE
L!
STEP
3 OF
6

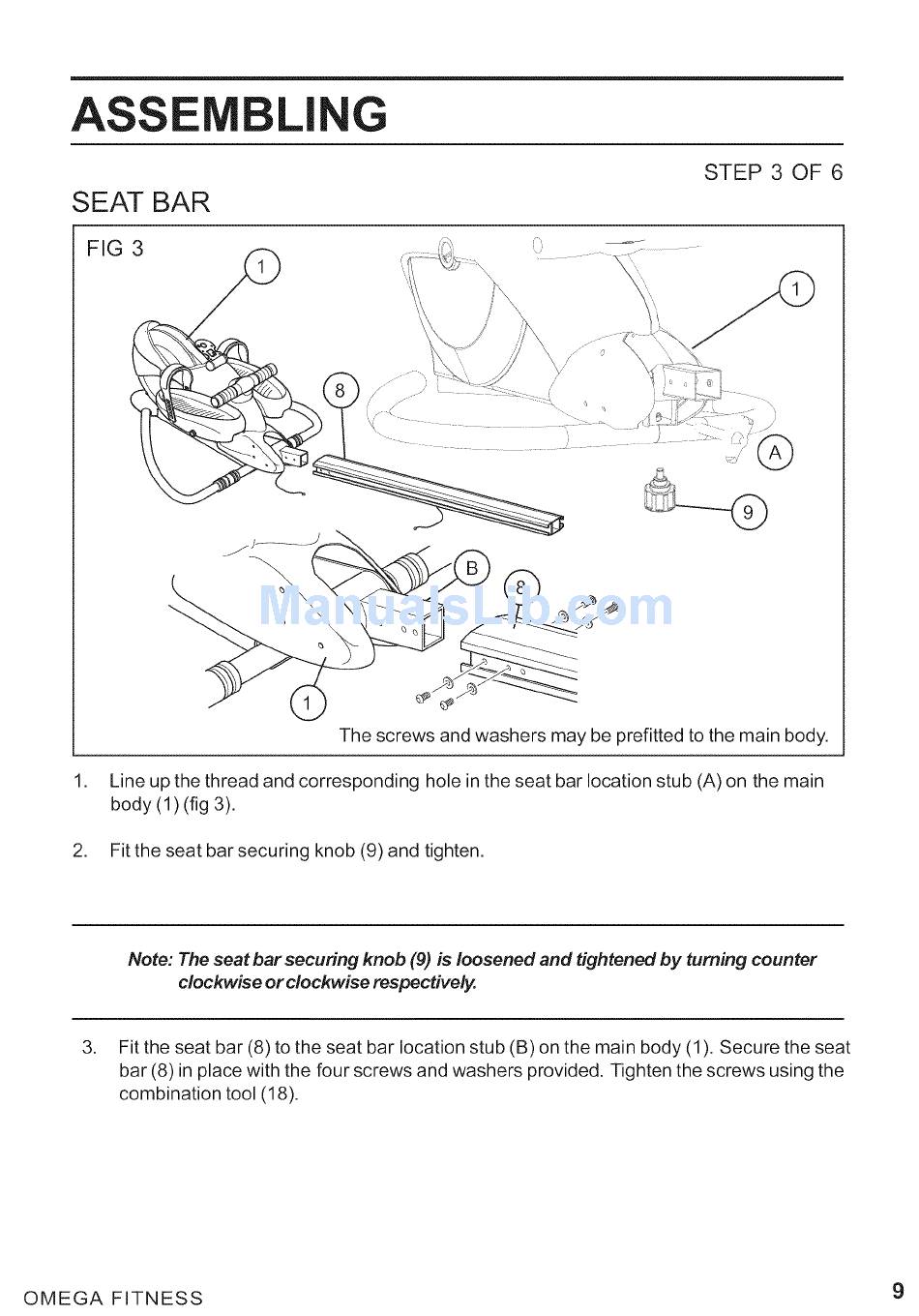

SEAT BAR
FIG 3
'"
--
/
The screws and washers
may be prefitted to the main body.
1.
Line up the thread and corresponding
hole in the seat bar location stub (A) on the main
body (1) (fig 3).
2.
Fit the seat bar securing knob (9) and tighten.
Note:
The seat bar securing
knob
(9) is loosened
and tightened
by turning
counter
clockwise
or clockwise
respectively.
3.
Fit the seat bar (8) to the seat bar location stub (B) on the main body (1). Secure the seat
bar (8) in place with the four screws and washers provided. Tighten the screws using the
combination
tool (18).
OMEGA
FITNESS
9
