ASS
G

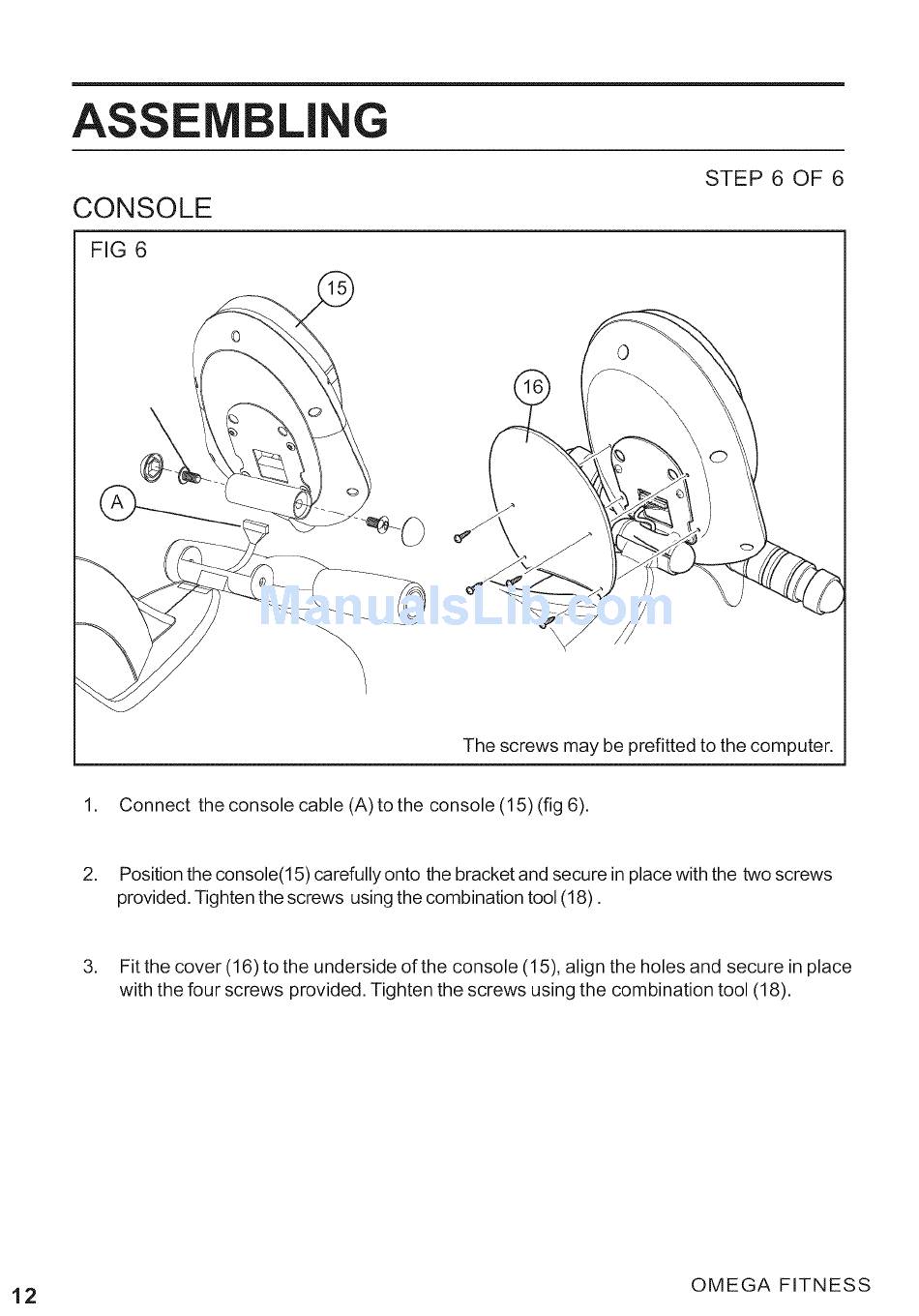

STEP 6 OF 6
CONSOLE
FIG 6
The screws may be prefitted to the computer.
1.
Connect
the console cable (A) to the console (15) (fig 6).
2.
Position the console(15) carefully onto the bracket and secure in place with the two screws
provided. Tighten the screws using the combination tool (18).
3.
Fit the cover (16) to the underside of the console (15), align the holes and secure in place
with the four screws provided. Tighten the screws using the combination
tool (18).
1 2
OMEGA
FITNESS
