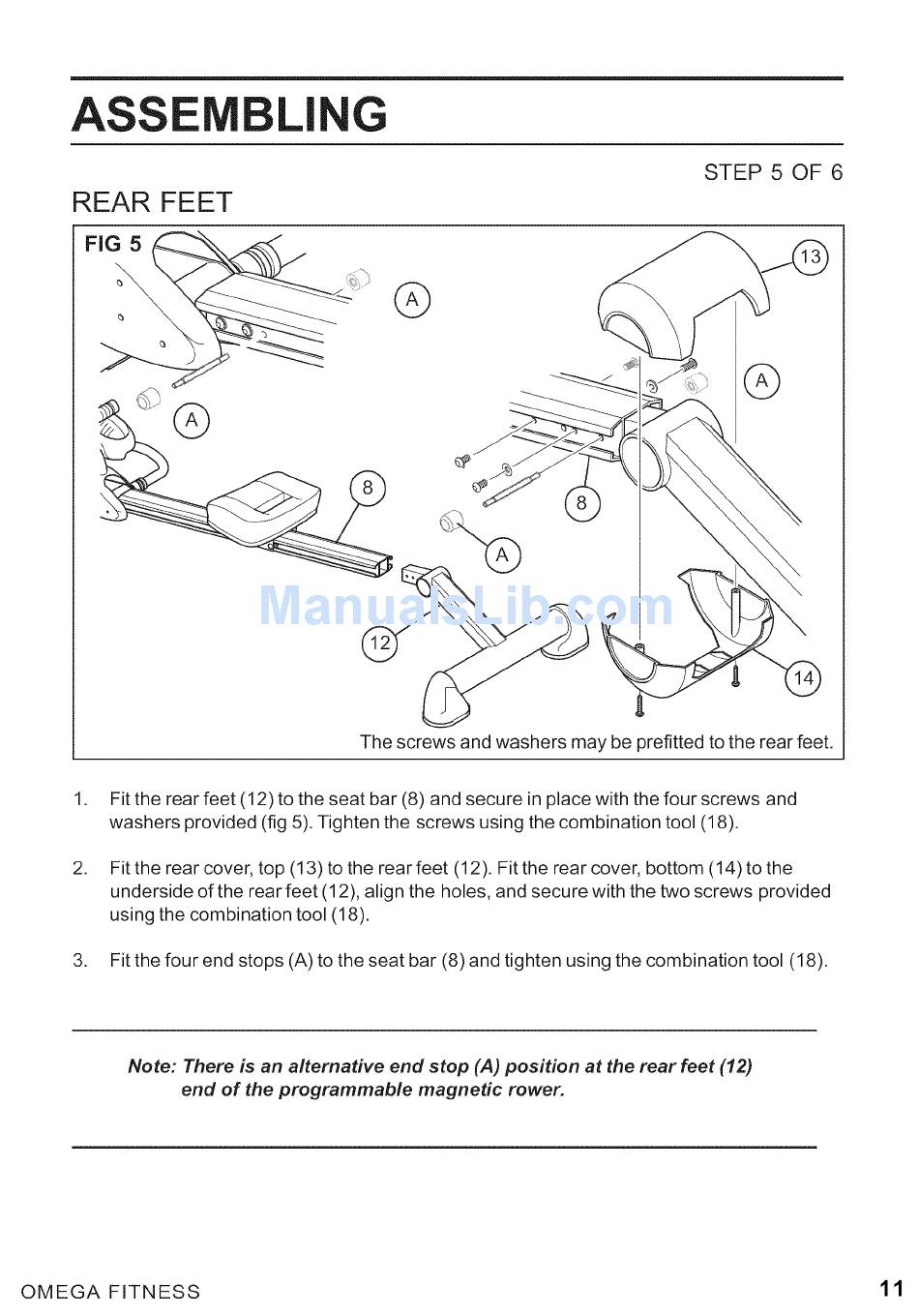

ASSE
L!
STEP
5 OF
6
REAR FEET
FIG
5
i
G
The screws and washers may be prefitted to the rear feet.
.
.
Fit the rear feet (12) to the seat bar (8) and secure in place with the four screws and
washers provided (fig 5). Tighten the screws using the combination
tool (18).
Fit the rear cover, top (13) to the rear feet (12). Fit the rear cover, bottom (14) to the
underside of the rear feet (12), align the holes, and secure with the two screws provided
using the combination
tool (18).
3.
Fit the four end stops (A) to the seat bar (8) and tighten using the combination
tool (18).
Note:
There
is an alternative
end stop
(A) position
at the rear
feet (12)
end
of the programmable
magnetic
rower.
OMEGA
FITNESS
11
