ASS G

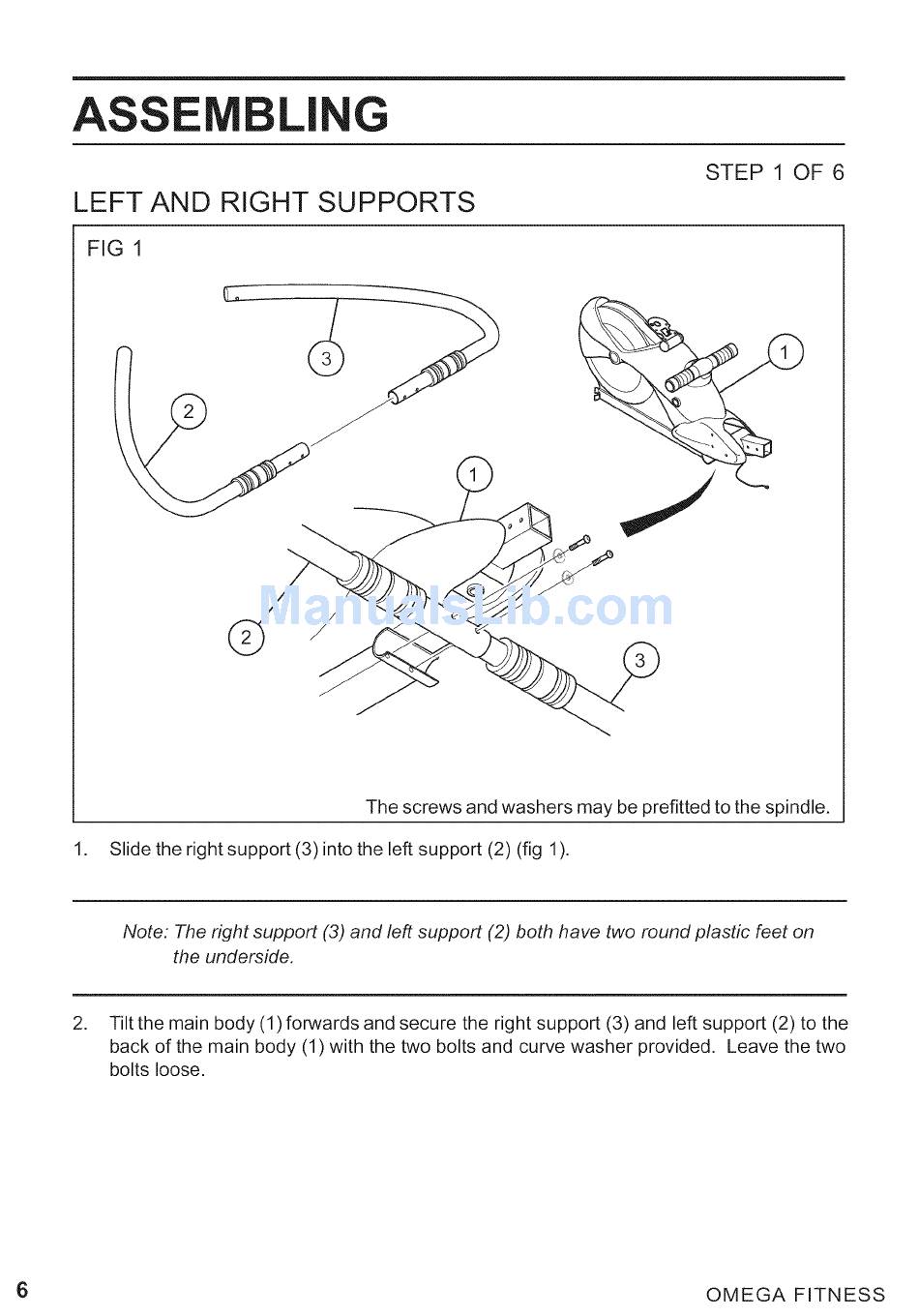

STEP 1 OF 6
LEFT AND RIGHT SUPPORTS
FIG 1
C
The screws and washers may be prefitted to the spindle.
1. Slide the right support (3) into the left support (2) (fig 1).
.
Note: The right support (3) and left support (2) both have two round plastic feet on
the underside.
Tilt the main body (1) forwards and secure the right support (3) and left support (2) to the
back of the main body (1) with the two bolts and curve washer provided. Leave the two
bolts loose.
6 OMEGA FITNESS
