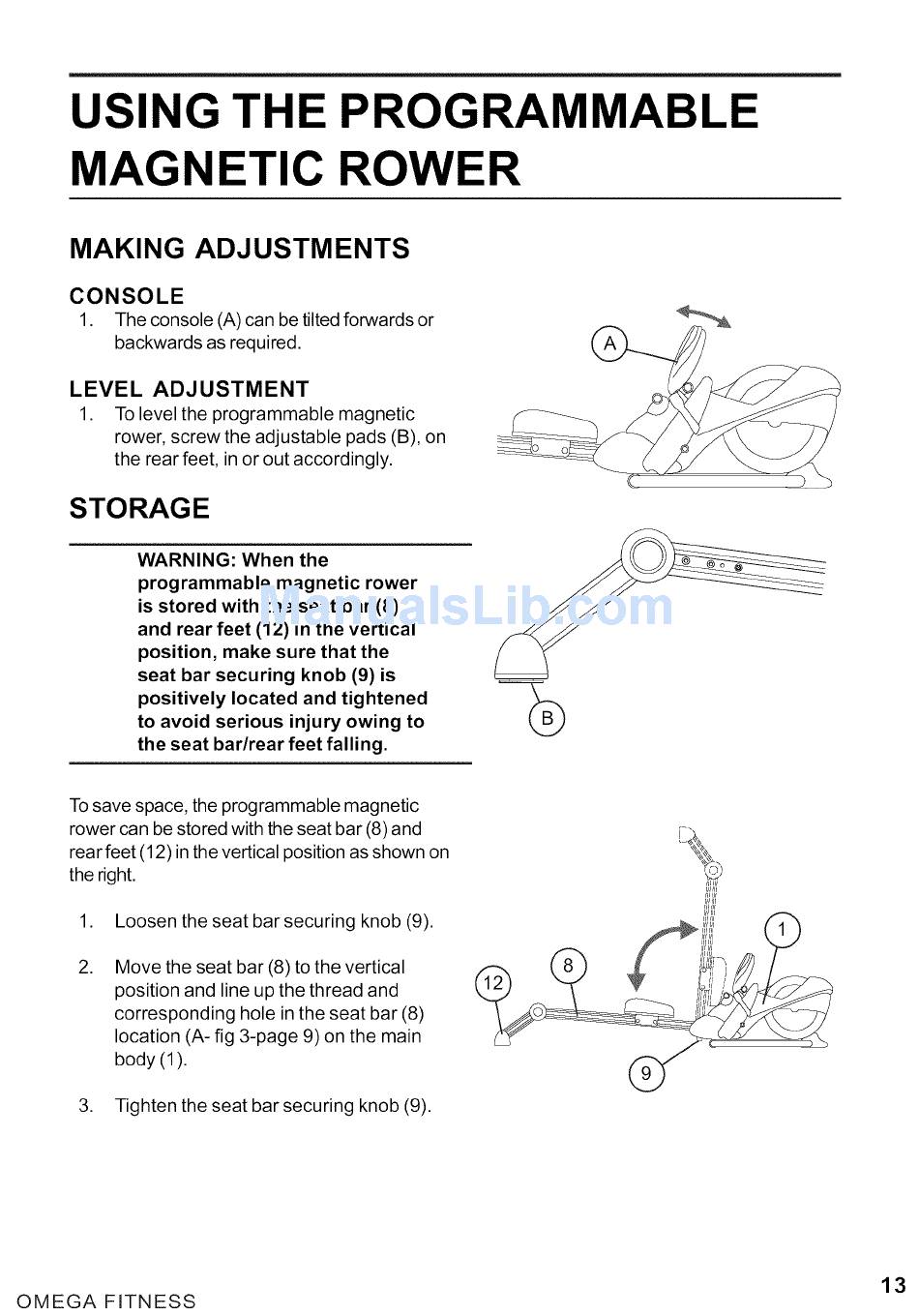

USING THE PROGRAMMABLE
MAGNETIC ROWER
MAKING ADJUSTMENTS
CONSOLE
1. The console (A) can be tilted forwards or
backwards as required.
LEVEL ADJUSTMENT
1. To level the programmable magnetic
rower, screw the adjustable pads (B), on
the rear feet, in or out accordingly.
STORAGE
WARNING: When the
programmable magnetic rower
is stored with the seat bar (8)
and rear feet (12) in the vertical
position, make sure that the
seat bar securing knob (9) is
positively located and tightened
to avoid serious injury owing to
the seat bar/rear feet falling.
To save space, the programmable magnetic
rower can be stored with the seat bar (8) and
rear feet (12) in the vertical position as shown on
the right.
1. Loosen the seat bar securing knob (9).
,
Move the seat bar (8) to the vertical
position and line up the thread and
corresponding hole in the seat bar (8)
location (A- fig 3-page 9) on the main
body (1).
3. Tighten the seat bar securing knob (9).
13
OMEGA FITNESS
