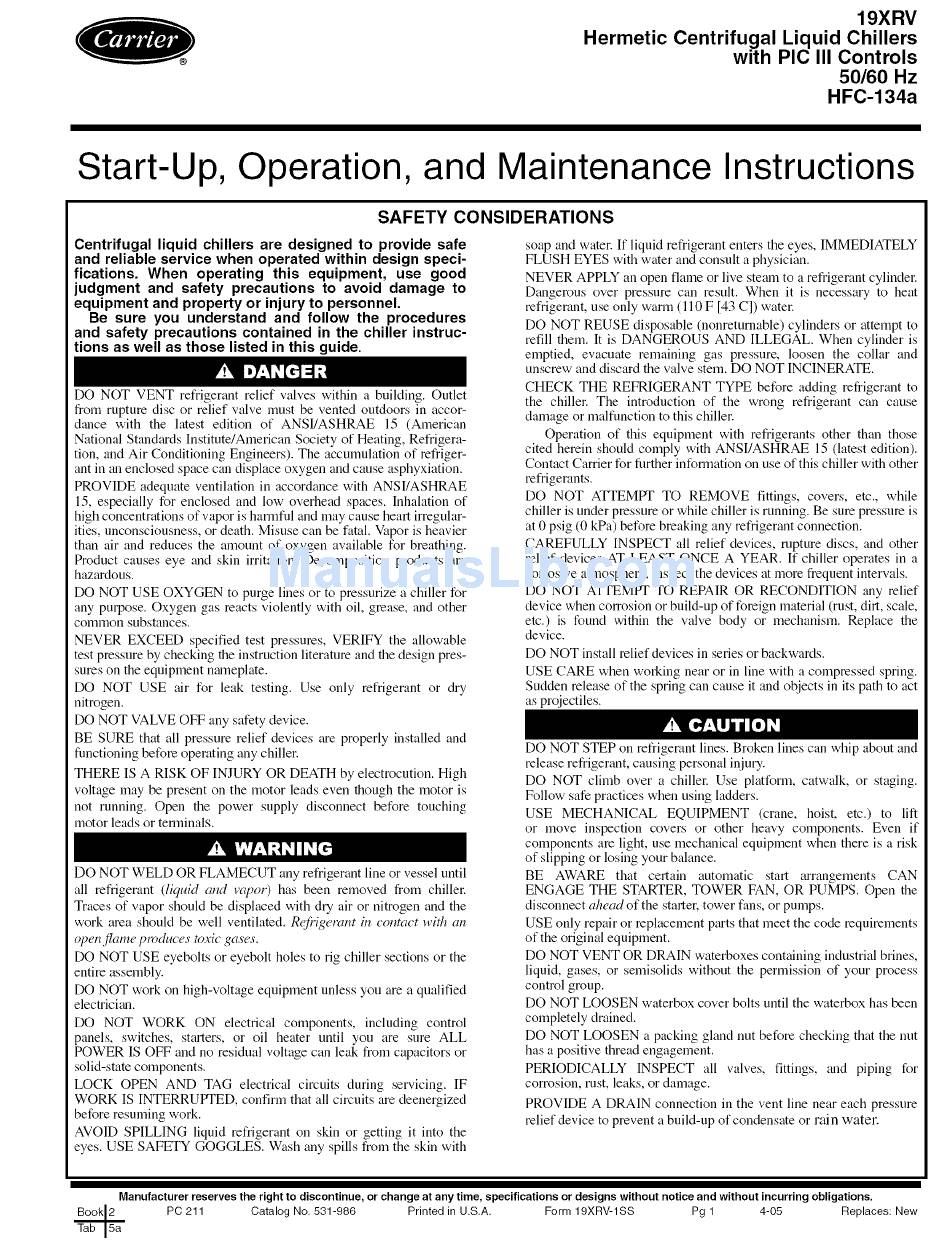

19X RV
Hermetic
Centrifugal
Liquid Chillers
with PIC III Controls
50/60 Hz
HFC-134a
Start-Up, Operation, and Maintenance
Instructions
SAFETY
CONSIDERATIONS
Centrifugal
liquid chillers are designed to provide safe
and reliable service when operated within design speci-
fications.
When operating
this equipment,
use good
judgment
and safety precautions
to avoid damage to
equipment and property or injury to personnel.
Be sure you understand
and follow
the procedures
and safety precautions
contained in the chiller instruc-
tions as well as those listed in this guide.
DO NOT
VENT refrigerant
relief valves within
a buikting.
Outlet
from rupture disc or relief valve must be vented outdoors
in accor-
dance
with
the
latest
edition
of ANSI/ASHRAE
15 (American
National
Standards
Institute/American
Society of Heating,
Refrigera-
tion, and Air Conditioning
Engineers).
The accumulation
of refriger-
ant in an enclosed
space can displace oxygen
and cause asphyxiation.
PROVIDE
adequate
ventilation
in accordance
with ANSI/ASHRAE
15, especially
for enclosed
and low overhead
spaces.
Inhalation
of
high concentrations
of vapor is hamlfill and may cause heart irregular-
ities, nnconsciousness,
or death. Misuse can be fatal. Vapor is heavier
than air and rednces
the amonnt of oxygen
available
for breathing.
Product
causes
eye and skin irritation.
Decomposition
products
are
hazardous.
DO NOT USE OXYGEN
to purge lines or to pressurize
a chiller for
any purpose.
Oxygen
gas reacts violently
with oil, grease,
and other
COlnlllOn
substances.
NEVER
EXCEED
specified
test pressures,
VERIFY
the allowable
test pressure by checking
the instruction
literature and the design pres-
sures on the equipment
nameplate.
DO NOT
USE
air for leak testing.
Use only
refrigerant
or dry
nitrogen.
DO NOT VALVE OFF any safety device.
BE SURE that all pressure
relief devices
are properly
installed and
fimctioning
before operating
any chiller.
THERE
IS A RISK OF INJURY OR DEATH by electrocution.
High
voltage
may be present
on the motor leads even though
the motor is
not running.
Open
the power
supply
disconnect
before
touching
motor leads or terminals.
DO NOT WELD OR FLAMECUT
any refrigerant
line or vessel until
all refrigerant
(liquM
atM V'al)or) has been
removed
from
chiller.
Traces of vapor should be displaced
with dry air or nitrogen
and the
work area should be well ventilated.
R@'ixemm
in contact
_Hth an
o!)et_flame prodHc_,s toxic gaxes.
DO NOT USE eyebolts
or eyebolt
holes to rig chiller sections
or the
entire assembly.
DO NOT work on high-voltage
equipment
unless yon are a qualified
electrician.
DO
NOT
WORK
ON
electrical
components,
including
control
panels,
switches,
starters,
or oil
heater
until
you
are
sure ALL
POWER
IS OFF and no residual voltage
can leak from capacitors
or
solid-state
components.
LOCK
OPEN
AND
TAG
electrical
circuits
during
servicing.
IF
WORK
IS INTERRUPTED,
confirm
that all circuits
are deenergized
before resuming
work.
AVOID
SPILLING
liquid refrigerant
on skin or getting
it into the
eyes. USE SAFETY
GOGGLES.
Wash any spills from the skin with
soap and water. If liqnid refrigerant enters the eyes, IMMEDIATELY
FLUSH EYES with water and consult a physician.
NEVER APPLY an open flame or live steam to a refrigerant cylinder.
Dangerous over pressure can result. When it is necessary to heat
refrigerant, use only warm (110 F D3 C]) water.
DO NOT REUSE disposable (nonreturnable) cylinders or attempt to
refill them. It is DANGEROUS AND ILLEGAL. When cylinder is
emptied, evacuate remaining gas pressure, loosen the collar and
unscrew and discard the valve stem. DO NOT INCINERATE.
CHECK THE REFRIGERANT TYPE before adding refrigerant to
the chiller. The introdnction of the wrong refrigerant can cause
damage or malfunction to this chiller.
Operation of this equipment with refrigerants other than those
cited herein should comply with ANSI/ASHRAE 15 (latest edition).
Contact Carrier for timber information on use of this chiller with other
refrigerants.
DO NOT ATTEMPT TO REMOVE fittings, covers, etc., while
chiller is under pressure or while chiller is running. Be sum pressure is
at 0 psig C0kPa) before breaking any refrigerant connection.
CAREFULLY INSPECT all relief devices, rupture discs, and other
relief devices AT LEAST ONCE A YEAR. If chiller operates in a
corrosive atmosphere, inspect the devices at morn frequent intervals.
DO NOT ATTEMPT TO REPAIR OR RECONDITION any relief
device when corrosion or build-up of foreign material (rust, dirt, scale,
etc.) is found within the valve body or mechanism. Replace the
device.
DO NOT install relief devices in series or backwards.
USE CARE when working near or in line with a compressed spring.
Sudden release of the spring can cause it and objects in its path to act
as projectiles.
DO NOT STEP on refrigerant lines. Broken lines can whip about and
release refrigerant, causing personal injury.
DO NOT climb over a chiller. Use platform, catwalk, or staging.
Follow safe practices when using ladders.
USE MECHANICAL
EQUIPMENT
(crone, hoist, etc.) to lilt
or move inspection covers or other heax.y components. Even if
components are light, use mechanical equipment when there is a risk
of slipping or losing your balance.
BE AWARE that certain
automatic
start arrangements
CAN
ENGAGE THE STARTER, TOWER FAN, OR PUMPS. Open the
disconnect ahead of the starter, tower fans, or pumps.
USE only repair or replacement parts that meet the code requirements
of the original equipment.
DO NOT VENT OR DRAIN waterboxes containing industrial brines,
liquid, gases, or semisolids withont the permission of your process
control group.
DO NOT LOOSEN waterbox cover bolts until the waterbox has been
completely drained.
DO NOT LOOSEN a packing gland nut before checking that the nut
has a positive thread engagement.
PERIODICALLY
INSPECT
all valves, fittings, and piping for
corrosion, rest, leaks, or damage.
PROVIDE A DRAIN connection in the vent line near each pressure
relief device to prevent a build-up of condensate or rain watec
Manufacturer
reserves the right to discontinue, or change at any time, specifications
or designs without notice and without incurring obligations.
PC 211
Catalog No. 531-986
Printed in U.S.A.
Form 19XRV-1SS
Pg 1
4-05
Replaces:
New
