Installing Application Using Ricoh Web Admin (Recommended) - Ricoh Aficio MP C2050 User Manual

PaperCut – Ricoh Embedded Manual

2.2.10 Installing Application using Ricoh Web Admin (Recommended)

Web installation provides a convenient way to install the embedded application. It can be
done remotely on multiple devices using just a web browser. This is the simplest way to
install the embedded application.
2.2.10.1 Prepare the application ZIP file
The first step is to create an application ZIP file which will be uploaded to the MFP device.
1.
On the PaperCut server, open the directory that contains the embedded application:
2. Open the "connection.properties" file in this folder and verify the "server-name" and
"server-ip" are set to the network name and address of the PaperCut server. It is
recommended to set the "server-name" to a name that can be resolved by the Ricoh
copier (e.g. the DNS name of the PaperCut server).
3. Use a ZIP tool to create a zip file containing all the files in the above directory. The
name of the ZIP file name is not important.
4. Copy the ZIP file to location where you will perform the installation from (i.e. any
workstation with network access to the Ricoh devices).
2.2.10.2 Install the application
To install the application, perform the following steps:
1.
On a computer, open your web browser
2.
Enter the URL of the Ricoh device. E.g. http://ricoh-device-ip/
3.
Click the "Login" link at the top right of the page.
4.
Enter the device administrator username and password, and press "Login".
5.
Select the "Configuration" from the left menu (For SDK 10.x+ devices, this is under
"Device Management" )

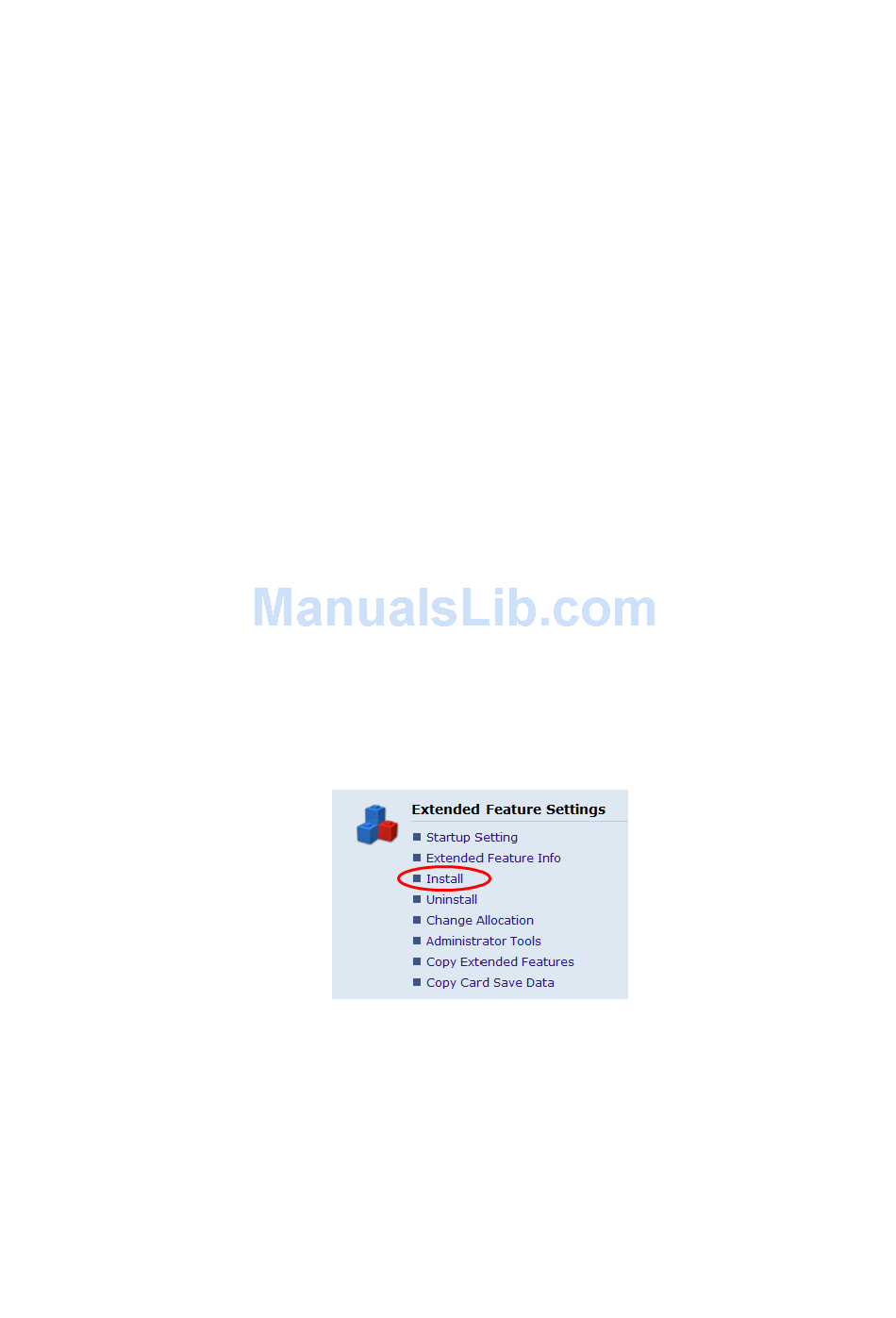

6. Select the "Extended Feature Settings -> Install" link (see below)
7. Select the "Local File" option, then press the "Browse..." button and select the
embedded application ZIP file. Then press the "Display Extended Feature
Copyright © 2012 PaperCut Software International Pty. Ltd., All Rights Reserved.
Revision: 19
[app-dir]\providers\hardware\ricoh\403046912
2012-10-26
12 of 41
