10.

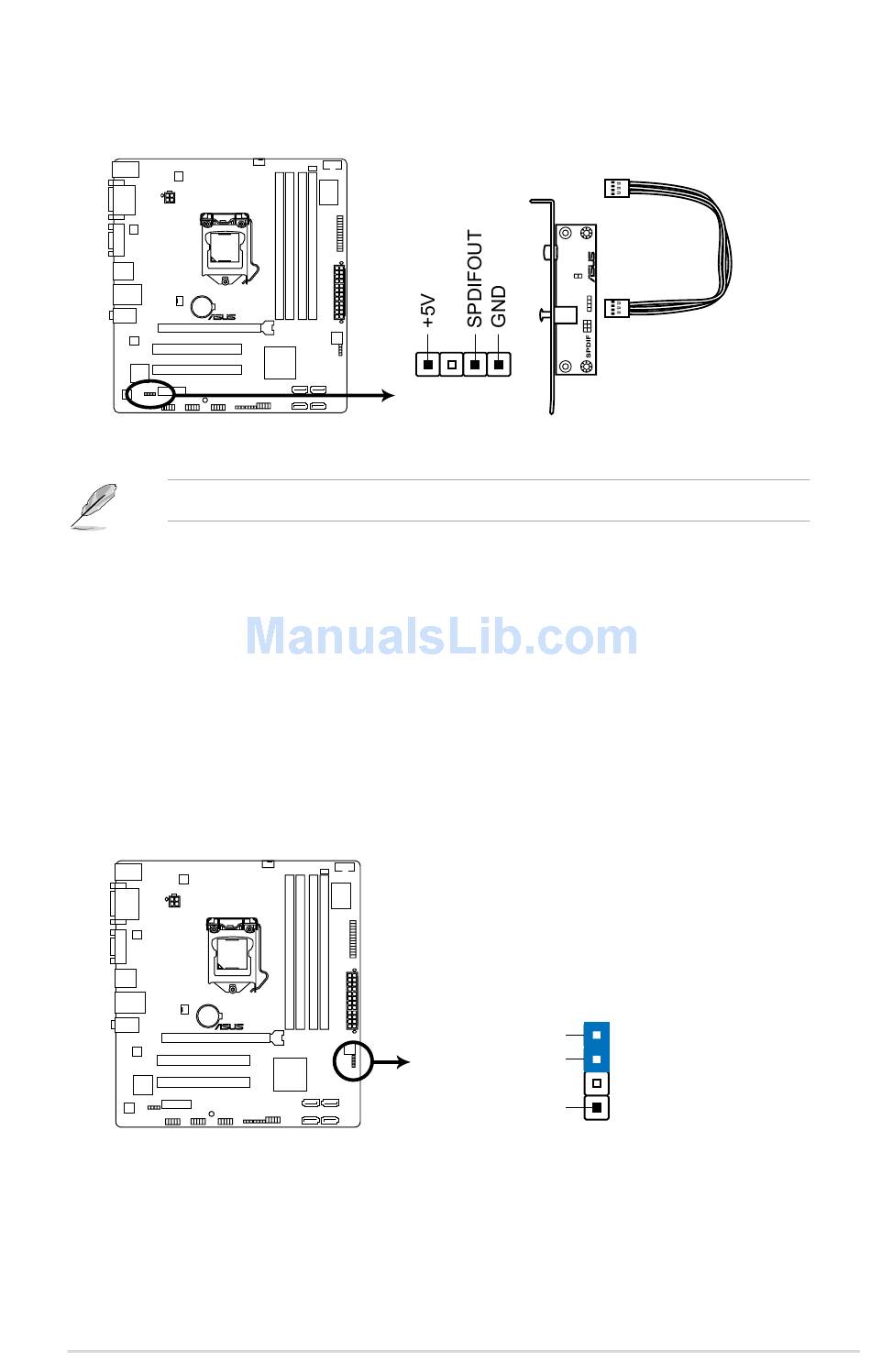

Digital audio connector (4-1 pin SPDIF_OUT)
This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port.
P8H61-M2/TPM/SI
P8H61-M2/TPM/SI Digital audio connector
The S/PDIF module is purchased separately.
11.
Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled "Chassis Signal" and "Ground" are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
P8H61-M2/TPM/SI
P8H61-M2/TPM/SI Chassis intrusion connector
Chapter 1: Product introduction
SPDIF_OUT
CHASSIS
GND
Chassis Signal
+5VSB_MB
1-15
