Motherboard overview
1.2.1

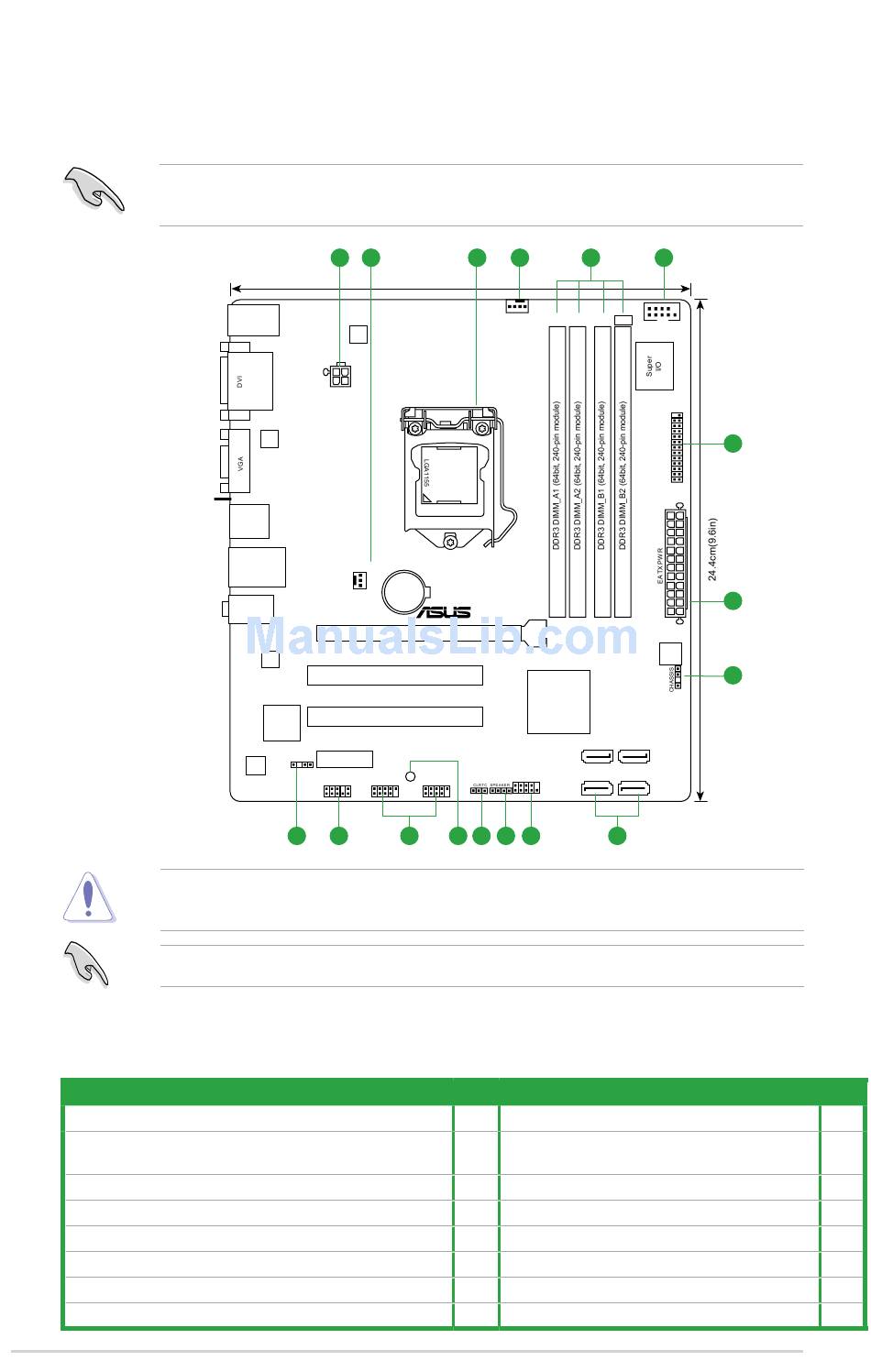

Motherboard layout
Ensure that you install the motherboard into the chassis in the correct orientation. The edge
with external ports goes to the rear part of the chassis.
Place this side towards
the rear of the chassis.
Place eight screws into the holes indicated by circles to secure the motherboard to the
chassis. DO NOT overtighten the screws! Doing so can damage the motherboard.
The TPM chip is available in P8H61-M2/TPM/SI only.
1.2.2
Layout contents
Connectors/Jumpers/Slots/LED
1.
ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
2.
CPU and Chassis fan connectors (4-pin CPU_FAN, 3-pin
CHA_FAN)
3.
LGA775 CPU socket
4.
DDR3 DIMM slots
5.
Serial port connector (10-1 pin COM1)
6.
LPT connector (26-1 pin LPT)
7.
Chassis intrusion connector (4-1 pin CHASSIS)
8.
Serial ATA connectors (7-pin SATA3G1-4)
1-2
1
2
KB_USB56
EPU
ATX12V
ASM
1442
USB34
LAN1_USB12
CHA_FAN
Lithium Cell
CMOS Power
AUDIO
PCIEX16_1
P8H61-M2/TPM/SI
RTL
8111E
PCI1
PCI2
ASM
1083
SPDIF_OUT
PCIEX1_1
VIA
1708S
SB_PWR
USB910
AAFP
15
14
3
2
22.9cm(9.0in)
CPU_FAN
Intel
H61
F_PANEL
USB78
13
12
11
10
9
Page Connectors/Jumpers/Slots/LED
1-10
9.
System panel connector (10-1 pin F_PANEL)
1-11
10 Speaker connector (4- pin SPEAKER)
1-3
11. Clear RTC RAM (3-pin CLRTC)
1-3
12. Standby power LED (SB_PWR)
1-11
13. USB connectors (10-1 pin USB78, USB910)
1-12
14. Front panel audio connector (10-1 pin AAFP)
1-15
15 Digital audio connector (4-1 pin SPDIF_OUT)
1-13
4
5
TPM
COM1
6
LPT
1
32Mb
BIOS
7
®
SATA3G_3
SATA3G_1
SATA3G_4
SATA3G_2
8
ASUS P8H61-M2 Series
Page
1-12
1-14
1-8
1-1
1-14
1-13
1-15
