8. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
9. DVI-D port. This port is for any DVI-D compatible device and is HDCP compliant
allowing playback of HD DVD, Blu-ray, and other protected content.
10. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports connect to
USB 2.0/1.1 devices.
1.7.2

Internal connectors

1. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are
designed to fit these connectors in only one orientation. Find the proper orientation and
push down firmly until the connectors completely fit.
P8H61-M2/TPM/SI

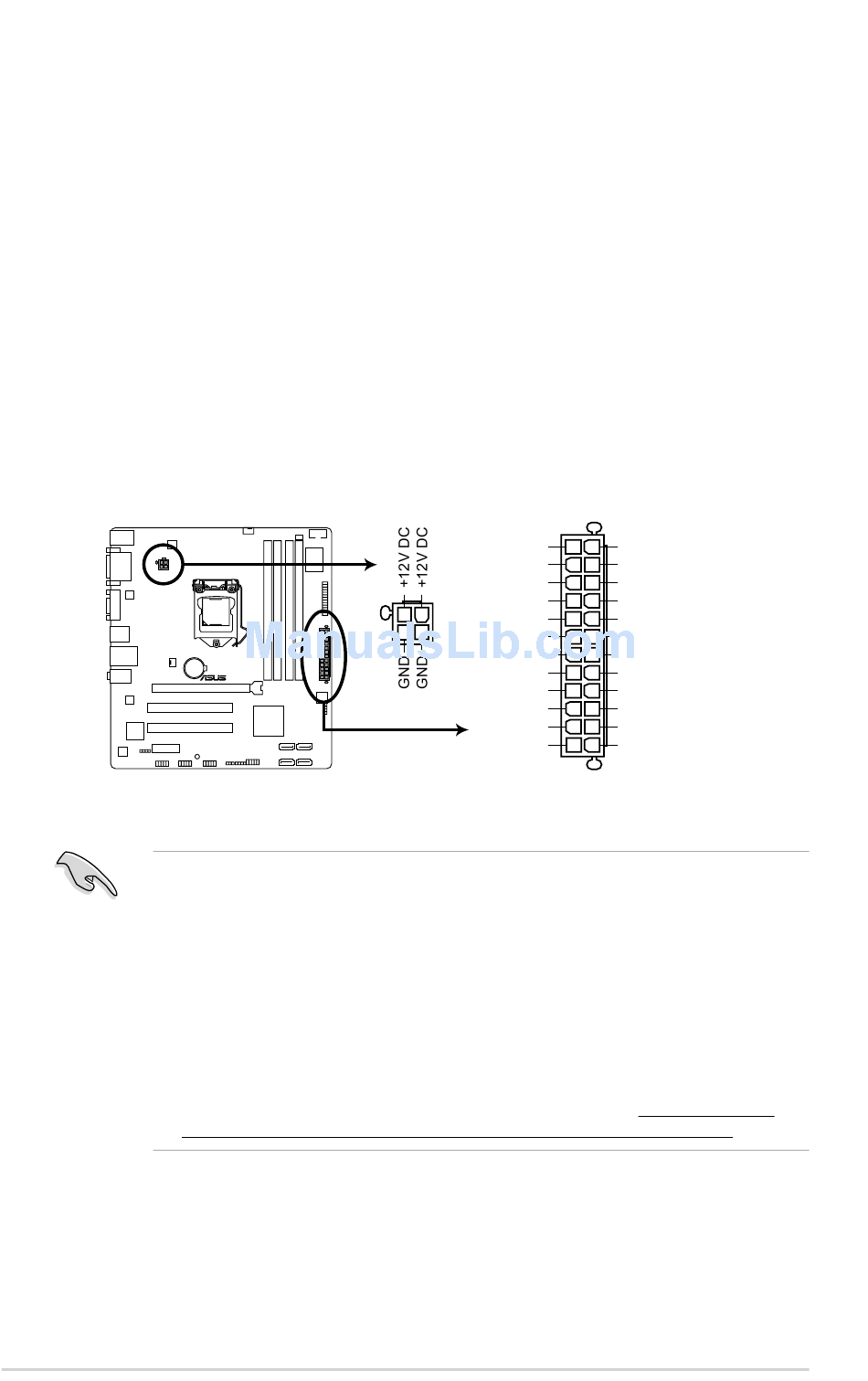

P8H61-M2/TPM/SI ATX power connectors
• For a fully configured system, we recommend that you use a power supply unit (PSU)
• DO NOT forget to connect the 4-pin ATX12V power plug. Otherwise, the system will not
• We recommend that you use a PSU with a higher power output when configuring a
• If you are uncertain about the minimum power supply requirement for your system,
1-10
that complies with ATX 12V Specification 2.0 or later version and provides a minimum
power of 400W.
boot.
system with more power-consuming devices or when you intend to install additional
devices. The system may become unstable or may not boot up if the power is
inadequate.
refer to the Recommended Power Supply Wattage Calculator at http://support.asus.
com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.
ATX12V
EATXPWR
+3 Volts
+12 Volts
+12 Volts
+5V Standby
Power OK
GND
PIN 1
+5 Volts
GND
+5 Volts
GND
+3 Volts
+3 Volts
PIN 1
GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts
