19. With the assistance of another person, and while supporting the overlay, loosen both
adjustment handles, vertically adjust the overlay so that you can see most of the flat-panel
display's screen, and then tighten the handles. You will vertically adjust the overlay more
accurately in step 21.
20. With the assistance of another person, and while supporting the overlay, loosen the T-handles
on the hanger brackets, carefully slide the overlay toward the flat-panel display so that the
glass rests against the flat-panel display, and then tighten the T-handles.
CAUTION
99-00667-00 B0
You could damage the hanger bracket if you push the overlay forward with too
much force. Support the back of the hanger bracket when you slide the overlay
towards it. If this is not possible, slide the overlay as carefully as you can.

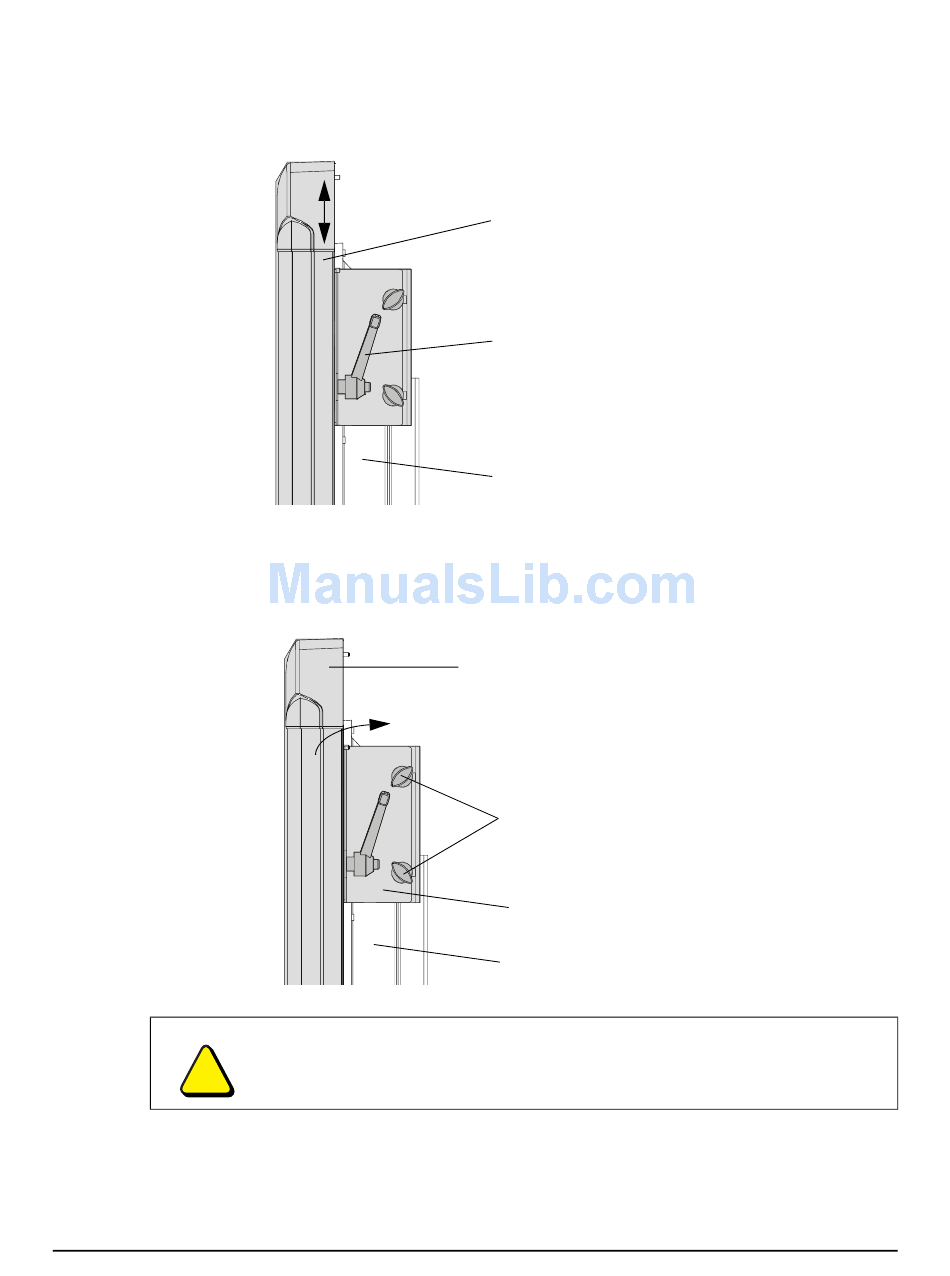

Installing the Interactive Whiteboard
Overlay
Adjustment
Handle
Flat-Panel Display
Overlay
T-handles
Hanger Bracket
Flat-Panel Display
