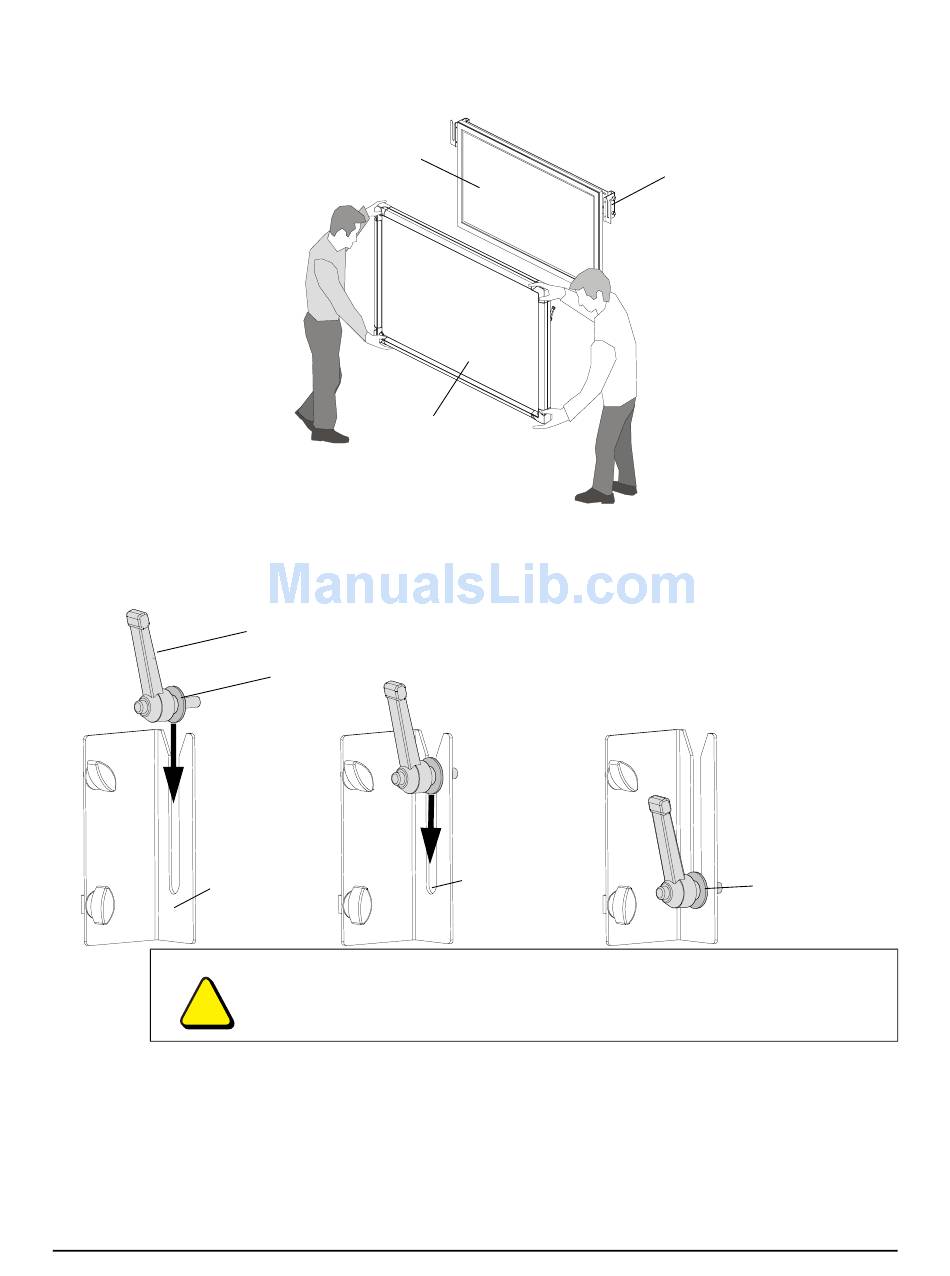

18. With the assistance of another person, mount the overlay onto the flat-panel display by sliding
the adjustment handles into the U-shaped slots in the hanger brackets.
NOTE: The adjustment handle and the washer must slide behind the hanger brackets. Ensure
the handles are aligned with the hanger brackets' U-shaped slots, and temporarily tighten the
handles.
Hanger Bracket
CAUTION
14
Flat-Panel Display
Overlay
Handle
Washer
Take care when mounting and then positioning the overlay. The rear of the
overlay can be scratched if it's held tight to the flat-panel display and then
moved in any direction.
Installing the Interactive Whiteboard
Hanger Bracket
The handle
slides into the
hanger bracket's
U-shaped slot
NOTE: For clarity, the T-handle
and the hanger bracket are
shown without the overlay, flat-
panel display or the other parts
of the bracket
The washer and
the handle must be
on the same side
of the bracket
