2. With the assistance of another person, carefully remove the flat-panel display from the wall
mount or the stand, and place it facedown on a flat surface.
Flat-Panel Display
NOTE: The appearance of your flat-panel display and its adapter plate can vary from the
diagrams shown in this section. In addition, the number of bolts attaching the adapter plate to
your flat-panel display can be four, six or eight. Some figures in this section show four adapter
plate bolts and some show six, but the same steps are required regardless of the number of
bolts.

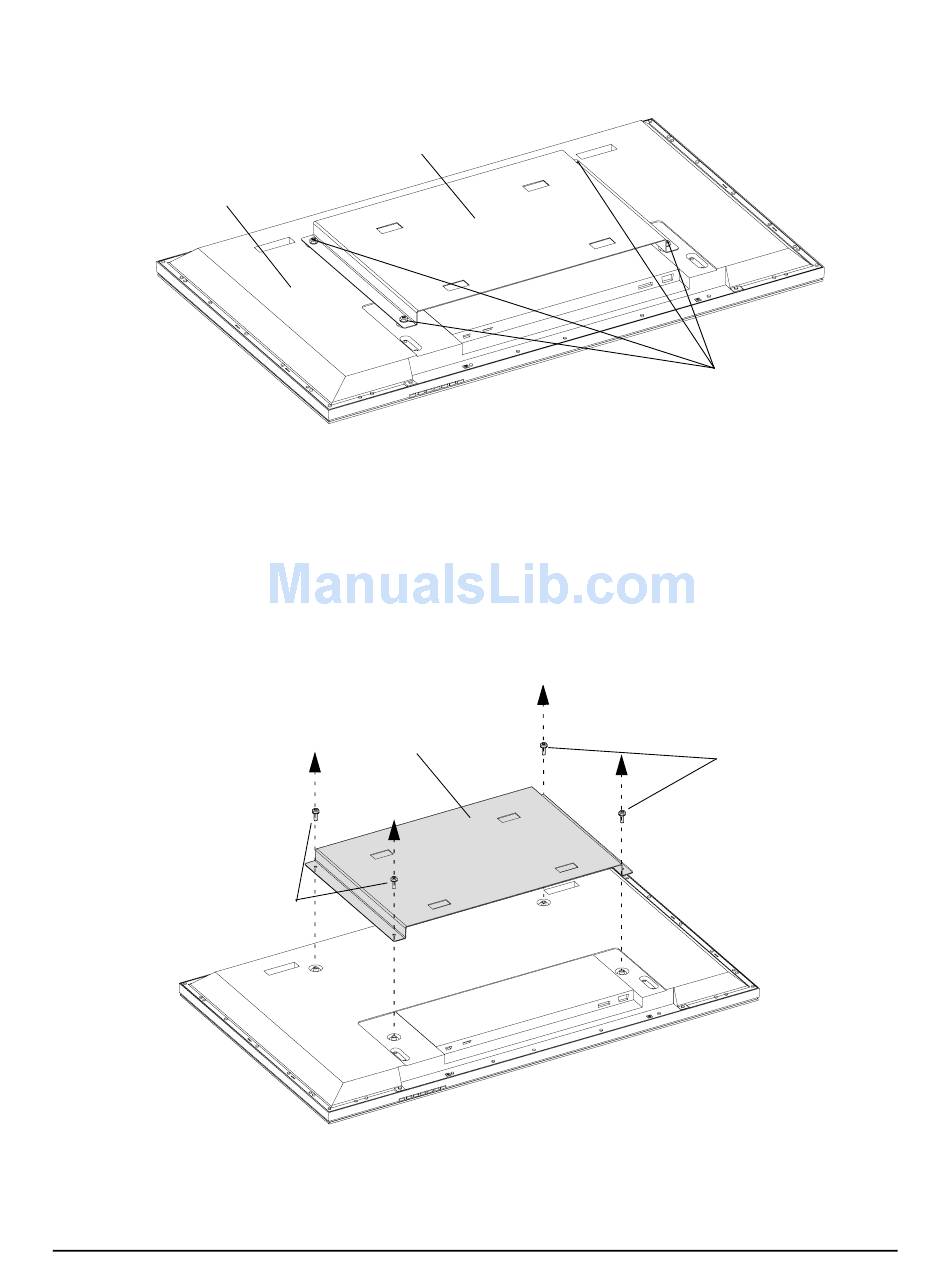

3. Remove the bolts that attach the adapter plate to the back of the flat-panel display. Put the
bolts in a safe place, as you'll use them later to reattach the adapter plate.
NOTE: The bolt type varies between different flat-panel displays. You may have received an
appropriate tool for removing these bolts with your flat-panel display.
4. Remove the adapter plate.
Adapter Plate
Bolts
NOTE: Take a moment to look at the text and the arrows on the mounting bracket's center
section.
8
Adapter Plate
Adapter Plate
Installing the Interactive Whiteboard
Adapter Plate Bolts
Adapter Plate
Bolts
