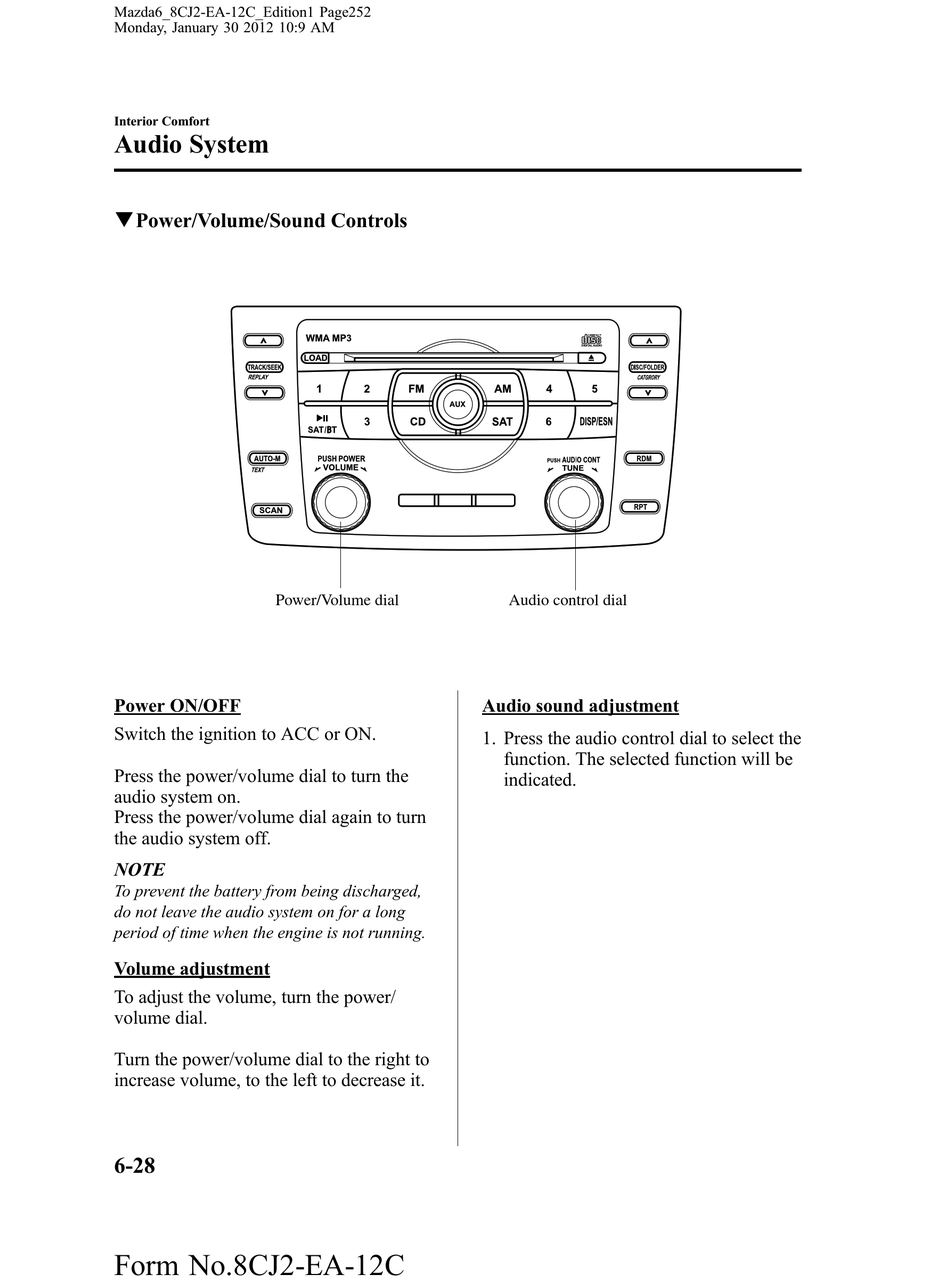

Mazda 6 Owner's Manual page 252

Mazda6_8CJ2-EA-12C_Edition1 Page252
Monday, January 30 2012 10:9 AM
Interior Comfort
Audio System
qPower/Volume/Sound Controls
Power/Volume dial
Power ON/OFF
Switch the ignition to ACC or ON.
Press the power/volume dial to turn the
audio system on.
Press the power/volume dial again to turn
the audio system off.
NOTE
To prevent the battery from being discharged,
do not leave the audio system on for a long
period of time when the engine is not running.
Volume adjustment
To adjust the volume, turn the power/
volume dial.
Turn the power/volume dial to the right to
increase volume, to the left to decrease it.
6-28
Form No.8CJ2-EA-12C
Audio control dial
Audio sound adjustment
1. Press the audio control dial to select the
function. The selected function will be
indicated.
