GA-780T-D3L
User's Manual
Rev. 3101
12ME-780TD3L-3101R

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-780T-D3L

Summary of Contents for Gigabyte GA-780T-D3L

  • Page 1 GA-780T-D3L User's Manual Rev. 3101 12ME-780TD3L-3101R...

  • Page 3: Identifying Motherboard Revision

    GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentations: For quick set-up of the product, read the Quick Installation Guide included with the product.

  • Page 4: Table Of Contents

    Table of Contents Box Contents ........................6 Optional Items .........................6 GA-780T-D3L Motherboard Layout .................7 GA-780T-D3L Motherboard Block Diagram ..............8 Chapter 1 Hardware Installation ..................9 Installation Precautions ..................9 Product Specifications ..................10 Installing the CPU and CPU Cooler ............... 13 1-3-1 Installing the CPU ....................13...
  • Page 5 Chapter 3 Drivers Installation ..................51 Installing Chipset Drivers ................51 Application Software ..................52 Technical Manuals ..................52 Contact ......................53 System ......................53 Download Center ................... 54 New Utilities ....................54 Chapter 4 Unique Features ...................55 Xpress Recovery2 ..................55 BIOS Update Utilities ..................

  • Page 6: Box Contents

    Box Contents GA-780T-D3L motherboard Motherboard driver disk User's Manual Quick Installation Guide Two SATA cables I/O Shield The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.

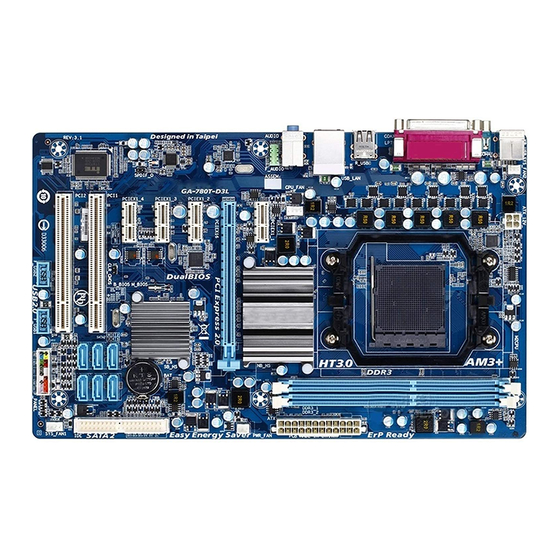

  • Page 7: Ga-780T-D3L Motherboard Layout

    GA-780T-D3L Motherboard Layout ATX_12V KB_USB SYS_FAN2 Socket AM3+ COAXIAL R_USB GA-780T-D3L CPU_FAN AUDIO AMD 760G F_AUDIO PCIEX1_1 Realtek GbE LAN PCIEX16 PWR_FAN PCIEX1_2 CODEC PCIEX1_3 AMD SB710 M_BIOS PCIEX1_4 B_BIOS CLR_CMOS PCI1 PCI2 F_PANEL F_USB2 F_USB1 - 7 -...

  • Page 8: Ga-780T-D3L Motherboard Block Diagram

    GA-780T-D3L Motherboard Block Diagram CPU CLK+/- (200 MHz) PCIe CLK AM3+/AM3 CPU (100 MHz) DDR3 1666 (O.C.)/1333/1066 MHz Dual Channel Memory 1 PCI Express x16 Hyper Transport 3.0 PCI Express x16 AMD 760G PCI Express Bus PCIe CLK (100 MHz)

  • Page 9: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 10: Product Specifications

    Dual channel memory architecture Š Support for DDR3 1666 (O.C.)/1333/1066 MHz memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Support for ECC memory modules Š * Use of a CPU that supports ECC is required if you wish to install ECC memory.
  • Page 11 Internal 1 x 24-pin ATX main power connector Š Connectors 1 x 4-pin ATX 12V power connector Š 1 x IDE connector Š 6 x SATA 3Gb/s connectors Š 1 x CPU fan header Š 2 x system fan headers Š...
  • Page 12 Support for Microsoft Windows 7/Vista/XP Š ® System Form Factor ATX Form Factor; 30.5cm x 19cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. Hardware Installation - 12 -...

  • Page 13: Installing The Cpu And Cpu Cooler

    Read the following guidelines before you begin to install the CPU: Make sure that the motherboard supports the CPU. • (Go to GIGABYTE's website for the latest CPU support list.) Always turn off the computer and unplug the power cord from the power outlet before installing the •...
  • Page 14 B. Follow the steps below to correctly install the CPU into the motherboard CPU socket. Before installing the CPU, make sure to turn off the computer and unplug the power cord from the • power outlet to prevent damage to the CPU. Do not force the CPU into the CPU socket.

  • Page 15: Installing The Cpu Cooler

    1-3-2 Installing the CPU Cooler Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses the GIGABYTE cooler as the example.) Step 1: Step 2: Place the CPU cooler on the CPU. Apply an even and thin layer of thermal grease on the surface of the installed CPU.

  • Page 16: Installing The Memory

    Make sure that the motherboard supports the memory. It is recommended that memory of the same • capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Always turn off the computer and unplug the power cord from the power outlet before installing the •...

  • Page 17: Installing A Memory

    1-4-2 Installing a Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. DDR3 and DDR2 DIMMs are not compatible to each other or DDR DIMMs. Be sure to install DDR3 DIMMs on this motherboard.

  • Page 18: Installing An Expansion Card

    Installing an Expansion Card Read the following guidelines before you begin to install an expansion card: Make sure the motherboard supports the expansion card. Carefully read the manual that came • with your expansion card. Always turn off the computer and unplug the power cord from the power outlet before installing an •...

  • Page 19: Back Panel Connectors

    Back Panel Connectors USB 2.0/1.1Port The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB flash drive and etc. PS/2 Keyboard or PS/2 Mouse Port Use this port to connect a PS/2 keyboard or PS/2 mouse. Parallel Port Use the parallel port to connect devices such as a printer, scanner and etc.

  • Page 20: Internal Connectors

    Internal Connectors ATX_12V F_PANEL CPU_FAN F_AUDIO SYS_FAN1/SYS_FAN2 SPDIF_O PWR_FAN F_USB1/F_USB2 CLR_CMOS SATA2 0/1/2/3/4/5 Read the following guidelines before connecting external devices: First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power •...
  • Page 21 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.

  • Page 22: Fan Headers

    3/4/5) CPU_FAN / SYS_FAN1 / SYS_FAN2 / PWR_FAN (Fan Headers) The motherboard has a 4-pin CPU fan header (CPU_FAN), a 4-pin (SYS_FAN1) and a 3-pin (SYS_FAN2) system fan headers, and a 3-pin power fan header (PWR_FAN). Most fan headers possess a foolproof insertion design.
  • Page 23 DEBUG DEBUG PORT PORT DEBUG DEBUG PORT PORT DEBUG DEBUG PORT PORT 7) SATA2 0/1/2/3/4/5 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. The AMD SB710 controller supports RAID 0, RAID 1, RAID 10, and JBOD.

  • Page 24: F_Panel

    9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker and system status indicator on the chassis front panel to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Message/Power/ Power Speaker...

  • Page 25: Front Panel Audio Header

    10) F_AUDIO (Front Panel Audio Header) The front panel audio header supports Intel High Definition audio (HD) and AC'97 audio. You may connect your chassis front panel audio module to this header. Make sure the wire assignments of the module connector match the pin assignments of the motherboard header.
  • Page 26 12) F_USB1/F_USB2 (USB Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Power (5V) Power (5V) USB DX- USB DY-...

  • Page 27: Chapter 2 Bios Setup

    To see more advanced BIOS Setup menu options, you can press <Ctrl> + <F1> in the main menu of the BIOS Setup program. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating •...

  • Page 28: Startup Screen

    A. The LOGO Screen (Default) Function Keys B. The POST Screen Award Modular BIOS v6.00PG Copyright (C) 1984-2011, Award Software, Inc. GA-780T-D3L E4 Motherboard Model BIOS Version Function Keys <DEL>: BIOS Setup <F9>: XpressRecovery2 <F12>: Boot Menu <End>: Qflash 10/27/2011-RS780L-SB710-7A66CG0OC-00 Function Keys: <TAB>: POST SCREEN...

  • Page 29: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. (Sample BIOS Version: E4) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults...
  • Page 30 The Functions of the <F11> and <F12> keys (For the Main Menu Only) „ F11: Save CMOS to BIOS  This function allows you to save the current BIOS settings to a profile. You can create up to 8 profiles (Profile 1-8) and name each profile.

  • Page 31: Mb Intelligent Tweaker(M.i.t.)

    MB Intelligent Tweaker(M.I.T.) CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Item Help CPU Clock Ratio [Auto] 2800Mhz Menu Level  CPU NorthBridge Freq. [Auto] 2000Mhz Core Performance Boost [Enabled] (Note) CPB Ratio (Note) [Auto] Turbo CPB [Disabled] (Note) CPU Host Clock Control [Auto]...
  • Page 32 CPU Frequency(MHz) & Allows you to manually set the CPU host frequency. The adjustable range is from 200 MHz to 500 MHz. This option is configurable only when CPU Host Clock Control is set to Manual. Important It is highly recommended that the CPU frequency be set in accordance with the CPU specifications.
  • Page 33 1T/2T Command Timing & Options are: Auto (default), 1T, 2T. CAS# latency & Options are: Auto (default), 4T~12T. RAS to CAS R/W Delay & Options are: Auto (default), 5T~12T. Row Precharge Time & Options are: Auto (default), 5T~12T. Minimum RAS Active Time &...
  • Page 34 NB Voltage Control & Allows you to set the North Bridge voltage. Normal Supplies the North Bridge voltage as required. (Default) 1.100V ~ 1.800V The adjustable range is from 1.100V to 1.800V. CPU NB VID Control & Allows you to set the CPU North Bridge VID voltage. Auto sets the CPU North Bridge VID voltage as required.

  • Page 35: Standard Cmos Features

    Standard CMOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Tue, Nov 1 2011 Menu Level  Time (hh:mm:ss) 22:31:24  IDE Channel 0 Master [None]  IDE Channel 0 Slave [None]  IDE Channel 1 Master [None] ...
  • Page 36 Halt On & Allows you to determine whether the system will stop for an error during the POST. All Errors Whenever the BIOS detects a non-fatal error the system boot will stop. No Errors The system boot will not stop for any error. All, But Keyboard The system boot will not stop for a keyboard error but stop for all other errors.

  • Page 37: Advanced Bios Features

    Advanced BIOS Features CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Advanced BIOS Features Item Help AMD C1E Support (Note) [Auto] Menu Level  Virtualization [Disabled] AMD K8 Cool&Quiet control [Auto] CPU Unlock [Disabled] (Note) CPU core Control (Note) [Auto] x CPU core 0 Enabled (Note) x CPU core 1...
  • Page 38 (Default: Disabled) Full Screen LOGO Show & Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled displays normal POST message. (Default: Enabled) Backup BIOS Image to HDD &...

  • Page 39: Integrated Peripherals

    Integrated Peripherals CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Integrated Peripherals Item Help OnChip SATA Controller [Enabled] Menu Level  OnChip SATA Type [Native IDE] x OnChip SATA Port4/5 Type x OnChip SATA Port as ESP Press Enter Onboard LAN Function [Enabled] Onboard LAN Boot ROM [Disabled]...
  • Page 40 OnChip SATA Port as ESP  CMOS Setup Utility-Copyright (C) 1984-2011 Award Software OnChip SATA Port as ESP Item Help Port0 as ESP [Disabled] Menu Level  Port1 as ESP [Disabled] Port2 as ESP [Disabled] Port3 as ESP [Disabled] x Port4 as ESP Disabled x Port5 as ESP Disabled...
  • Page 41 This motherboard incorporates cable diagnostic feature designed to detect the status of the attached LAN cable. This feature will detect cabling issue and report the approximate distance to the fault or short. Refer to the following information for diagnosing your LAN cable: When No LAN Cable Is Attached...
  • Page 42 Parallel Port Mode & Selects an operating mode for the onboard parallel (LPT) port. Options are: SPP (Standard Parallel Port) (default), EPP (Enhanced Parallel Port), ECP (Extended Capabilities Port), ECP+EPP. ECP Mode Use DMA & Selects DMA channel for the LPT port in ECP mode. This item is configurable only if Parallel Port Mode is set to ECP or ECP+EPP mode.

  • Page 43: Power Management Setup

    Power Management Setup CMOS Setup Utility-Copyright (C) 1984-2011 Award Software Power Management Setup Item Help ACPI Suspend Type [S3(STR)] Menu Level  Soft-Off by Power button [Instant-off] USB Wake Up from S3 [Enabled] Modem Ring Resume [Disabled] PME Event Wake Up [Enabled] HPET Support [Enabled]...
  • Page 44 HPET Support & (Note) Enables or disables High Precision Event Timer (HPET) for Windows 7/Vista operating system. (Default: Enabled) Power On By Mouse & Allows the system to be turned on by a PS/2 mouse wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disabled Disables this function.

  • Page 45: Pc Health Status

    PC Health Status CMOS Setup Utility-Copyright (C) 1984-2011 Award Software PC Health Status Item Help Hardware Thermal Control [Enabled] Menu Level  Reset Case Open Status [Disabled] Case Opened Vcore 1.280V DDR3 1.5V 1.520V +3.3V 3.360V +12V 11.985V Current System Temperature Current CPU Temperature Current CPU FAN Speed 1588 RPM...
  • Page 46 Current Voltage(V) Vcore/DDR3 1.5V/+3.3V/+12V & Displays the current system voltages. Current System/CPU Temperature & Displays current system/CPU temperature. Current CPU/SYSTEM/POWER FAN Speed (RPM) & Displays current CPU/system/power fan speed. CPU Warning Temperature & Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold, BIOS will emit warning sound.

  • Page 47: Load Fail-Safe Defaults

    Load Fail-Safe Defaults CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save &...

  • Page 48: Set Supervisor/User Password

    2-11 Set Supervisor/User Password CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password  Power Management Setup Save &...

  • Page 49: Save & Exit Setup

    2-12 Save & Exit Setup CMOS Setup Utility-Copyright (C) 1984-2011 Award Software MB Intelligent Tweaker(M.I.T.) Load Fail-Safe Defaults  Standard CMOS Features Load Optimized Defaults  Save to CMOS and EXIT (Y/N)? Y Advanced BIOS Features Set Supervisor Password  Integrated Peripherals Set User Password ...
  • Page 50 BIOS Setup - 50 -...

  • Page 51: Chapter 3 Drivers Installation

    After "Xpress Install" installs all of the drivers, a dialog box will appear asking whether to install • new GIGABYTE utilities. Click Yes to automatically install the utilities. Or click No if you want to manually select the utilities to install on the Application Software page later.

  • Page 52: Application Software

    Application Software This page displays all the utilities and applications that GIGABYTE develops and some free software. You can click the Install button on the right of an item to install it. Technical Manuals This page provides GIGABYTE's application guides, content descriptions for this driver disk, and the motherboard manuals.

  • Page 53: Contact

    Contact For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch offices, click the URL on this page to link to the GIGABYTE website. System This page provides the basic system information. - 53 - Drivers Installation...

  • Page 54: Download Center

    The latest version of the BIOS, drivers, or applications will be displayed. New Utilities This page provides a quick link to GIGABYTE's lately developed utilities for users to install. You can click the Install button on the right of an item to install it.

  • Page 55: Chapter 4 Unique Features

    Chapter 4 Unique Features Xpress Recovery2 Xpress Recovery2 is a utility that allows you to quickly compress and back up your system data and perform restoration of it. Supporting NTFS, FAT32, and FAT16 file systems, Xpress Recovery2 can back up data on PATA and SATA hard drives and restore it.
  • Page 56 Step 3: Step 4: When partitioning your hard drive, make sure to leave After the operating system is installed, click Start, unallocated space (10 GB or more is recommended; right-click the Computer and select Manage. Go to actual size requirements vary, depending on the Disk Management to check disk allocation.
  • Page 57 D. Using the Restore Function in Xpress Recovery2 Select RESTORE to restore the backup to your hard drive in case the system breaks down. The RESTORE option will not be present if no backup is created before. E. Removing the Backup Step 1: Step 2: If you wish to remove the backup file, select...

  • Page 58: Bios Update Utilities

    4-2-1 Updating the BIOS with the Q-Flash Utility A. Before You Begin From GIGABYTE's website, download the latest compressed BIOS update file that matches your motherboard model. Extract the file and save the new BIOS file (e.g. 780TD3L3.f1) to your USB flash drive or USB hard drive.
  • Page 59 B. Updating the BIOS When updating the BIOS, choose the location where the BIOS file is saved. The following procedure assumes that you save the BIOS file to a floppy disk. Step 1: Insert the USB flash drive containing the BIOS file into the computer. In the main menu of Q-Flash, use the up or down arrow key to select Update BIOS from Drive and press <Enter>.
  • Page 60 Step 4: Press <Esc> and then <Enter> to exit Q-Flash and reboot the system. As the system boots, you should see the new BIOS version is present on the POST screen. Step 5: During the POST, press <Delete> to enter BIOS Setup. Select Load Optimized Defaults and press <Enter> to load BIOS defaults.

  • Page 61: Updating The Bios With The @Bios Utility

    B. Using @BIOS Update the BIOS Using the Internet Update Function: Click Update BIOS from GIGABYTE Server, select the @BIOS server site closest to your location and then download the BIOS file that matches your motherboard model. Follow the on-screen instructions to complete.

  • Page 62: Easytune 6

    EasyTune 6 GIGABYTE's EasyTune 6 is a simple and easy-to-use interface that allows users to fine-tune their system settings or do overclock/overvoltage in Windows environment. The user-friendly EasyTune 6 interface also includes tabbed pages for CPU and memory information, letting users read their system-related information without the need to install additional software.

  • Page 63: Easy Energy Saver

    The Easy Energy Saver Interface A. Meter Mode In Meter Mode, GIGABYTE Easy Energy Saver shows how much power they have saved in a set period of time. Meter Mode - Button Information Table Button Description...
  • Page 64 B. Total Mode In Total Mode, users are able to see how much total power savings they have accumulated in a set period of time since activating Easy Energy Saver for the first time (Note 3) Total Mode - Button Information Table Button Description Easy Energy Saver On/Off Switch (Default: Off) Dynamic CPU Frequency Function On/Off Switch (Default: Off)

  • Page 65: Q-Share

    Internet resources. Directions for using Q-Share After installing Q-Share from the motherboard driver disk, go to Start>All Programs>GIGABYTE>Q-Share.exe to launch the Q-Share tool. Find the Q-Share icon in the notification area and right-click on this icon to configure the data sharing settings.

  • Page 66: Smart Recovery

    SMART Recovery With SMART Recovery, users can quickly create backups of changed data files or copy files from a specific (Note 1) backup on PATA and SATA hard drives (partitioned on NTFS file system) in Windows Vista/7. Instructions: In the main menu, click the Config button to open the Smart Recovery Preference dialog box.

  • Page 67: Auto Green

    Auto Green Auto Green is an easy-to-use tool that provides users with simple options to enable system power savings via a Bluetooth cell phone. When the phone is out of the range of the computer's Bluetooth receiver, the system will enter the specified power saving mode. The Configuration dialog box: First, you have to set your Bluetooth cell phone as a portable key.
  • Page 68 Unique Features - 68 -...

  • Page 69: Chapter 5 Appendix

    Chapter 5 Appendix Configuring SATA Hard Drive(s) RAID Levels: RAID 0 RAID 1 RAID 10 JBOD Minimum Number of Hard ≥2 ≥4 >2 Drives Array Capacity Number of hard Size of the smallest (Number of hard Sum of all drive drives * Size of the drive drives/2) * Size of the...
  • Page 70 B. Configuring SATA controller mode in BIOS Setup Make sure to configure the SATA controller mode correctly in system BIOS Setup. Step 1: Turn on your computer and press <Delete> to enter BIOS Setup during the POST (Power-On Self-Test). Ensure OnChip SATA Controller is enabled under Integrated Peripherals.
  • Page 71 C. Configuring RAID set in RAID BIOS Enter the RAID BIOS setup utility to configure a RAID array. Skip this step and proceed with the installation of Windows operating system for a non-RAID configuration. Step 1: After the POST memory test begins and before the operating system boot begins, look for a message which says "Press <Ctrl-F>...
  • Page 72 Option ROM Utility (c) 2009 Advanced Micro Devices, Inc. [ Define LD Menu ] LD No RAID Mode Total Drv RAID 0 Stripe Block: 64 KB Fast Init: Gigabyte Boundary: Cache Mode: WriteThru [ Drives Assignments ] Channel:ID Drive Model Capabilities Capacity (GB) Assignment...
  • Page 73 In the following procedure, we'll create RAID 0 as an example. RAID Mode section, press the <SPACE> key to select RAID 0. Under the Stripe Block size. 64 KB is the default. Set the Drives Assignments section, press the up or down arrow key to highlight a drive. Under the Press the <SPACE>...
  • Page 74 Delete an Array The Delete Array menu option allows for deletion of disk array assignments. Deleting an existing disk array could result in loss of data. Record all array information including the array type, the disk members, and stripe block size in case you wish to undo a deletion. To delete an array, press <3>...

  • Page 75: Installing The Sata Raid/Ahci Driver And Operating System

    5-1-2 Installing the SATA RAID/AHCI Driver and Operating System With the correct BIOS settings, you are ready to install Windows 7/Vista/XP. A. Installing Windows 7/Vista (The following instructions use Windows 7 as the example operating system.) Step 1: Boot from the Windows 7/Vista setup disk and perform standard OS installation steps. When you arrive at the "Where do you want to install Windows?"...
  • Page 76 B. Installing Windows XP Before installing Windows XP, connect a USB floppy disk drive to your computer first because you need to install the SATA RAID/AHCI driver from a floppy disk that contains the driver during the OS installation. Without the driver, the hard drive(s) may not be recognized during the Windows setup process.
  • Page 77 Refer to the following for installing the driver during the Windows setup process. Step 1: Restart your system to boot from the Windows XP setup disk and press <F6> as soon as you see the message "Press F6 if you need to install a 3rd party SCSI or RAID driver." A screen will then appear asking you to specify an additional SCSI adapter.
  • Page 78 Rebuilding an Array: Rebuilding is the process of restoring data to a hard drive from other drives in the array. Rebuilding applies only to fault-tolerant arrays such as RAID 1, or RAID 10. To replace the old drive, make sure to use a new drive of equal or greater capacity.

  • Page 79: Configuring Audio Input And Output

    Configuring Audio Input and Output 5-2-1 Configuring 2/4/5.1/7.1-Channel Audio The motherboard provides three audio jacks on the back panel which support 2/4/5.1/7.1 -channel audio. The picture to the right shows the (Note) default audio jack assignments. Line In The integrated HD (High Definition) audio provides jack retasking Front Speaker Out capability that allows the user to change the function for each jack through the audio driver.
  • Page 80 The pictures to the right show the 7.1-channel speaker 7.1-Channel Speakers: configurations. Front Speaker Rear Speaker Out Center/Subwoofer Speaker Out Side Speaker Out Step 2: Connect an audio device to an audio jack. The The current connected device is dialog box appears. Select the device according to the type of device you connect.
  • Page 81 C. Activating an AC'97 Front Panel Audio Module If your chassis provides an AC'97 front panel audio module, to activate the AC'97 functionality, click the tool icon on the Speaker Configuration tab. On the Connector Settings dialog box, select the Disable front panel jack detection check box.

  • Page 82: Configuring S/Pdif Out

    5-2-2 Configuring S/PDIF Out The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio quality. 1. Connecting a S/PDIF Out Cable: Connect a S/PDIF coaxial cable to the corresponding S/PDIF out connector as shown below and an external decoder for transmitting the S/PDIF digital audio signals.

  • Page 83: Configuring Microphone Recording

    5-2-3 Configuring Microphone Recording Step 1: After installing the audio driver, the HD Audio Manager icon will appear in the notification area. Double-click the icon to access the HD Audio Manager. Step 2: Connect your microphone to the Mic in jack (pink) on the back panel or the Mic in jack (pink) on the front panel.
  • Page 84 Step 5: After completing the settings above, click Start, point to All Programs, point to Accessories, and then click Sound Recorder to begin the sound recording. * Enabling Stereo Mix If the HD Audio Manager does not display the recording device you wish to use, refer to the steps below. The following steps explain how to enable Stereo Mix (which may be needed when you want to record sound from your computer).

  • Page 85: Using The Sound Recorder

    Step 4: Now you can access the HD Audio Manager to configure Stereo Mix and use Sound Recorder to record the sound. 5-2-4 Using the Sound Recorder A. Recording Sound Make sure you have connected the sound input device (e.g. microphone) to the computer. To record the audio, click the Start Recording button To stop recording audio, click the...

  • Page 86: Troubleshooting

    Troubleshooting 5-3-1 Frequently Asked Questions To read more FAQs for your motherboard, please go to the Support & Downloads\FAQ page on GIGABYTE's website. Q: In the BIOS Setup program, why are some BIOS options missing? A: Some advanced options are hidden in the BIOS Setup program. Press <Delete> to enter BIOS Setup during the POST. In the Main Menu, press <Ctrl>+<F1>...

  • Page 87: Troubleshooting Procedure

    5-3-2 Troubleshooting Procedure If you encounter any troubles during system startup, follow the troubleshooting procedure below to solve the problem. START Turn off the power. Remove all peripherals, connecting cables, and power cord etc. Make sure the motherboard does not short-circuit with the chassis or Isolate the short circuit.
  • Page 88 The power supply, CPU or When the computer is turned on, is the CPU cooler running? CPU socket might fail. The problem is verified and solved. The graphics card, expansion slot, or monitor Check if there is display on your monitor. might fail.

  • Page 89: Regulatory Statements

    "end of life" product. Restriction of Hazardous Substances (RoHS) Directive Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
  • Page 90 Appendix - 90 -...
  • Page 91 - 91 - Appendix...
  • Page 92 Appendix - 92 -...
  • Page 93 - 93 - Appendix...
  • Page 94 Appendix - 94 -...
  • Page 95 Web address: http://latam.giga-byte.com Shenyang Giga-Byte SINGAPORE PTE. LTD. - Singapore TEL: +86-24-83992901 • WEB address : http://www.gigabyte.sg FAX: +86-24-83992909 Thailand GIGABYTE TECHNOLOGY (INDIA) LIMITED - India • • WEB address : http://th.giga-byte.com WEB address : http://www.gigabyte.in Vietnam Saudi Arabia •...
  • Page 96 WEB address : http://www.gigabyte.com.gr WEB address : http://www.gigabyte.kz Czech Republic • You may go to the GIGABYTE website, select your language in WEB address : http://www.gigabyte.cz the language list on the top right corner of the website. GIGABYTE Global Service System •...
