Once you have installed the Modem you can monitor the status of the ADSL connection by
clicking on the connection icon in your System Tray or click on the DSL-200 icon in the
Control Panel folder.

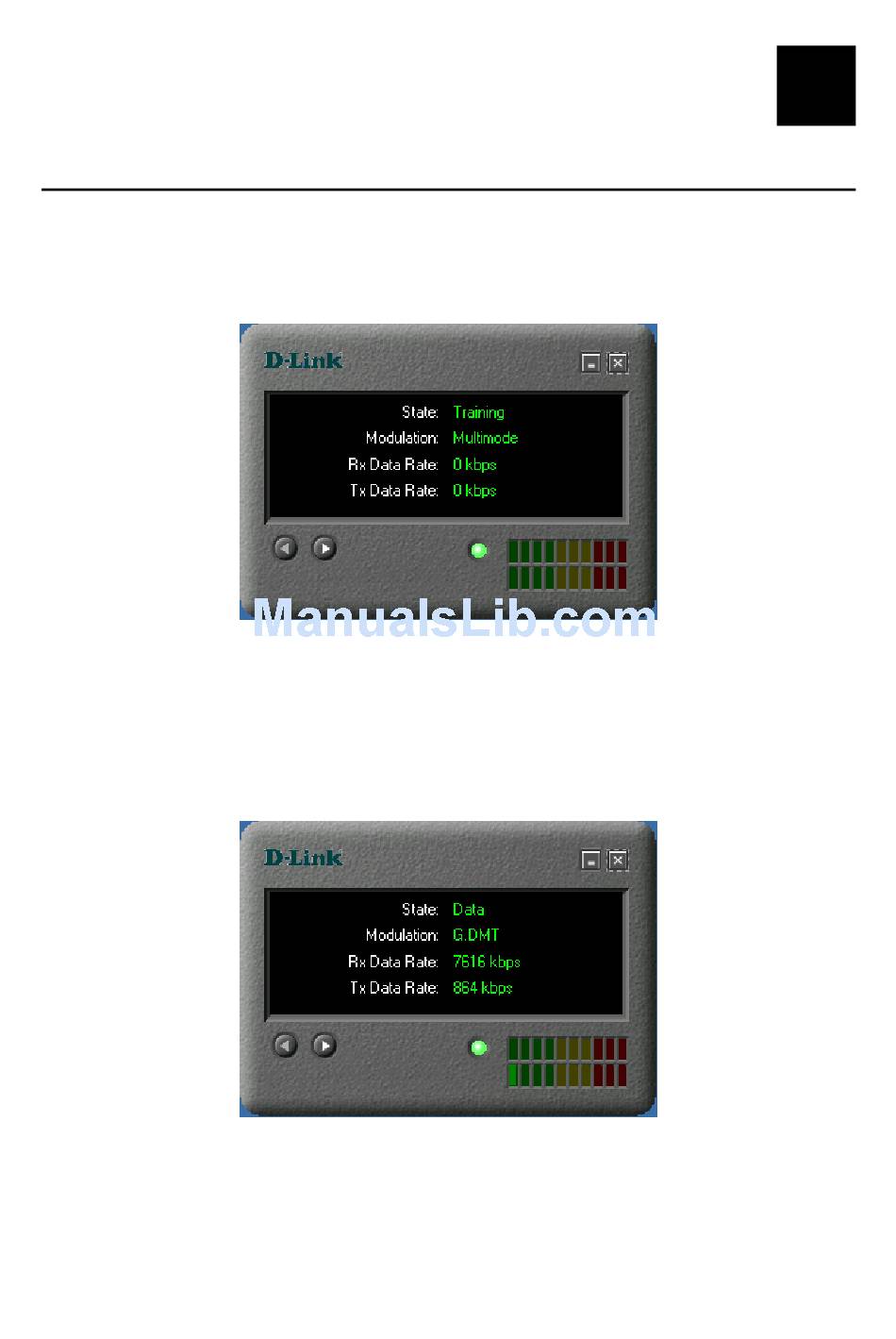

Clicking on either icon will bring up the following window:
The bright green light under the screen indicates a valid link. The screen indicates the
current state of you modem, the modulation and the Rx and the Tx data rates. On startup,
the modem will automatically " train" , or load the settings in your modem. Shortly after the
training process, the screen below will appear, now showing your state as (receiving) Data.
