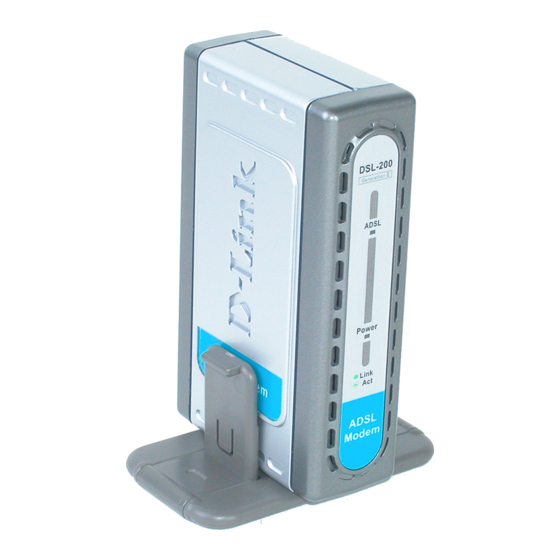

DSL-200 ADSL USB Modem
User's Guide
First Edition (Jan. 2006)
RECYCLABLE

Advertisement

Table of Contents
loading

Related Manuals for D-Link DSL-200

Summary of Contents for D-Link DSL-200

  • Page 1 DSL-200 ADSL USB Modem User’s Guide First Edition (Jan. 2006) RECYCLABLE...
  • Page 2 DSL-200 ADSL USB Modem User’s Guide Wichtige Sicherheitshinweise Bitte lesen Sie sich diese Hinweise sorgfä ltig durch. Heben Sie diese Anleitung für den spä tern Gebrauch auf. Vor jedem Reinigen ist das Gerä t vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger.

  • Page 3: Limited Warranty

    Return Material Authorization (RMA) number. If a Registration Card for the product in question has not been returned to D-Link, then a proof of purchase (such as a copy of the dated purchase invoice) must be provided. If Purchaser's circumstances require special handling of warranty correction, then at the time of requesting RMA number, Purchaser may also propose special procedure as may be suitable to the case.
  • Page 4 DSL-200 ADSL USB Modem User’s Guide D-Link pursuant to this warranty, but shall not apply to any update or replacement which may be provided for download via the Internet, or to any update which may otherwise be provided free of charge.
  • Page 5 D-Link Offices for Registration and Warranty Service The product's Registration Card, provided at the back of this manual, must be sent to a D-Link office. To obtain an RMA number for warranty service as to a hardware product, or to obtain warranty service as to a software product, contact the D-Link office nearest you.

  • Page 6: Table Of Contents

    DSL-200 ADSL USB Modem User’s Guide Table of Contents ABOUT THIS USER’S GUIDE ............................1 BEFORE YOU START ..............................2 INTRODUCTION ................................6 ADSL? ................................6 HAT IS .......................... 6 ODEM ESCRIPTION AND PERATION ............................... 7 RODUCT EATURES Rear Panel................................. 7 Front Panel ................................

  • Page 7: About This User's Guide

    DSL-200 ADSL USB Modem User’s Guide About This User’s Guide This user’s guide tells you how to install your DSL-200 ADSL USB Modem and use it to connect to the Internet. ADSL services are provided by, and sold by a variety of businesses. Your ADSL service provider may be your telephone company, an Internet service provider (ISP), a business that specializes in providing network services or a combination of any of these.

  • Page 8: Before You Start

    Modem. Operating Systems The D-Link DSL-200 can be used with PCs running Microsoft® Windows 98 Second Edition, Windows 2000, Windows Millennium Edition, Windows XP or Windows XP x64 Edition.

  • Page 9: Line Splitter

    DSL-200 ADSL USB Modem User’s Guide Microfilters Unless you are instructed to use a “line splitter” (see below), it will be necessary to install a microfilter (low pass filter) device for each telephone or telephone device (answering machines, Faxes etc.) that share the line with the ADSL service.

  • Page 10: Adsl Service

    DSL-200 ADSL USB Modem User’s Guide ADSL Service In order to use the Modem you must first have ADSL service established with a DSL service provider. There are four standards used for ADSL connections known as ANSI T1.413 issue 2, G.Lite, G.dmt and G.hs.
  • Page 11 DSL-200 ADSL USB Modem User’s Guide Use the tables provided here to record the information you need to install the Modem. SETTINGS TABLE (all users) VPI: VCI: Software Driver: The driver used depends on the connection protocol used for your network services.

  • Page 12: Introduction

    Modem Description and Operation The DSL-200 ADSL USB Modem is easy to install and use. Please note that you must first install the software driver for the device by following the instructions in Chapter 3. Once the driver has been installed you can connect the Modem to your computer.

  • Page 13: Product Features

    DSL-200 ADSL USB Modem User’s Guide Product Features The D-Link DSL-200 Modem provides the following features: G.hs compliant (Auto-handshake) G.dmt full rate compliant G.lite compliant RFC 1483 (Bridged Ethernet) compliant RFC 2364 PPP over ATM compliant RFC 2516 PPP over Ethernet compliant Compatible with all T1.413 issue 2 (full rate DMT over analog POTS), and CO DSLAM...

  • Page 14: Led Indicators

    DSL-200 ADSL USB Modem User’s Guide LED Indicators There are two LED indicators on the Modem: Power - Indicates the Modem is powered on when lit. ADSL Link – Indicates a valid ADSL link has been established when lit.

  • Page 15: Modem Installation

    DSL-200 ADSL USB Modem User’s Guide MODEM INSTALLATION Before you connect the USB cable, you must install the driver. See the next chapter for driver installation instructions. The only cable you should connect initially is the ADSL cable. Place the Modem in a location so that you are able to view the LEDs. It should be placed in an area that is clean, dry and ventilated.

  • Page 16: Software Installation

    DSL-200 ADSL USB Modem User’s Guide SOFTWARE INSTALLATION The DSL-200 can be used with the following operating systems: Microsoft Windows 98 Second Edition Microsoft Windows 2000 Microsoft Windows Millennium Edition Microsoft Windows XP Microsoft Windows XP x64 The procedures for each system are slightly different so be sure to follow the instructions provided for your PC’s operating system.

  • Page 17: Windows 98/Me

    1.1 Windows 98SE/ME 1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should detect the installation program and run the program automatically. If installation does not begin automatically after a few seconds, find the autorun.exe icon located on the CD and double-click it. To view the contents of the CD, open My Computer from the desktop, and right-click on your CD-ROM.
  • Page 18 DSL-200 ADSL USB Modem User’s Guide 2) Choose the appropriate driver from the driver list and click it. A notification message will appear indicating that the setup process has begun. Choose this driver and click it 3) The Welcome window will appear. Make sure you have quit all other programs and click Next.
  • Page 19 DSL-200 ADSL USB Modem User’s Guide 4) In the Select Service Provider window, select Other Service Provider and click Next. Click Next. 5) In the Select Driver Type window, choose the driver that best suits your ADSL connection, and then click Next.
  • Page 20 DSL-200 ADSL USB Modem User’s Guide Enter your and VCI. Select your Encapsulation. Select your Modulation. Click Next 9) The Ready to Install window appears. Click Next to copy the needed driver files. Click Next.
  • Page 21 DSL-200 ADSL USB Modem User’s Guide 10) After clicking Next, the Installing screen below will appear notifying you that your computer is downloading files and preparing for installation. Wait for installation. 11) After the files are downloaded, another Installing screen will prompt you to plug your modem into your computer.
  • Page 22 Choose Yes, reboot the computer now because it is necessary to reboot your computer to continue the installation, and then click Close. Click Close reboot the computer. 15) After restarting your computer, the Finished screen below should appear notifying that you have successfully installed your DSL-200 Modem. Click Finish to complete the installation process.
  • Page 23 Finish complete the installation. Upon restarting your computer, a new icon (two arrows) will appear in the System Tray. If you are using PPP (WAN driver only) the D-Link Dial-up PPP Connection icon will appear on your desktop after restarting.

  • Page 24: 1.2 Windows 2000/Xp

    DSL-200 ADSL USB Modem User’s Guide 1.2 Windows 2000/XP 1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should detect the installation program and run the program automatically. If installation does not begin automatically after a few seconds, find the autorun.exe icon located on the CD and double-click it.
  • Page 25 DSL-200 ADSL USB Modem User’s Guide Next. Click 4) In the Select Service Provider window, select Other Service Provider and click Next. Click Next. 5) In the Select Driver Type window, choose the driver that best suits your ADSL connection, and then click Next.
  • Page 26 DSL-200 ADSL USB Modem User’s Guide and Modulation method for configuring the Modem. Type in the VPI and VCI values in their respective fields. 7) In the same window, select the appropriate Encapsulation method from the drop-down menu. You will select the encapsulation setting that is appropriate for the driver you are installing.
  • Page 27 12) The Found New Hardware screen will appear notifying you that your computer has detected the modem and is currently installing it. 13) The Finished screen below will appear notifying that you have successfully installed your DSL-200 Modem. Click Finish to complete the installation process.
  • Page 28 After finishing the installation procedure, a new icon (two arrows) will appear in the System Tray. If you are using PPP (WAN driver only) the D-Link Dial-up PPP Connection icon will appear on your desktop after installing.

  • Page 29: 1.3 Windows Xp 64Bit

    DSL-200 ADSL USB Modem User’s Guide 1.3 Windows XP 64bit 1) Insert the DSL-200 Installation CD into the CD-ROM drive. The system should detect the installation program and run the program automatically. If installation does not begin automatically after a few seconds, find the autorun.exe icon located on the CD and double-click it.
  • Page 30 DSL-200 ADSL USB Modem User’s Guide 3) The Welcome window will appear. Make sure you have quit all other programs and click Next. Click Next. 4) In the Select Service Provider window, select Other Service Provider and click Next. Click Next.
  • Page 31 DSL-200 ADSL USB Modem User’s Guide 6) In the Communication Settings window you must provide the PVC settings, Encapsulation method and Modulation method for configuring the Modem. Type in the VPI and VCI values in their respective fields. 7) In the same window, select the appropriate Encapsulation method from the drop-down menu. You will select the encapsulation setting that is appropriate for the driver you are installing.
  • Page 32 DSL-200 ADSL USB Modem User’s Guide 9) The Ready To Install window appears. Click Next to copy the needed driver files Click Next 10) After clicking Next, the Installing screen below will appear notifying you that your computer is downloading files and preparing for installation.
  • Page 33 12) The Found New Hardware screen will appear notifying you that your computer has detected the modem and is currently installing it. 13) The Finished screen below will appear notifying that you have successfully installed your DSL-200 Modem. Click Finish to complete the installation process.

  • Page 34: Making A Connection

    DSL-200 ADSL USB Modem User’s Guide Making a Connection Fixed IP Your need to specify the fixed IP address and other required settings in this window to perform your connection. Enter your IP address, Subnet mask and Default gateway. Enter your Preferred and/or Alternate DNS server.
  • Page 35 DSL-200 ADSL USB Modem User’s Guide Dynamic IP Double click the icon named Connect D-Link Dial-Up PPP Connection on desktop. Enter user name and password provided by the service provider to perform the connection. Enter your User name and Password.

  • Page 36: Verify The Adsl Connection

    DSL-200 ADSL USB Modem User’s Guide Verify the ADSL Connection Before you continue to the final step, make sure that the ADSL connection has been established. This can be done easily using the Modem’s ADSL connection monitoring feature described below.

  • Page 37: Connect To The Internet

    The Procedures for the different operating systems are the same though the appearance of the windows differs. The screen captures used for this manual are from a Windows XP installation. 1. From the Windows desktop double-click on the D-Link Dial-Up PPP Connection icon. Double Click...

  • Page 38: Connect To Internet - Lan Driver Users

    DSL-200 ADSL USB Modem User’s Guide 2. In the Connect To window type in the correct User name and Password given to you by your ADSL or network service provider. Checks the Save password box if do not want to retype the password if you need to reconnect.

  • Page 39: Windows 98 / Windows Me (Lan Driver)

    1. From the Start menu, select Settings, Control Panel, and then double-click on the Network icon. 2. The Network window appears. Select the Configuration tab, scroll down the installed network components list and click on TCP/IP  D -Link DSL-200 USB ADSL Modem. 3. Click the Properties button.

  • Page 40: Monitoring The Modem

    Once you have installed the Modem you can monitor the status of the ADSL connection by clicking on the connection icon in your System Tray or click on the DSL-200 icon in the Control Panel folder. Clicking on either icon will bring up the following window: The bright green light under the screen indicates a valid link.
  • Page 41 DSL-200 ADSL USB Modem User’s Guide Under the screen to the left are two scroll buttons . Clicking on the right scroll button will bring up the screen pictured above, showing the Current Package, Driver, Control Panel and Firmware versions. Clicking on the left scroll button will return you to the initial screen.

  • Page 42: Changing Modem Configuration

    Once the Modem and software have been installed the communication settings may be easily updated by performing the following steps: 1. From your PC desktop click Start – ALL Programs – -Link DSL-200 ADSL Modem – Configure. A notification message will appear indicating that the setup process has begun.
  • Page 43 DSL-200 ADSL USB Modem User’s Guide 2. The “Communication Settings” window will be displayed. Make the necessary changes to the VPI, VCI, Encapsulation type and/or Modulation type and click Next. 3. The new settings will be applied after restarting the computer. If you want to restart now click Close.

  • Page 44: Configuring The Idle Time

    Double Click 2. In the D-Link Dial-Up PPP Connection window, choose Options tab. Select the idle time out period from Idle time before hanging up drop-down list and then click OK.

  • Page 45: Uninstalling The Modem

    DSL-200 ADSL USB Modem User’s Guide UNINSTALLING THE MODEM If you need to uninstall the Modem, use the Uninstall program available in the DSL-200 Modem folder. Failure to use the Uninstall program can leave files in the system that can cause problems with future installations, including problems with reinstallation of the Modem.
  • Page 46 DSL-200 ADSL USB Modem User’s Guide 2. You are asked to confirm your intention to remove the device (software). Click Yes to uninstall the Modem. 3. A new window appears and asks that you not unplug the USB cable until after the device driver has been completely removed.

  • Page 47: Technical Specifications

    DSL-200 ADSL USB Modem User’s Guide TECHNICAL SPECIFICATIONS General ANSI T1.413 issue 2 ITU G.992.1 (G.dmt) Standards: ITU G.992.2 (G.lite) ITU G.994.1 (G.hs) USB 1.1 specifications RFC 2364 PPP over ATM Adaptation Layer 5 Protocol: RFC 2516 PPP over Ethernet RFC 1483 Multi-protocol Encapsulation over ATM Adaptation Layer 5 G.dmt full rate downstream: up to 8Mbps...
  • Page 48 URL: www.dlink.com.au TEL: 886-2-6600-0123 FAX: 886-2-6600-1188 Norway India URL: www.dlinktw.com.tw Karihaugveien 89 D-Link House, Kurla Bandra Complex Road N-1086 Oslo Off CST Road, Santacruz (East) Norway Mumbai - 400098 TEL: +47 99 300 100 India FAX: +47 22 30 95 80 TEL: 91-022-26526696/56902210 URL: www.dlink.no...

  • Page 49: Registration Card

    3. What network protocol(s) does your organization use? □XNS/IPX □TCP/IP □DECnet □Others____________________________________________________________ 4. What network operating system(s) does your organization use? □D-Link LANsmart □Novell NetWare □NetWare Lite □SCO Unix/Xenix □PC NFS □3Com 3+Open □Banyan Vines □DECnet Pathwork □ Windows NT □Windows NTAS □Windows '95 □Others_______________________________________________________________________________________ 5.
