13. Unscrew the two screws holding the drive in the storage drawer, and slide the
drive out of the drawer. See Figure 5–47.

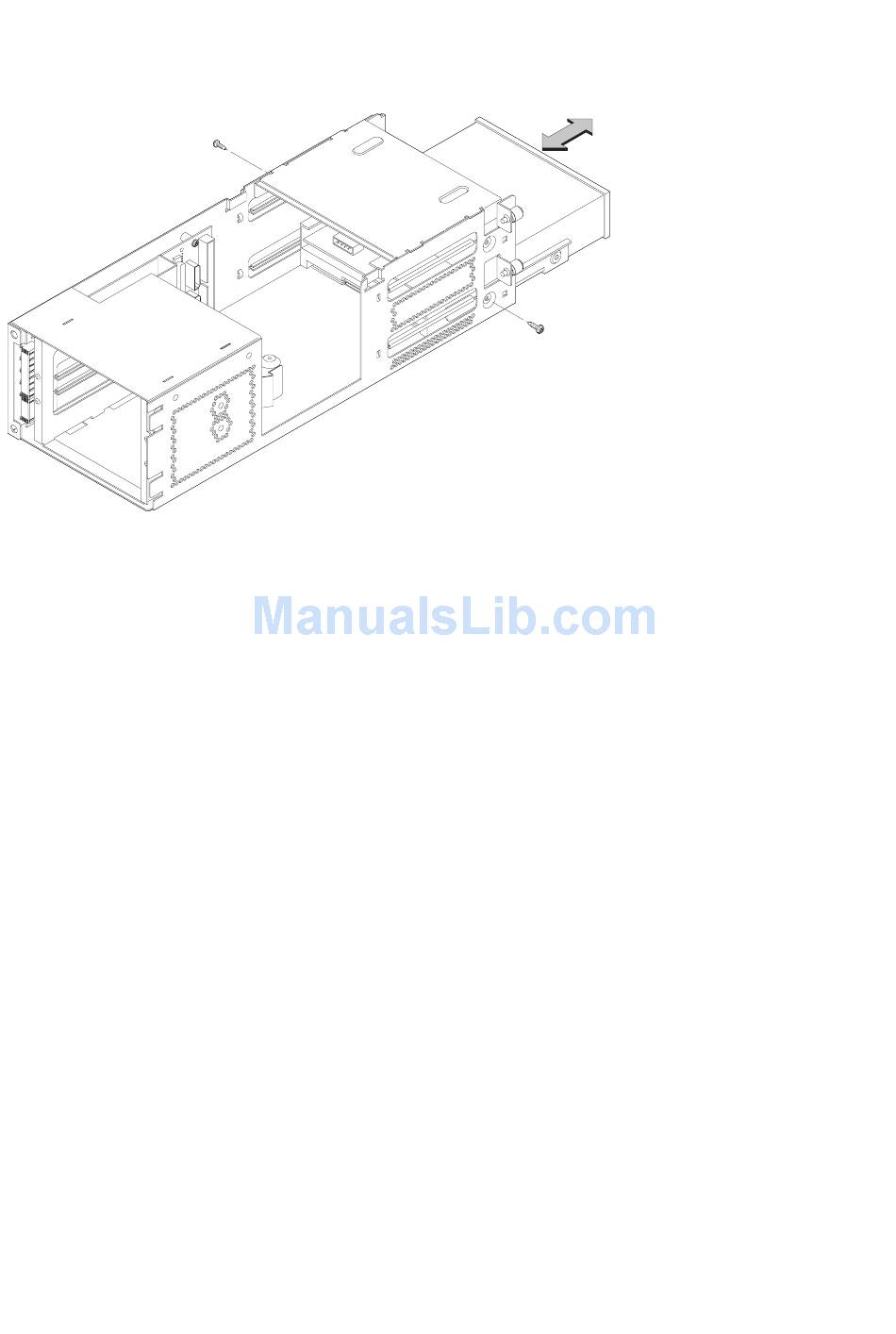

Figure 5–47. Removing Drive Screws
14. Check the SCSI address/jumper settings on the replacement drive, as shown in
Chapter 3 of this handbook.
Reverse these steps to replace a drive.
Do not over-tighten the screws holding the drive in the storage drawer.
5–52
Field Replaceable Units
