Front USB Connector

1. Prepare the computer for disassembly
2. Remove the computer cover
3. Remove the fan shroud
4. Raise the drive cage to its upright position.
5. Disconnect the fan cable the power switch cable, and the front USB device cable from the system
board.

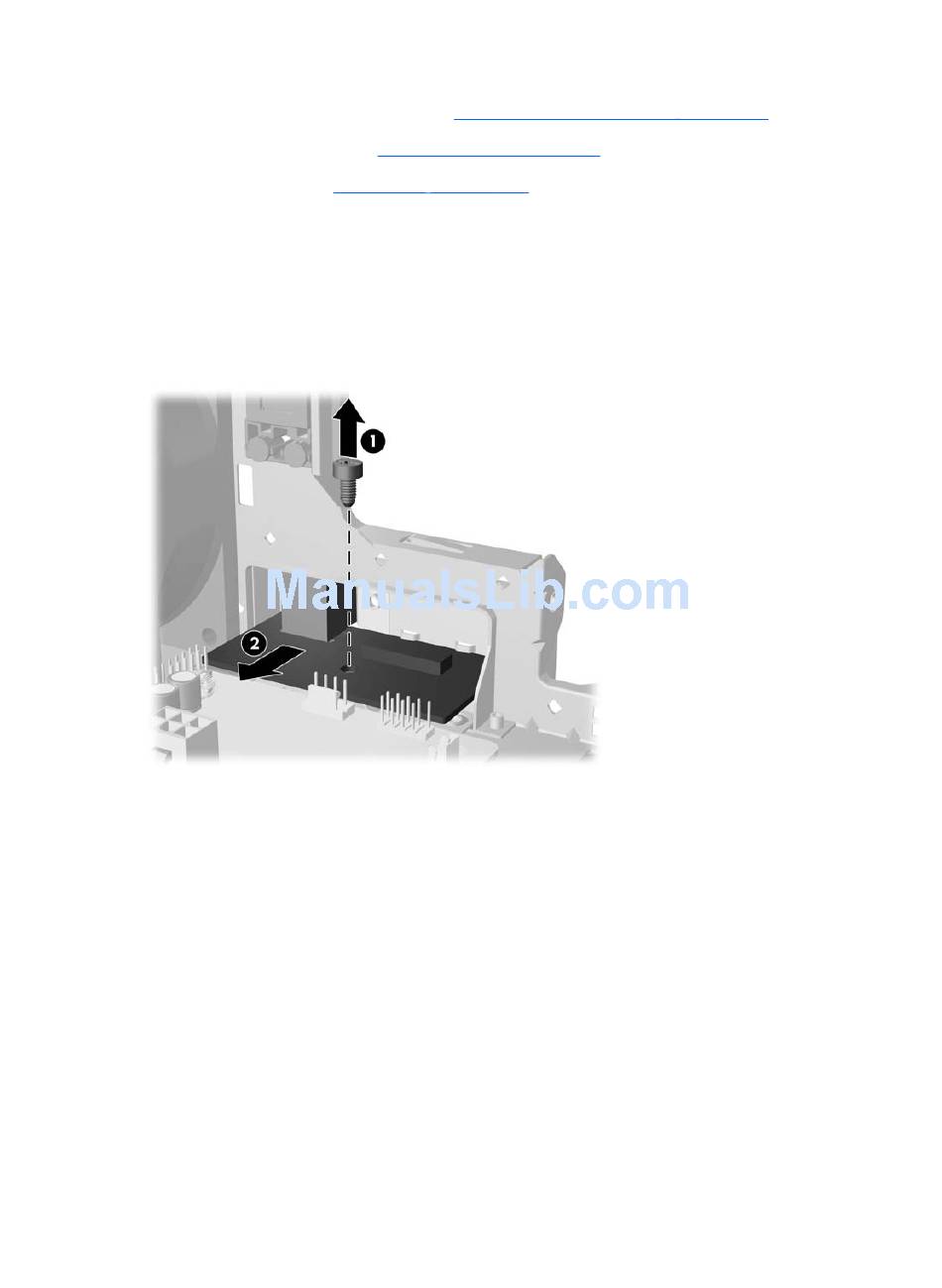

6. Remove the screw that secures the front USB printed circuit board to the floor of the chassis (1)
and push the USB port out of the chassis (2).
Figure 7-54
To reinstall the front USB connector, reverse the removal procedure.
