Primary 3.5-Inch Internal Hard Drive
1.
Prepare the computer for disassembly
2.
Remove the computer cover
3.
Raise the drive cage to its upright position.

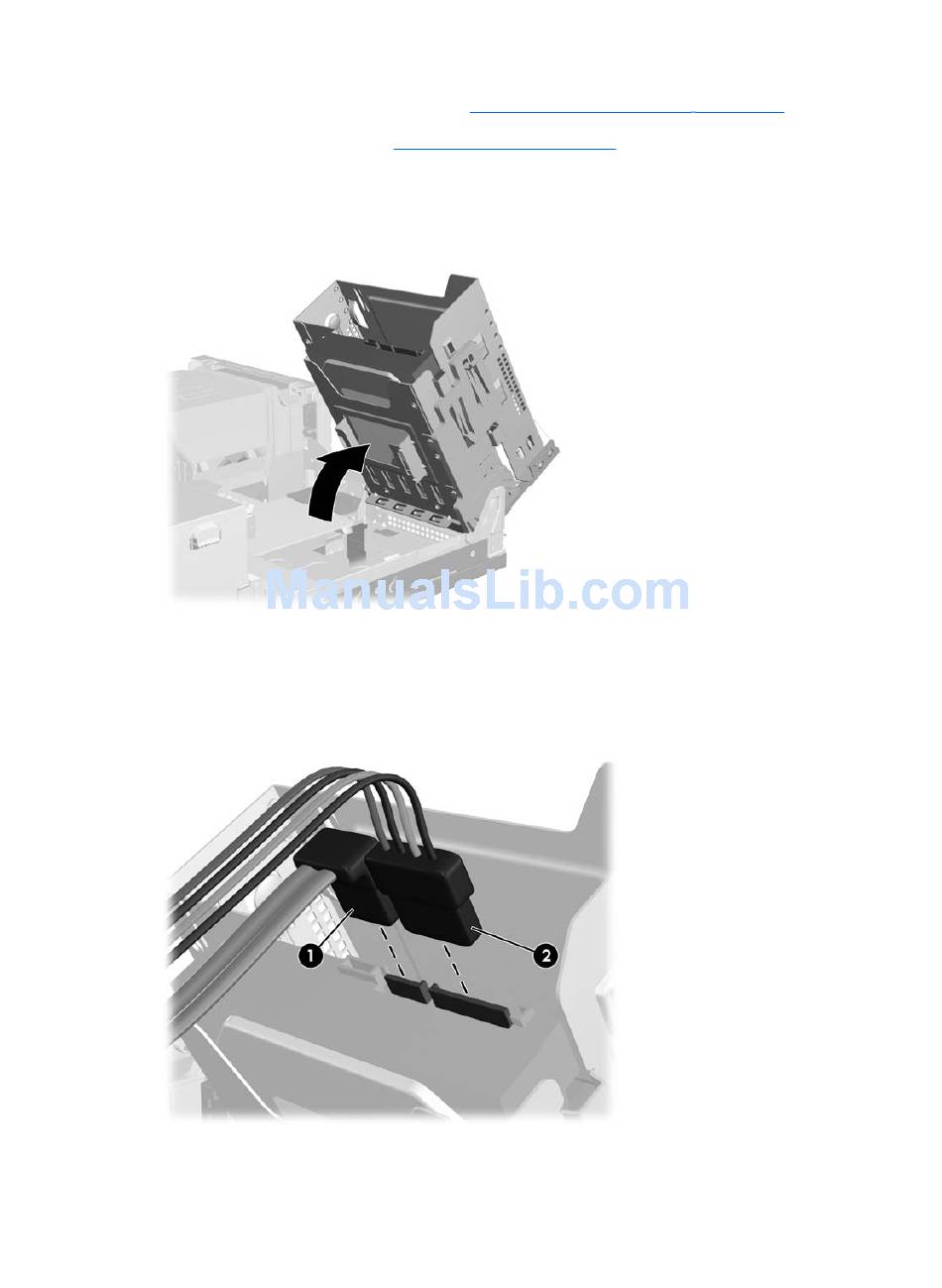

Figure 7-42
4.
If an optical drive is installed, disconnect the power cable and data cable from the back of the optical
drive.
5.
Disconnect the data cable (1) and power cable (2) from the back of the primary hard drive.
Figure 7-43
ENWW
(Computer Cover on page
Rotating the Drive Cage Up
Disconnecting the Primary Hard Drive Data and Power Cables
(Preparation for Disassembly on page
64).
61).
Drives
97
