PCI Riser Card Cage Assembly

1. Prepare the computer for disassembly
2. Remove the computer cover
3. Disconnect the cables from the expansion cards mounted in the card cage as needed.
4. Remove all PCI and PCI Express expansion cards from the PCI expansion slots
Riser Card Cage on page
5. Grasp the riser card cage and firmly pull it straight up and out of the chassis.

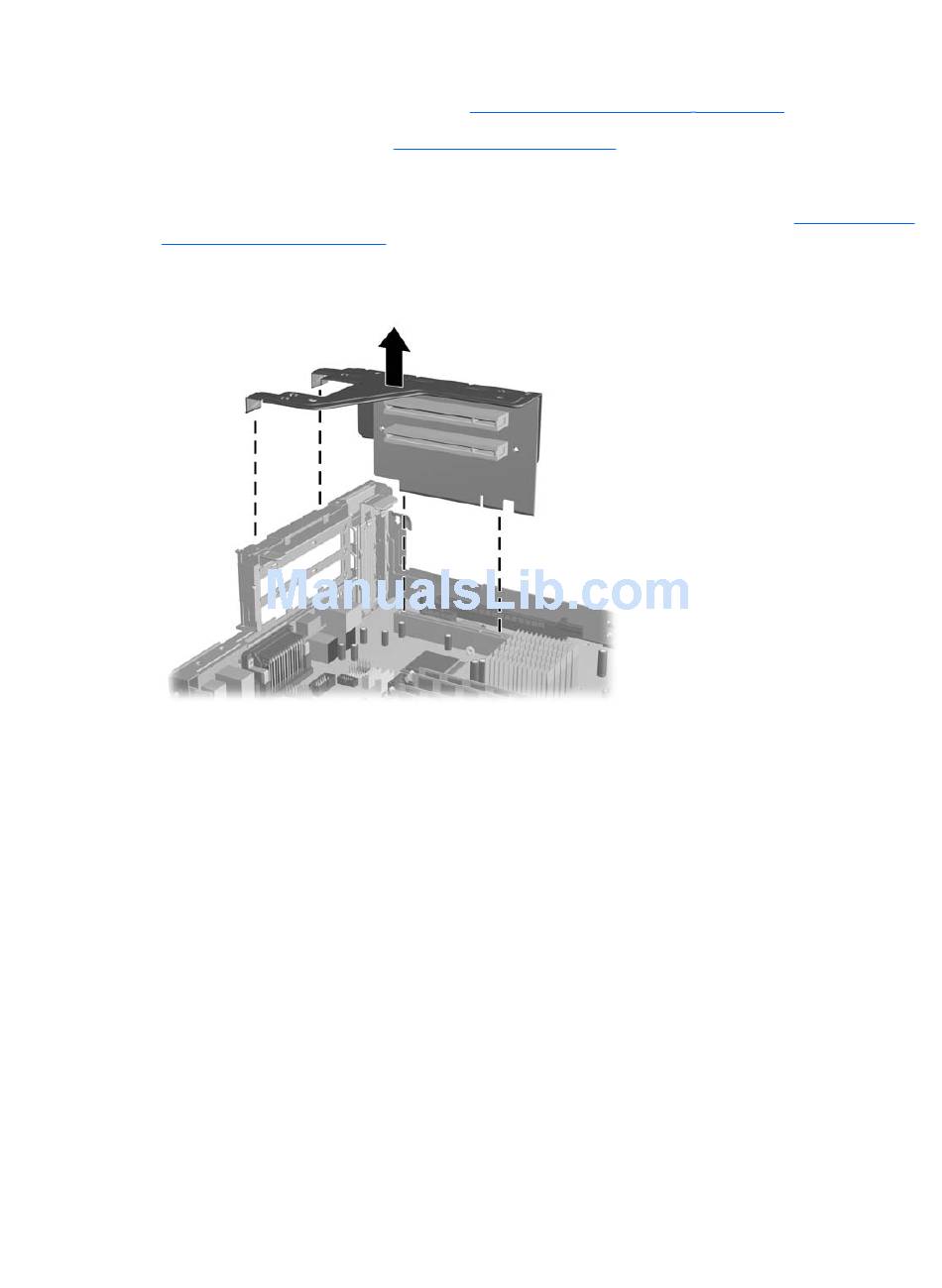

Figure 7-30
To install the card cage, reverse the removal procedure.
